A long screw is not just a thread between a motor and a nut. It is also a rotating shaft, an axially loaded column and a thermally expanding machine member. Bearings at its ends determine where radial load, thrust and bending reaction enter the frame. Unsupported length and root diameter influence both rotational vibration and compression stability. A screw that passes a nut life calculation can therefore still be unusable because its shaft speed, buckling capacity, bearing arrangement or alignment is wrong.
Fixed and supported describe bearing functions
In screw-drive terminology, a fixed end is arranged to locate the screw axially and react thrust as well as radial load and bending influence within its design. It often uses an angular-contact bearing pair or another specified thrust-capable arrangement. A supported or floating end commonly provides radial support while permitting the axial movement needed for assembly tolerance or thermal growth. These are functional descriptions; they do not identify an interchangeable housing or guarantee a particular preload.
Diagram description

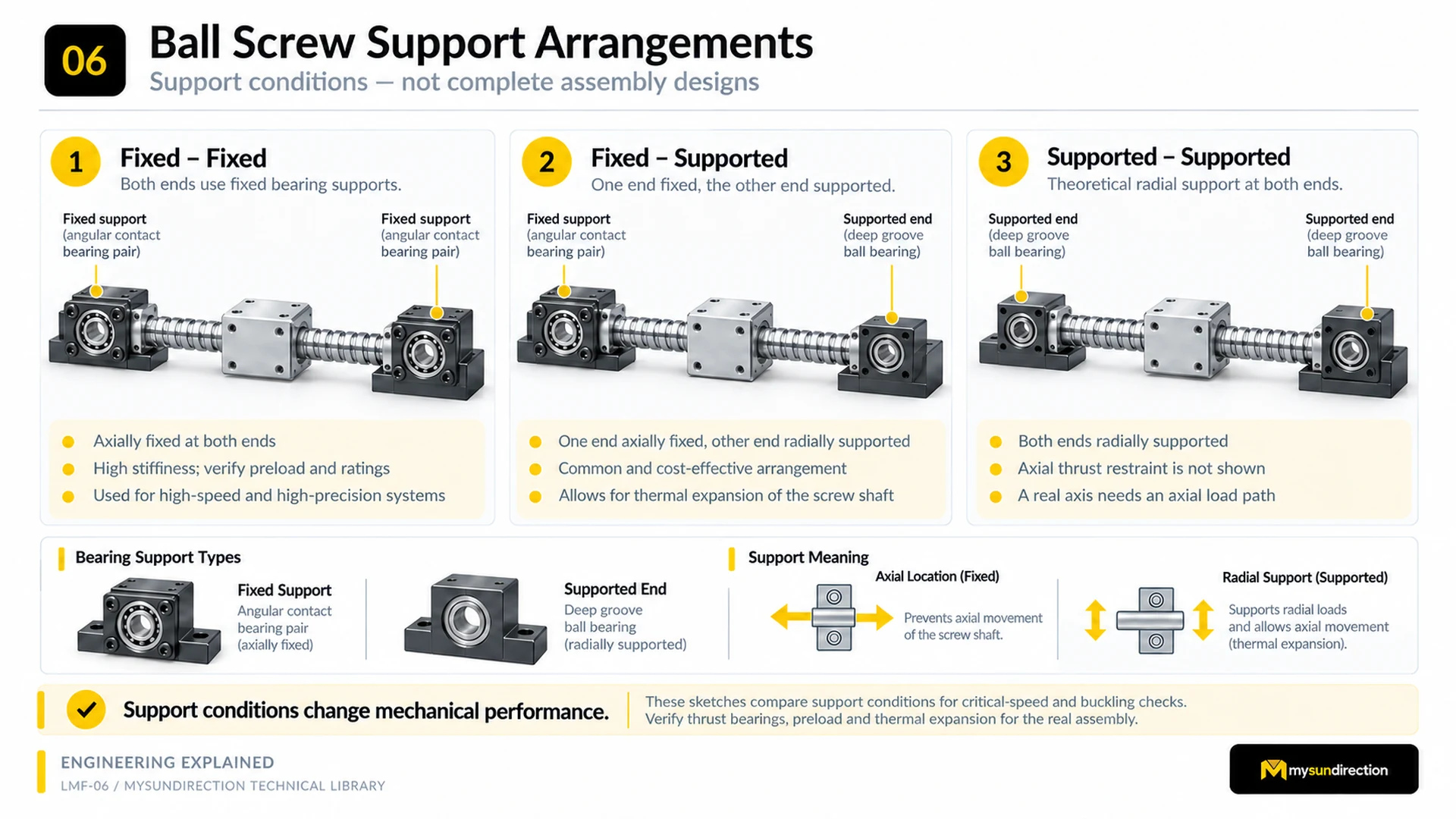

Three upper panels show a screw and nut between end blocks. The first has angular-contact bearing pairs at both ends, the second a fixed bearing pair at one end and deep-groove radial support at the other, and the third radial supports at both ends. Lower diagrams explain axial location at a fixed end and radial support with permitted axial movement at a supported end. Notes warn that the supported-supported sketch lacks a shown axial thrust path.
| Model | Useful characteristic | Design issue that remains |
|---|---|---|
| Fixed-free | Simple and compact at the free end | Lowest restraint model; overhung length strongly limits critical speed and compression capacity |
| Supported-supported | Radial support at both ends | A complete assembly still needs a defined axial thrust path and thermal strategy |
| Fixed-supported | Axial location at one end with radial support and potential thermal accommodation at the other | Supported-end fit must permit intended movement without losing radial control |
| Fixed-fixed | Strong end restraint can raise critical-speed and buckling capacity in the ideal model | Bearing spacing, axial preload, thermal expansion and housing alignment must be engineered together |
Critical speed is a shaft resonance problem
A rotating screw has bending natural frequencies. When rotational excitation approaches a critical frequency, small straightness, balance or alignment errors can drive large lateral vibration. The shaft may bow dynamically, creating noise, heat, bearing load, position disturbance and damage. Critical speed depends strongly on unsupported length, root diameter and end restraint; installation straightness, nut position and other details can affect real behavior.
Diagram description

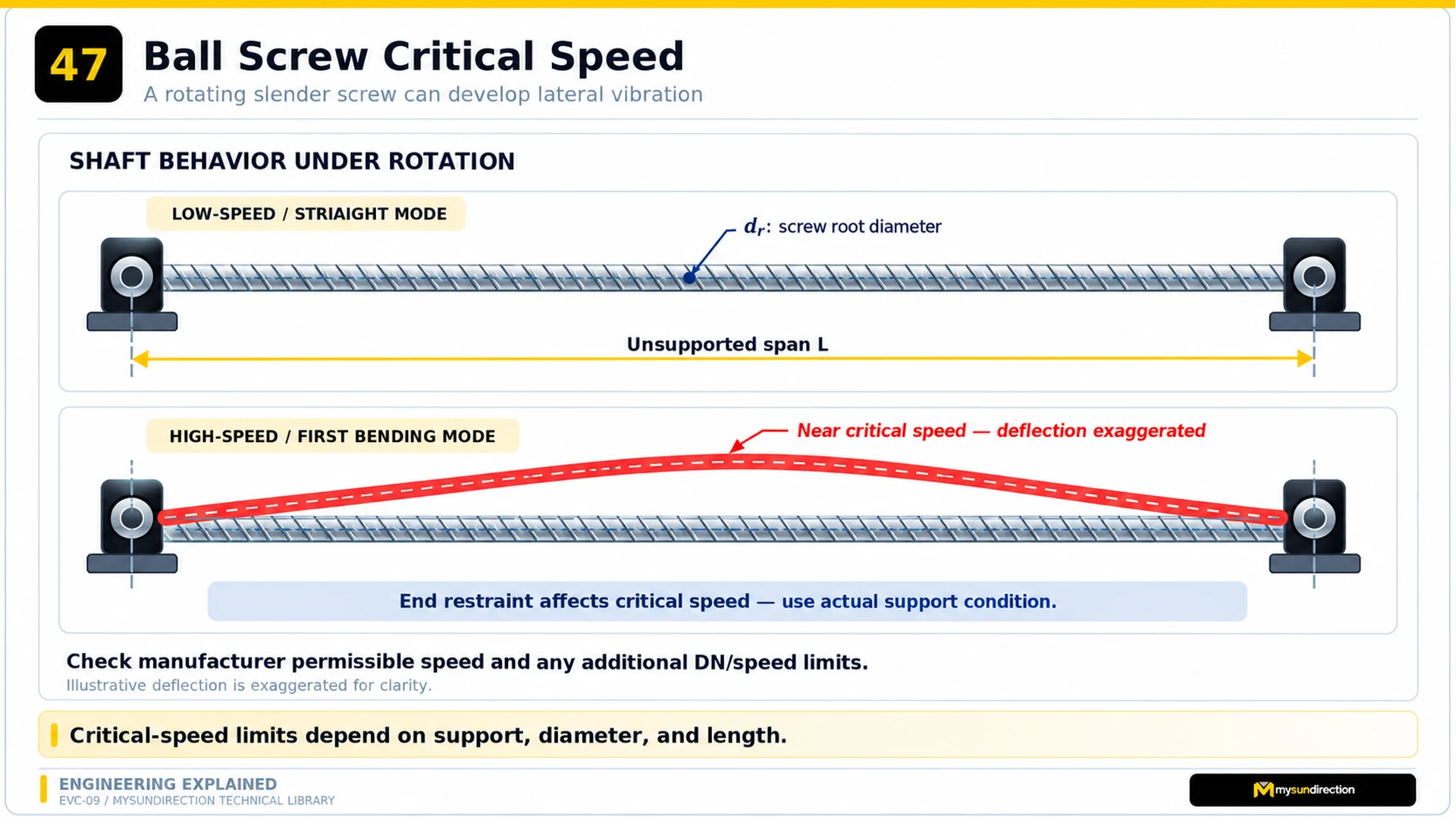

The upper drawing shows a straight screw between two bearings and labels root diameter d sub r and unsupported span L. The lower drawing overlays a red bowed first-mode shape between the same supports and identifies operation near critical speed. A note says the deflection is exaggerated and instructs the reader to check manufacturer speed and DN limits.
Critical-speed scaling for a uniform circular shaft
ncr ∝ kₙ × dᵣ ÷ L²
This proportional relationship communicates sensitivity only. The coefficient and units depend on the selected manufacturer's formula, material assumptions and support model. Use actual root diameter and the defined unsupported length, then apply the manufacturer's permitted-speed margin.
- ncr
- calculated critical rotational speed
- kₙ
- factor representing the specified end-restraint condition and formula convention
- dᵣ
- screw root diameter
- L
- unsupported screw length used by the selected method
With diameter and end condition unchanged, doubling the unsupported length reduces this ideal critical-speed scale to one quarter. Halving length raises it by a factor of four.
Critical speed is not the only speed limit. The ball nut has a maximum permissible speed related to ball circulation, commonly expressed by a product-specific DN-type limit, and seals, lubricant, support bearings, motor and coupling also have limits. Calculate operating screw rpm from the travel requirement and lead, then compare it with every applicable limit. Use the lowest permitted value.
Required rotational speed from travel speed
n = v ÷ Ld
Use consistent units. If travel speed is in millimetres per minute and lead is millimetres per revolution, the result is revolutions per minute. This is a required kinematic speed, not a permitted rating.
- n
- required relative rotational speed
- v
- required linear travel speed
- Ld
- screw lead, or travel per revolution
A carriage speed of 12,000 mm/min with a 10 mm/rev lead requires 1,200 rpm. That rpm must be below the approved shaft, nut, bearing and drive limits.
Compression can destabilize a slender screw
A tensile load stretches a screw along its axis; a compressive load pushes along the axis and can make a long slender screw bow sideways. Elastic column buckling can occur below the material's simple compressive yield load, so a stress-only area calculation is not sufficient. The relevant unsupported length, smallest effective section and end restraint dominate the ideal column capacity. Eccentric load, initial straightness, threads, joints and dynamic effects reduce how closely a real assembly follows the ideal model.
Diagram description

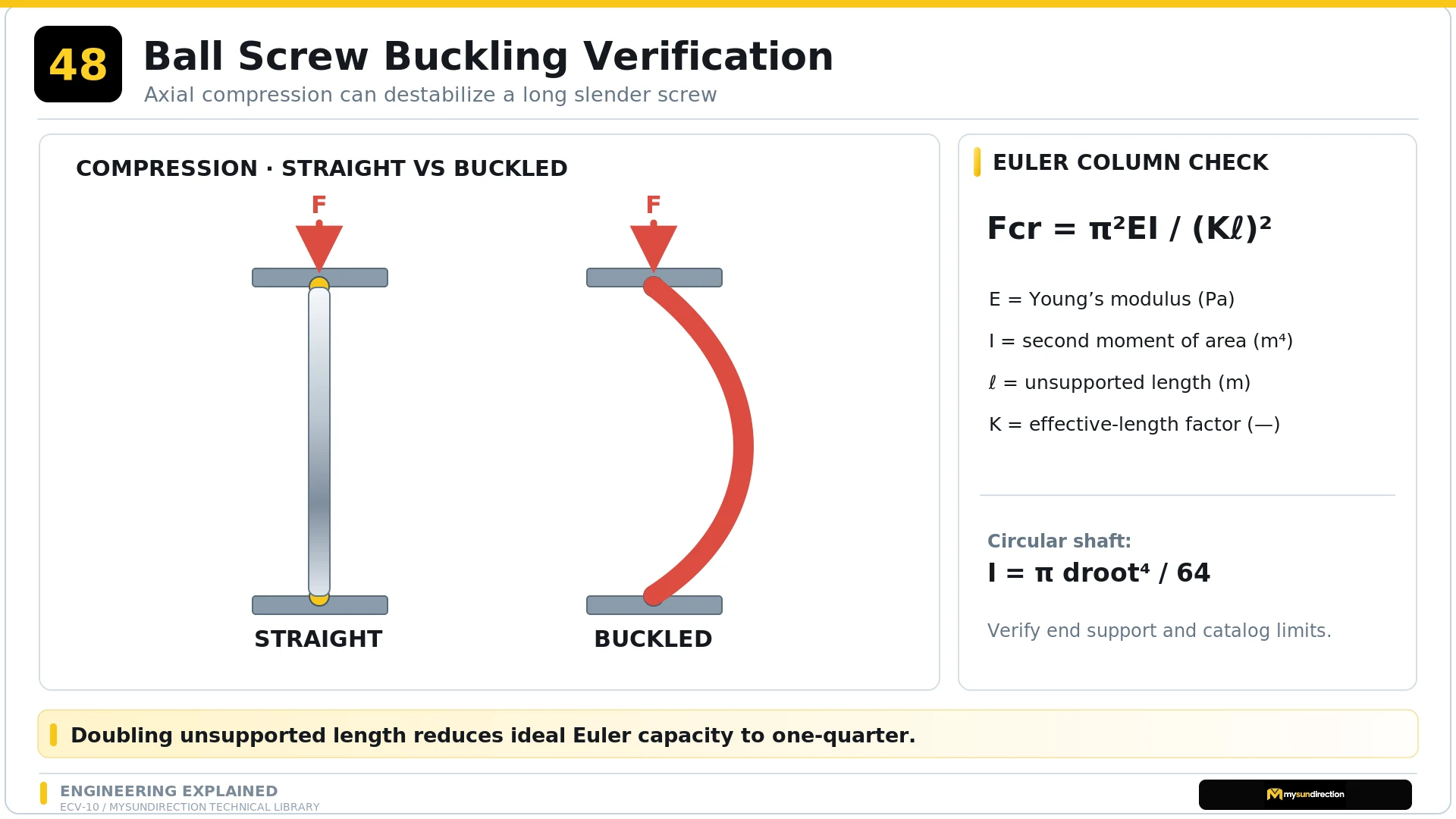

The left panel compares a straight vertical member under force F with a red bowed buckled shape under the same axial direction. The right panel gives F critical equals pi squared E I divided by effective length K times l squared, defines Young's modulus, second moment of area, unsupported length and effective-length factor, and shows I equals pi times root diameter to the fourth divided by 64.
Ideal Euler buckling load
Fcr = π² × E × I ÷ (K × ℓ)²
Euler's expression describes an ideal slender, straight, elastic column with idealized end conditions and centered load. It is a teaching and preliminary-analysis tool. Use the screw manufacturer's allowable compression method, root diameter, unsupported length, end factors and safety margin for selection.
- Fcr
- ideal elastic critical buckling load
- E
- Young's modulus of the shaft material
- I
- second moment of area of the effective shaft section
- K
- effective-length factor for the modeled end condition
- ℓ
- unsupported physical length
With material, section and end condition unchanged, doubling unsupported length makes the ideal Euler load one quarter as large. The actual permissible load must be lower according to the selected product method.
Solid circular-section inertia
I = π × dᵣ⁴ ÷ 64
For a first ideal estimate, use the relevant minimum effective diameter, commonly associated with the screw root, rather than nominal outside diameter. Threads and product geometry require the manufacturer's definition.
- I
- second moment of area
- dᵣ
- effective screw root diameter
The fourth-power dependence makes diameter influential: increasing the effective diameter by 20 percent multiplies ideal I by about 1.2⁴ = 2.07, before other limits are considered.
Tension avoids buckling—but not every other limit
Arranging the dominant working load so that it places the screw in tension can remove column buckling from that load case. The screw still needs checks for tensile stress, nut static and dynamic capacity, supports, joints, fatigue, critical speed, alignment and travel. Direction reversal or another machine state may also put it back into compression.
Never rearrange a load path solely to improve a formula without assessing the surrounding structure. Bearing supports and housings must carry the resulting thrust, and a vertical axis needs a controlled response to power loss.
A correct calculation can be defeated by installation and contamination
Practical controls around a long screw
- Alignment.Align bearing housings, screw journals, nut housing and guide path to the selected tolerances. A bent screw or forced misalignment can create vibration below the ideal critical speed.
- Lubrication.Use the approved lubricant, quantity and interval. Consider duty, temperature, speed, mounting orientation and compatibility with previous lubricant.
- Contamination protection.Select wipers, seals, bellows or covers appropriate to chips, dust, moisture and process fluid. Keep cover design from trapping abrasive debris against the screw.
- Thermal growth.Define where axial growth is permitted or deliberately preloaded. Heat from motion, ambient change and nearby processes can change length and bearing load.
- Travel envelope.Reserve room for the nut, supports, seals, covers, limit-switch action and stopping distance. Do not use the bearing or nut as the normal end stop.
- Inspection.Monitor unusual noise, vibration, temperature, lubricant condition, cover damage, support looseness and position change. Investigate trends before increasing speed.
Verify the shaft, bearings and nut as one system
A traceable long-screw review
- 1. Define all operating cases.Record stroke, maximum screw rpm, acceleration, axial load in both directions, orientation, duty, temperature, life and credible impacts or emergency stops.
- 2. Draw the actual bearing functions.Show which bearing reacts thrust, which provides radial support, where axial movement can occur and how each housing transfers reactions to the frame.
- 3. Establish calculation lengths.Use the selected manufacturer's definitions for unsupported span and distances between mounting surfaces. The length for speed may differ from the length for compression.
- 4. Check speed limits.Calculate required rpm, shaft critical speed, nut DN or circulation limit, bearing speed, coupling and motor limits. Apply the manufacturer's operating margin.
- 5. Check axial loads.Verify compression buckling, permissible tensile/compressive shaft load, nut static and dynamic ratings, bearing thrust capacity and life for every load direction.
- 6. Check thermal and assembly states.Evaluate bearing preload, shaft temperature, housing tolerance, installation sequence and whether growth changes thrust or alignment.
- 7. Commission below full demand.Start at controlled speed and load while measuring vibration, noise, temperature, current and position. Increase only after protective functions and trends are acceptable.
The screw mechanism and lead choices are introduced in Lead Screw Versus Ball Screw, while Inside a Ball Screw explains the recirculating assembly. Here the decisive idea is that length, diameter and support turn the screw into a structural and dynamic component. Protecting that component means respecting its lowest load and speed limit and preserving the installation conditions on which those limits depend.
