Gear Ratio, Speed and Torque in Real Machines
Relate speed reduction to available output torque and compare drive layouts.
You need to size or verify a real system using “Gear Ratio, Speed and Torque in Real Machines”, with units, duty and limits that match the application.
Calculate reduction ratio, output speed and torque with efficiency; understand multi-stage ratios, heat, backlash and reflected inertia; and compare direct, geared and belt-driven screw layouts as complete systems.
- Select or check first
- 1. Start at the load. Define output speed, torque-versus-time, inertia, accuracy, holding and fault needs at the mechanism—not at the motor.
- Controlling assumption
- Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
- Top risk
- Do not use one efficiency number everywhere. Efficiency varies with mechanism, stage count, lubricant, mounting position, speed, load, temperature and direction. Low-load efficiency can differ materially from rated-load behavior, and a back-driven path may not match the forward path.
- Proof
- 6. Validate real behavior. Commission at controlled energy and measure speed, torque proxy/current, temperature, vibration, backlash and process performance across representative cycles.
Start with the basics Optional foundation before “Gear Ratio, Speed and Torque in Real Machines”
Mechanical-design basics
Mechanical parts must carry loads, guide motion and remain aligned; similar-looking components can behave very differently under real force and duty.
- Force and torque
- Force pushes or pulls along a line. Torque is a turning effect equal to force multiplied by its perpendicular lever arm.
- Speed and acceleration
- Speed describes how fast position changes. Acceleration describes how fast speed changes and often creates the highest inertial load.
- Strength and stiffness
- Strength concerns permanent damage or failure. Stiffness concerns elastic deflection under load; a part can be strong enough yet too flexible for accurate motion.
- Load path
- The load path is the complete route by which force travels through shafts, bearings, fasteners, frames and foundations. Every interface on that route must be checked.
- Tolerance, clearance and alignment
- Tolerance permits controlled variation, clearance provides intentional space, and alignment keeps interacting axes or surfaces in the required relationship.
How to use this article: Sketch the load path and motion direction first, then attach units, worst-case loads, duty and acceptance limits to every calculation.
On this page
A reduction gearbox lets a faster input drive a slower output while making more output torque available from the same input torque. The word “available” matters: output torque is limited by input power, efficiency, gear and shaft strength, bearing loads, heat and the gearbox's rated duty. Ratio alone cannot approve a drive. The motor, gearbox, coupling, screw or other load and controls must meet speed, torque, accuracy, inertia and lifecycle requirements together.
Define ratio before using it

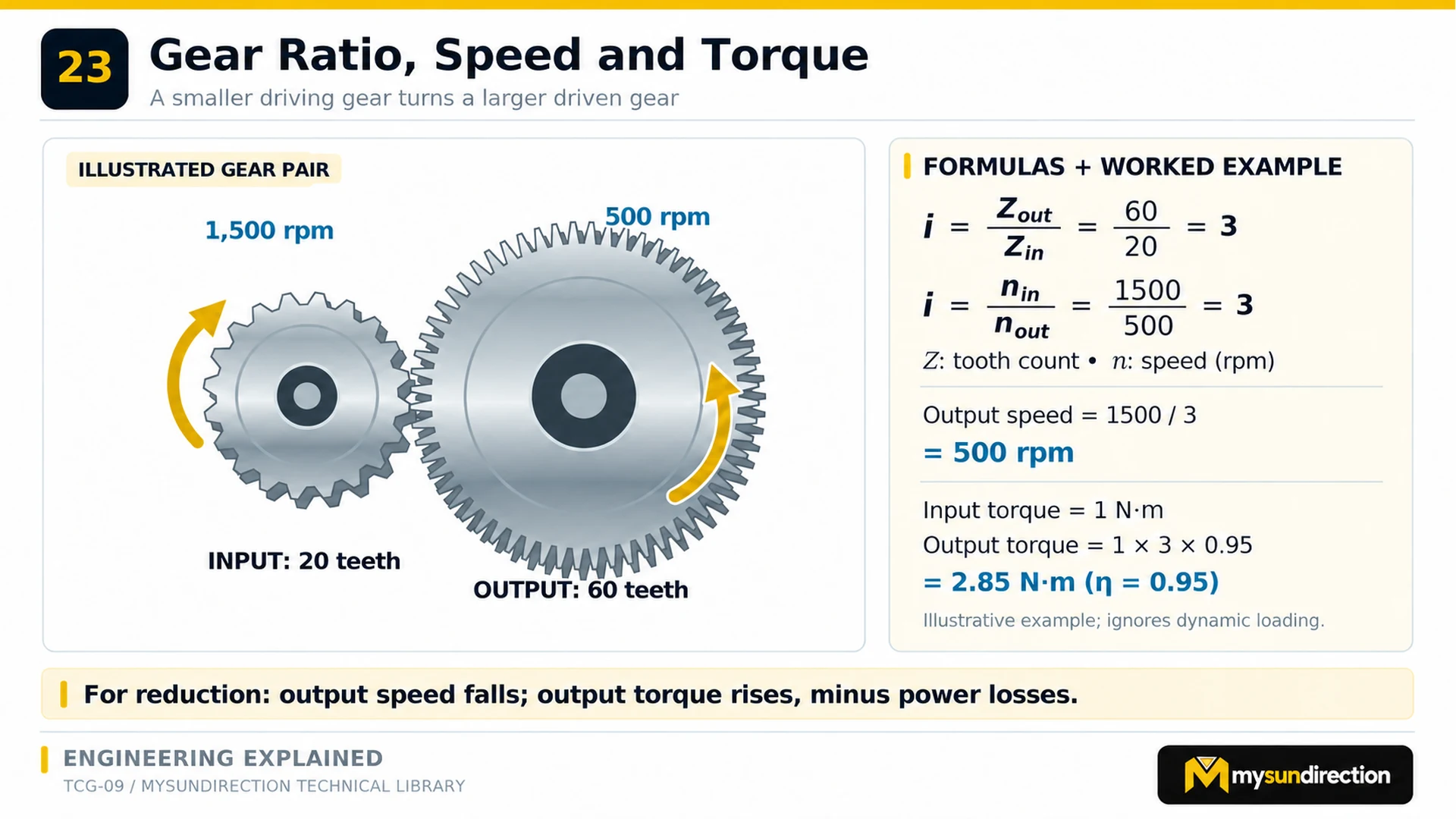

Diagram description
A small input gear marked 20 teeth and 1,500 rpm meshes with a larger output gear marked 60 teeth and 500 rpm. Equations show a ratio of three and an example 1 N·m input becoming 2.85 N·m after an assumed efficiency.
Reduction ratio and output speed
i = nin / nout = Zout / Zin; nout = nin / i
The tooth-count equality applies to the simple illustrated pair. Planetary, compound, worm and other arrangements use their own kinematic relations. Confirm the manufacturer's ratio convention.
- i
- reduction ratio, dimensionless
- nin
- input rotational speed, for example rpm
- nout
- output rotational speed, in the same unit
- Zin
- teeth on the simple input gear
- Zout
- teeth on the simple output gear
For 1,500 rpm into a 3:1 reducer, output speed is 1,500 / 3 = 500 rpm. Two external gears also reverse rotation direction; an idler or additional stage can change direction without changing the magnitude relation in a simple train.
Real output torque estimate
Tout = Tin × i × η
Use an efficiency appropriate to the exact gearbox and operating point. This power-based estimate does not override catalog limits for continuous, peak, tooth, shaft, key, bearing or thermal capacity.
- Tout
- output torque, N·m
- Tin
- input torque, N·m
- i
- reduction ratio
- η
- gearbox efficiency as a fraction between zero and one
With 1 N·m input, i = 3 and η = 0.95, the estimate is 2.85 N·m. The corresponding output power is lower than input power because five percent is lost under that assumed condition.
Multiply stage ratios—and account for each stage's losses
For independent reduction stages in series, the total ratio is the product of stage ratios. In a two-stage 3:1 then 4:1 train, the total reduction is 12:1. Approximate total efficiency is also the product of the applicable stage efficiencies, not their sum. Real planetary or compound trains may share members and require the manufacturer's kinematic relation rather than simple stage multiplication. Use the exact ratio from the selected gearbox because nominal and exact ratios can differ.
Series-stage ratio and efficiency
itotal = i1 × i2 × …; ηtotal = η1 × η2 × …
This structure is useful for ordinary cascaded stages. Confirm the architecture, definition and operating-point efficiency of the actual unit.
- itotal
- overall reduction ratio
- i1, i2
- individual stage ratios
- ηtotal
- overall efficiency estimate
- η1, η2
- individual stage efficiencies
If two stages are each assumed 0.97 efficient, their combined estimate is 0.97 × 0.97 ≈ 0.941, or 94.1%, before other drivetrain losses.
Direct and geared drives place the motor at different operating points

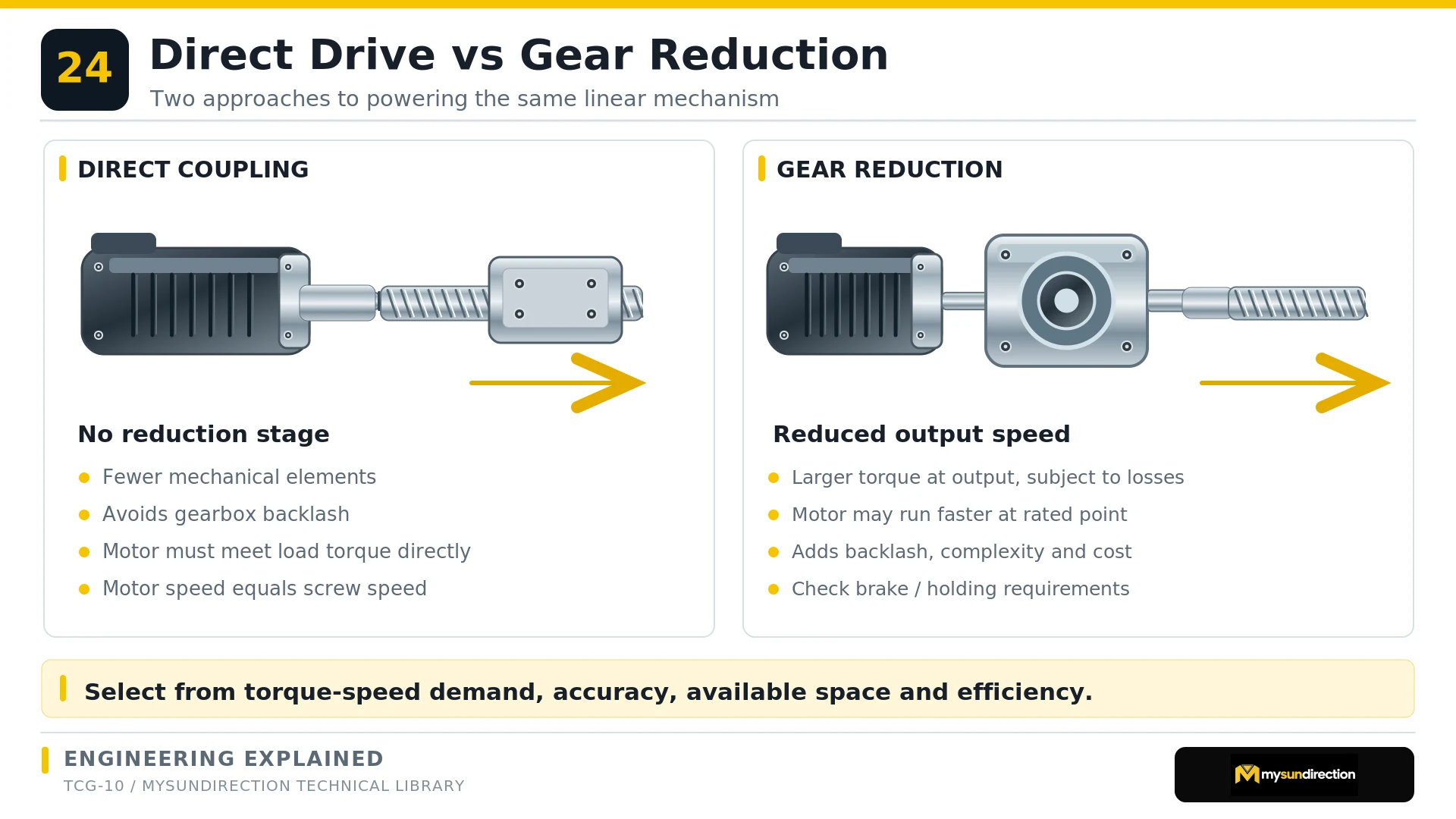

Diagram description
The left panel shows motor, coupling and screw in line. The right adds a square gearbox between motor and screw. Notes compare part count, speed, output torque, backlash, cost and holding requirements.
| Question | Direct connection | Reduction gearbox |
|---|---|---|
| Motor speed and torque | Motor and driven shaft speeds match; motor supplies load torque through coupling/drive efficiency | Motor runs ratio times the output speed and supplies lower ideal torque for a given output torque |
| Mechanical elements | Fewer interfaces and no gearbox gear mesh | Adds gears, bearings, housing, lubricant, input and output interfaces |
| Positioning | Avoids gearbox backlash but still has coupling, screw, bearing and structural compliance | Backlash and torsional stiffness depend on gearbox type, preload, wear and load |
| Inertia at motor | Load inertia is seen without ratio reduction | Output-side rotational inertia reflected to the input is approximately divided by ratio squared, subject to the system model |
| Holding and back-drive | Depends on motor brake and driven mechanism | Depends on gearbox and load; ratio or worm friction is not a safety brake |
| Thermal and lifecycle | Motor may need higher torque at lower speed | Gearbox loss creates heat and adds lubricant, seal and wear maintenance |
| Packaging | Often shortest part chain but requires in-line axial room | Coaxial, offset or right-angle products can reshape the envelope |
First estimate of output inertia reflected to the input
Jref = Jout / i²
Add motor-side, gearbox and other inertias at the correct shaft, and account for efficiency and compliance using the drive maker's method. Translational mass must first be converted through the screw, pulley or mechanism geometry.
- Jref
- output-side rotational inertia referred to the input, kg·m²
- Jout
- rotational inertia at the output shaft, kg·m²
- i
- reduction ratio
An output inertia of 0.12 kg·m² through a 4:1 ideal reduction reflects as 0.12 / 16 = 0.0075 kg·m² at the input, before adding gearbox and motor-side inertia.
The same ratio can be packaged in different drive trains

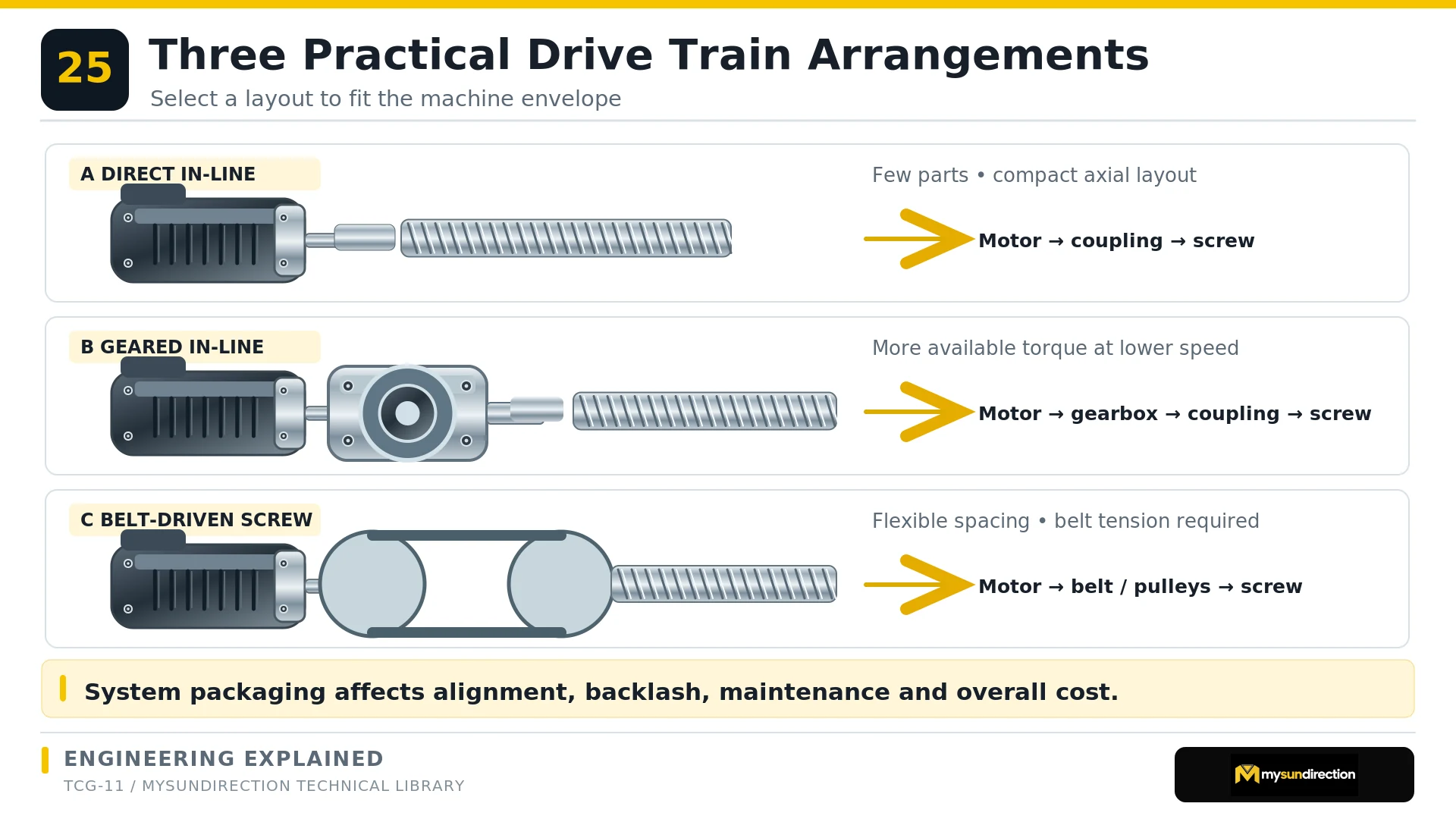

Diagram description
Three horizontal diagrams connect a motor to a screw. The first uses only a coupling, the second adds an in-line gearbox, and the third uses two large pulleys and a belt to offset the motor below or beside the screw.
| Layout | Useful feature | Additional checks |
|---|---|---|
| Direct in-line | Few components and no reduction stage | Motor torque/speed fit, coupling alignment, axial envelope, critical screw speed and support bearings |
| Geared in-line | Moves motor toward a faster/lower-torque point and can add ratio compactly | Gearbox duty, backlash, stiffness, heat, lubrication, mounting and both interfaces |
| Synchronous belt and pulleys | Offsets/folds the drive and selects ratio through pulley tooth counts | Belt rating, wrap, tension, alignment, tooth engagement, shaft/bearing loads, guarding and tension access |
A toothed synchronous belt can transfer a defined ratio without the normal running slip of a friction belt, but the belt and teeth still deform under load. Installation tension and transmitted force load the pulley shafts and bearings. Too little tension can permit tooth ratcheting; too much can increase bearing load and shorten life. Use the selected belt manufacturer's sizing and tension procedure, including pulley diameter, belt width, wrap, speed, duty and environment.
Verify every interface and load condition

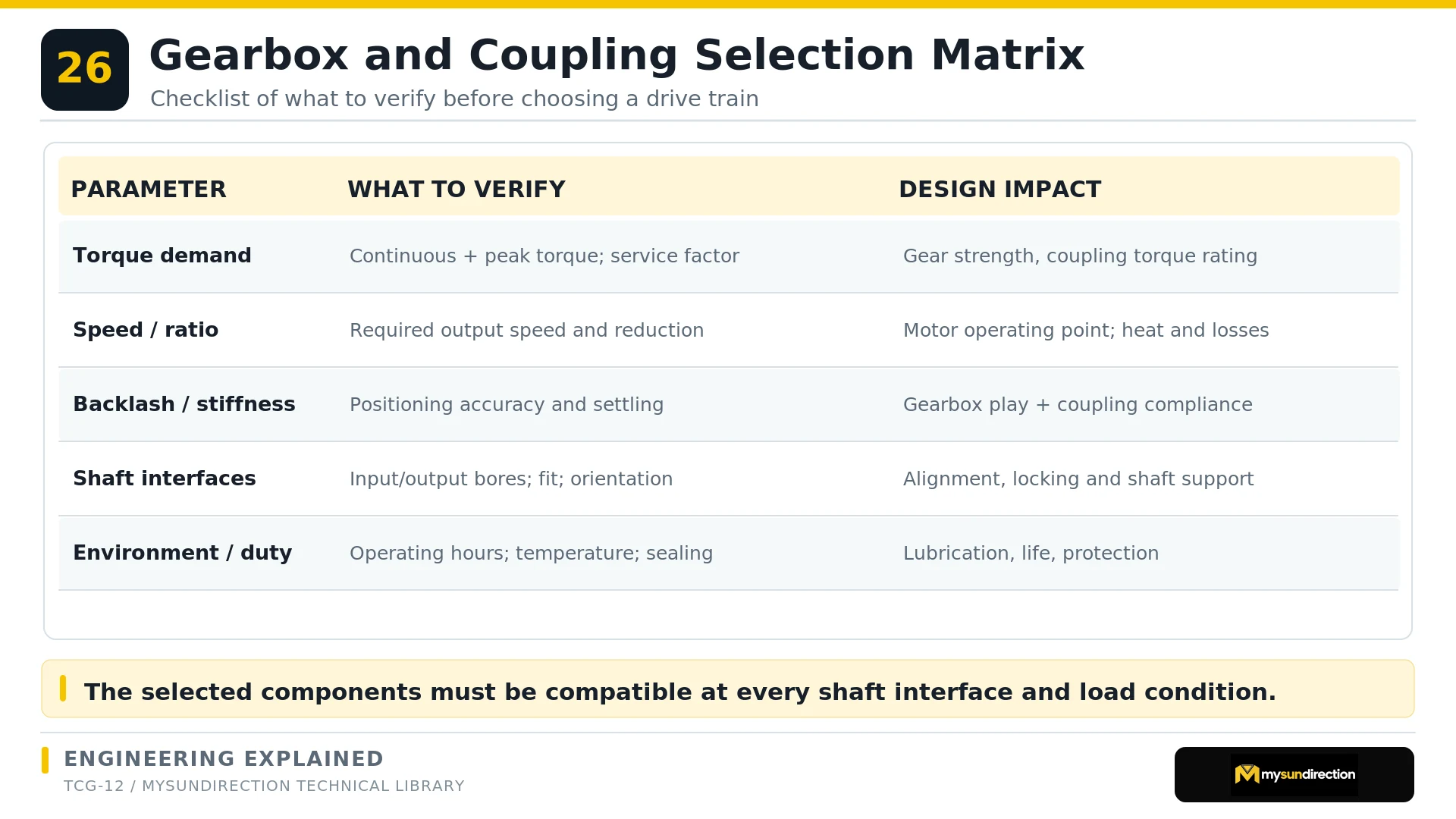

Diagram description
A three-column table maps five parameters to what should be verified and the likely design impact, ending with a reminder that components must be compatible at each interface and load condition.
| Area | Inputs | Pass evidence |
|---|---|---|
| Kinematics | Output travel/speed, motor range, exact ratio, direction and overspeed | Every motion segment remains within motor, gearbox and driven-mechanism limits |
| Torque and power | Continuous/effective, acceleration, reversal, peak, jam and efficiency | Motor curve, gear/coupling ratings, shaft/key checks and thermal duty pass |
| Dynamics | Motor, gearbox, coupling and load inertia; stiffness, backlash and damping | Stable control, acceptable settling and output error across load and wear |
| Interfaces | Bores, keys/splines, pilots, flanges, coupling, alignment and external loads | Fits and load reactions are compatible with exact drawings |
| Environment | Temperature, altitude, contamination, washdown, corrosion and mounting position | Protection, seals, lubricant, ventilation and derating are documented |
| Lifecycle | Hours, cycles, starts, reversal, inspection, lubrication and replacement | Required life and maintainability pass with responsible owners |
| Safety | Guards, vertical load, overspeed, brake, stops, isolation and failure modes | Risk controls are verified independently of normal motion control |
Select a ratio without losing the machine
- 1. Start at the load.Define output speed, torque-versus-time, inertia, accuracy, holding and fault needs at the mechanism—not at the motor.
- 2. Generate feasible ratios.Translate output speed and torque to the motor side with efficiency and compare with the motor's continuous and peak speed–torque envelope.
- 3. Check the gearbox itself.Verify exact ratio, input speed, output/effective/peak torque, service method, bearings, external loads, backlash, stiffness and thermal capacity.
- 4. Check dynamics and controls.Reflect inertia to a common shaft, include compliance and backlash, and evaluate acceleration, regeneration, settling and feedback location.
- 5. Compare packaging alternatives.Evaluate direct, geared, belt or right-angle layouts for space, alignment, shaft loads, guards, service and total loss.
- 6. Validate real behavior.Commission at controlled energy and measure speed, torque proxy/current, temperature, vibration, backlash and process performance across representative cycles.
Use Inside a Gearbox to identify the mechanism and supporting power path, and Selecting a Complete Linear Axis to place ratio inside the full requirements worksheet. The winning ratio is not the one that produces the largest calculated torque; it is the one that keeps the motor, transmission, load, controls, heat and safety inside their verified envelopes.
Selection boundary and evidence to keep with the decision
Treat “Gear Ratio, Speed and Torque in Real Machines” as a selection problem, not only a definition. Record the required result, alternatives considered, the controlling assumption and the condition that would change the choice.
Keep evidence proportional to consequence: 6. Validate real behavior. Commission at controlled energy and measure speed, torque proxy/current, temperature, vibration, backlash and process performance across representative cycles. Revisit the decision when the load, environment, duty, interface, regulation or maintenance plan changes.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Gear Ratio, Speed and Torque in Real Machines?
1. Start at the load. Define output speed, torque-versus-time, inertia, accuracy, holding and fault needs at the mechanism—not at the motor.
Which assumption can change the conclusion?
Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
What can go wrong if I copy the example directly?
Do not use one efficiency number everywhere. Efficiency varies with mechanism, stage count, lubricant, mounting position, speed, load, temperature and direction. Low-load efficiency can differ materially from rated-load behavior, and a back-driven path may not match the forward path.
How do I verify the result in the real system?
6. Validate real behavior. Commission at controlled energy and measure speed, torque proxy/current, temperature, vibration, backlash and process performance across representative cycles.
