DC, Stepper and Servo Motors: Which One Fits?
Understand industrial motor categories through actual application needs.
You must choose between real alternatives covered by “DC, Stepper and Servo Motors: Which One Fits?” for a defined machine, circuit or installation.
Compare brushed and brushless DC, geared motors, steppers, AC induction motors and servo systems by torque-speed behavior, feedback, positioning, duty, drive electronics, environment and complete application requirements.
- Select or check first
- 1. Describe the load cycle. Start at the mechanism and calculate torque, speed, inertia and duration for acceleration, running, holding, reversal, stop and credible fault cases.
- Controlling assumption
- Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
- Top risk
- Do not compare stepper holding torque with servo rated torque as if they were identical. Holding, pull-out, continuous or rated, intermittent and peak torque describe different conditions.
- Proof
- 6. Test the complete axis. Commission progressively and measure current or torque estimate, temperature, position error, vibration, settling and response to defined disturbances.
Start with the basics Optional foundation before “DC, Stepper and Servo Motors: Which One Fits?”
Mechanical-design basics
Mechanical parts must carry loads, guide motion and remain aligned; similar-looking components can behave very differently under real force and duty.
- Force and torque
- Force pushes or pulls along a line. Torque is a turning effect equal to force multiplied by its perpendicular lever arm.
- Speed and acceleration
- Speed describes how fast position changes. Acceleration describes how fast speed changes and often creates the highest inertial load.
- Strength and stiffness
- Strength concerns permanent damage or failure. Stiffness concerns elastic deflection under load; a part can be strong enough yet too flexible for accurate motion.
- Load path
- The load path is the complete route by which force travels through shafts, bearings, fasteners, frames and foundations. Every interface on that route must be checked.
- Tolerance, clearance and alignment
- Tolerance permits controlled variation, clearance provides intentional space, and alignment keeps interacting axes or surfaces in the required relationship.
How to use this article: Sketch the load path and motion direction first, then attach units, worst-case loads, duty and acceptance limits to every calculation.
On this page
Choosing a motor begins with the load and motion, not with a favorite motor family. The useful questions are how fast the mechanism must move, how much torque it needs throughout the cycle, how accurately it must stop or follow a path, how long it runs, what happens after a disturbance, and what environment and power supply are available. Motor, drive electronics, feedback, transmission, controls and thermal path form one system. A motor family only narrows the search.
Recognize the family, then inspect the exact system

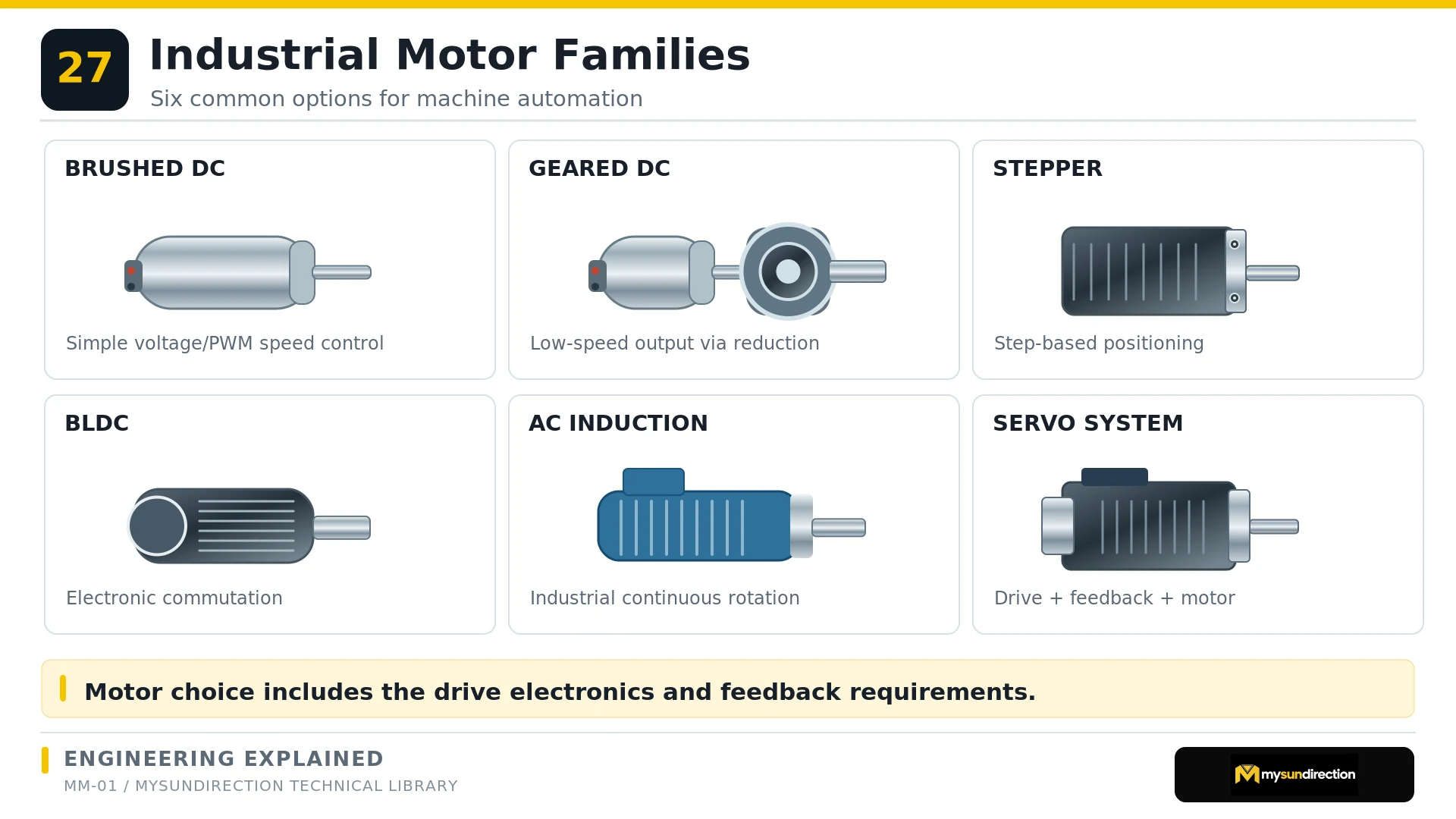

Diagram description
A two-row gallery shows simplified motor bodies. Captions associate brushed DC with voltage or PWM control, geared DC with reduction, stepper with step-based positioning, BLDC with electronic commutation, induction with continuous industrial rotation and servo with drive and feedback.
| Family | Basic operating idea | Selection consequences |
|---|---|---|
| Brushed DC | Mechanical brushes and commutator switch armature current | Simple drive options and broad speed control, with brush wear, electrical noise, heat and maintenance to consider |
| Geared DC | A DC motor drives an attached reduction gearbox | Lower output speed and more available output torque, but adds efficiency loss, backlash, shaft limits and gearbox life |
| Stepper | Phases are energized in sequence to create discrete commanded increments | Often operated without position feedback, with strong low-speed behavior but falling torque, resonance and possible loss of synchronism to manage |
| Brushless DC | Electronic commutation uses rotor-position information or estimation | No brushes, broad speed capability and matched electronic drive required; control sophistication ranges widely |
| AC induction | A rotating stator field induces rotor currents and torque | Robust industrial continuous-duty options; variable-speed operation needs a suitable drive and motor application review |
| Servo system | Drive closes control loops using feedback | High dynamic performance is possible, but depends on matched motor, drive, feedback, mechanics, tuning and command architecture |
Control and feedback determine what the system knows

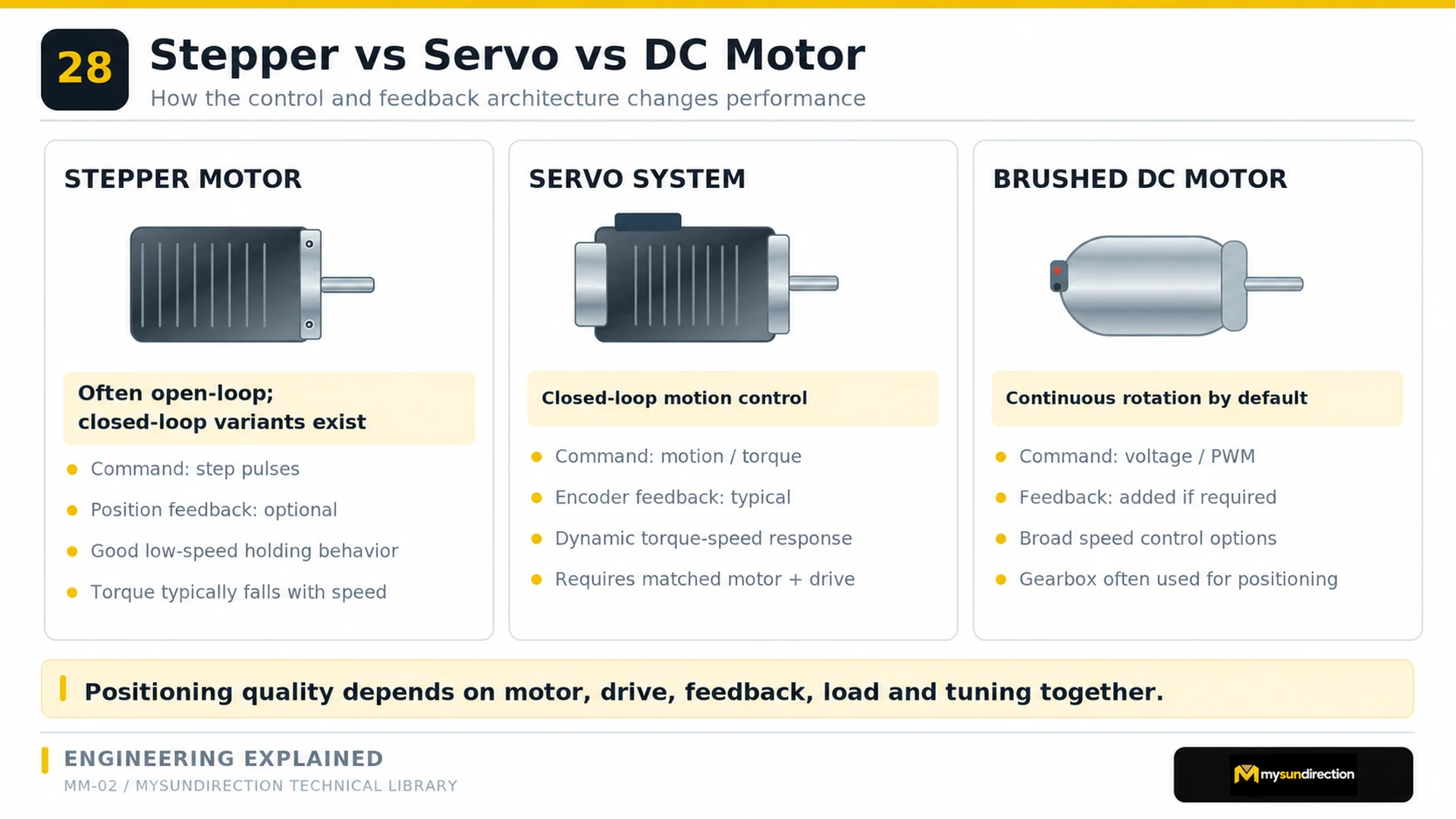

Diagram description
Three columns show a stepper described as often open-loop, a servo system with typical encoder feedback and a brushed DC motor with voltage or PWM control and optional feedback. A footer states that motor, drive, feedback, load and tuning work together.
An open-loop stepper drive counts commanded electrical steps but does not necessarily know whether the rotor or machine completed them. Adequate torque margin and a suitable acceleration profile keep the rotor synchronized under expected load, yet a jam or unexpected load can create position error. A closed-loop stepper adds sensing and fault response, but the exact controller may correct, alarm or switch control modes differently. Read its behavior rather than assuming it becomes identical to a conventional servo.
A servo drive compares command and feedback and continuously changes motor current to reduce error. Feedback may be motor-mounted, load-mounted or both. A motor encoder can report rotor motion while backlash, coupling wind-up, screw error or structural deflection remains unseen at the tool. High encoder resolution is therefore not the same as high machine accuracy. Servo stability and settling also depend on inertia, rigidity, resonances, sampling, filters and tuning.
| Question | Open-loop implication | Closed-loop implication |
|---|---|---|
| Did the motor move? | Inferred from command and adequate margin | Motor sensor can confirm rotor position or speed |
| Did the load reach position? | Not directly known | Only directly known if feedback observes the relevant load coordinate |
| Can overload be detected? | May infer from driver electrical behavior or external sensors | Following error, current or drive models can alarm, subject to thresholds and architecture |
| Will the system be accurate? | Depends on step angle, loading, mechanics and reference strategy | Depends on feedback resolution and accuracy plus mechanics, control and calibration |
| Is the axis safe? | No—normal control is not a complete safety function | No—ordinary feedback and servo control do not replace risk-based safety functions |
Compare usable torque over speed, not one headline value
Stepper motors can provide useful low-speed holding and running torque, but available torque usually falls as speed rises because winding inductance limits how quickly current changes. Resonance and load inertia can further constrain usable acceleration. A servo system often preserves rated torque across a wider speed range and may provide higher peak torque for limited time, but only inside its speed–torque curve, voltage, current, duty and thermal limits. A DC motor also has a speed–torque relation; stall torque is not a continuous operating rating.
Mechanical power links torque and speed
P = T × ω
This identity helps compare operating points. A high holding or stall torque at zero speed corresponds to zero mechanical output power, while current and heat may still be substantial.
- P
- mechanical output power, W
- T
- shaft torque, N·m
- ω
- shaft angular speed, rad/s
At zero speed, mechanical output power is zero even if a motor is producing holding torque. That does not mean electrical input or winding heating is zero.
Use the application to narrow—not dictate—the choice

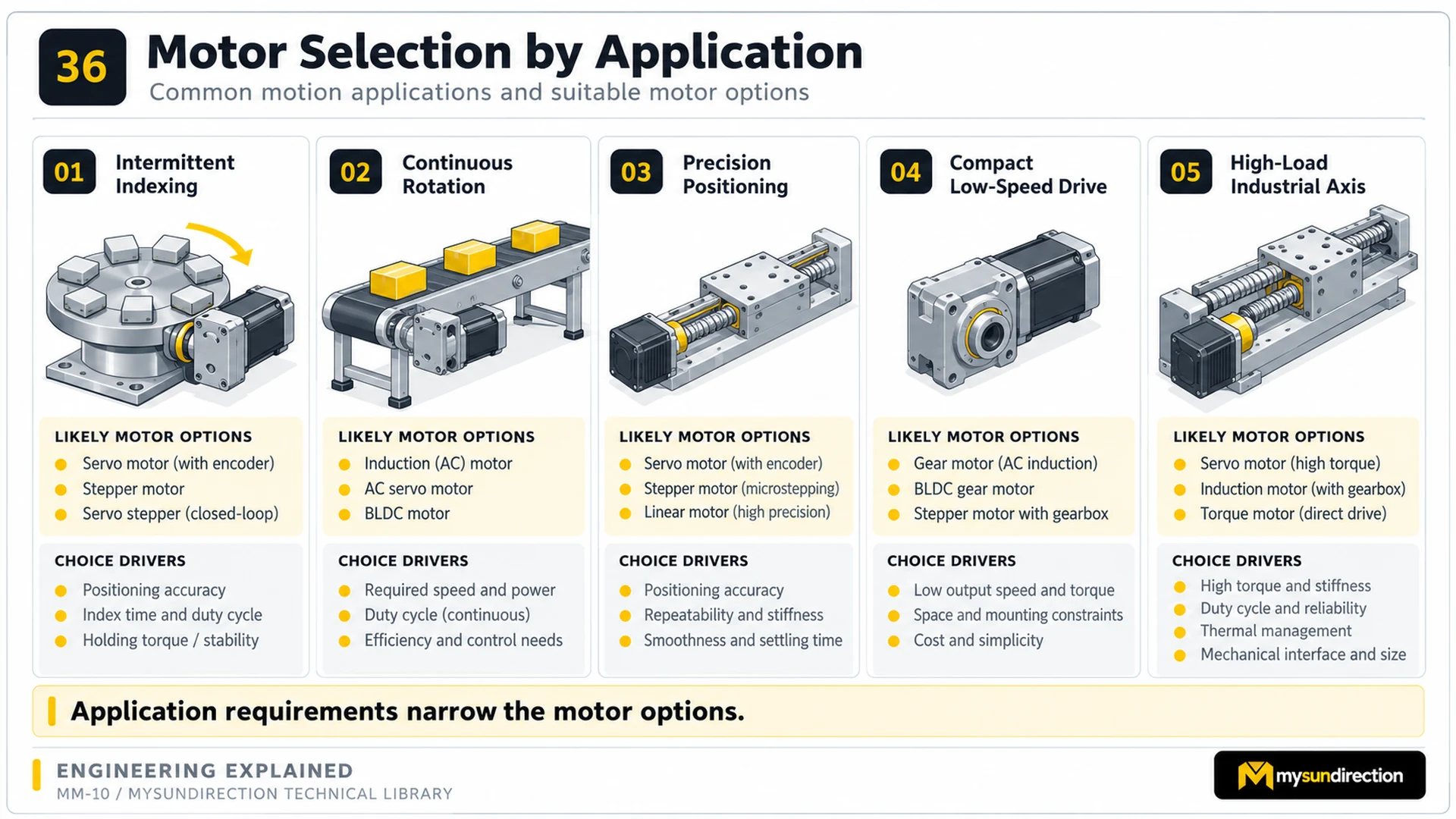

Diagram description
Five vertical panels show a rotary index table, conveyor, screw-driven precision axis, compact gearmotor and twin-screw high-load axis. Each panel lists likely motor categories and requirements such as accuracy, speed, duty, torque, stiffness and thermal management.
| Application phrase | Needed data | Possible directions |
|---|---|---|
| Intermittent indexing | Index angle or distance, move time, dwell, inertia, starts per hour, holding and settling | Stepper, closed-loop stepper or servo after curve and duty checks |
| Continuous rotation | Speed range, continuous power or torque, starting load, regulation, hours and environment | Induction with suitable drive, BLDC or servo depending on control and efficiency needs |
| Precision positioning | Accuracy, repeatability, path error, load feedback, stiffness, backlash and settling | Servo or closed-loop stepper; linear/direct-drive options where mechanics and process justify them |
| Compact low-speed output | Output torque/speed, duty, holding, backlash, efficiency and envelope | Appropriate motor plus gearbox; compare heat, life and output-shaft limits |
| High-load axis | Full force/torque cycle, inertia, vertical safety, thermal duty, stiffness and reliability | Sized servo, induction or torque/direct-drive system with verified transmission and holding functions |
When a simple brushed DC motor may still be appropriate
A brushed DC motor can be practical where cost, compactness and straightforward rotation control matter and brush life, electrical noise and maintenance are acceptable. Add feedback when the task needs regulated speed or position. Verify starting/stall current, driver switching, thermal duty and the failure consequence; a low component count does not remove protection requirements.
Build one comparable selection record for every candidate
| Area | Required inputs | Pass evidence |
|---|---|---|
| Motion | Positions, speeds, acceleration, dwell, cycle time and emergency or recovery moves | Candidate curve and controller can reproduce every segment |
| Torque and power | Friction, gravity, process force, inertia, transmission loss, continuous or RMS and peak demand | Speed–torque envelope and thermal duty pass with stated margins |
| Feedback/control | Position, speed or torque mode; accuracy, homing, fault detection, network and tuning | Matched drive, feedback and controller architecture meets process behavior |
| Mechanics | Shaft, flange, bearings, gearbox, brake, coupling, inertia and allowed loads | Exact drawings, load limits and complete drivetrain model pass |
| Electrical | Supply voltage, current, regeneration, drive protection, EMC and cabling | Power source and drive remain within ratings during normal and fault cases |
| Environment/life | Ambient, enclosure, altitude, cooling, dust, water, vibration, duty and maintenance | Derating, thermal, protection and service-life evidence pass |
| Safety | Unexpected motion, overspeed, vertical load, stop and isolation requirements | Independent risk-reduction functions and validation are defined |
A requirements-first motor choice
- 1. Describe the load cycle.Start at the mechanism and calculate torque, speed, inertia and duration for acceleration, running, holding, reversal, stop and credible fault cases.
- 2. Define performance at the load.State accuracy, repeatability, smoothness, settling, disturbance recovery and permissible following error where relevant.
- 3. Choose candidate architectures.Compare motor, drive, feedback, brake and transmission combinations rather than bare motors.
- 4. Use exact curves and duty rules.Check torque at speed, continuous or RMS heating, peak duration, drive voltage/current and environmental derating.
- 5. Verify mechanical and electrical integration.Confirm shaft/flange, inertia, bearings, cabling, supply, regeneration, cooling, communication and protection.
- 6. Test the complete axis.Commission progressively and measure current or torque estimate, temperature, position error, vibration, settling and response to defined disturbances.
Use Gear Ratio, Speed and Torque in Real Machines when a transmission may move the motor to a better operating point, and Selecting a Complete Linear Axis to keep the motor decision inside the full load, travel, accuracy and lifecycle worksheet. The best motor is the complete system that meets the measured cycle with understandable margins and verified behavior.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for DC, Stepper and Servo Motors: Which One Fits?
1. Describe the load cycle. Start at the mechanism and calculate torque, speed, inertia and duration for acceleration, running, holding, reversal, stop and credible fault cases.
Which assumption can change the conclusion?
Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
What can go wrong if I copy the example directly?
Do not compare stepper holding torque with servo rated torque as if they were identical. Holding, pull-out, continuous or rated, intermittent and peak torque describe different conditions.
How do I verify the result in the real system?
6. Test the complete axis. Commission progressively and measure current or torque estimate, temperature, position error, vibration, settling and response to defined disturbances.
