Choosing a Coupling That Can Tolerate Misalignment
Understand different shaft offsets and why couplings fail when installed poorly.
You must choose between real alternatives covered by “Choosing a Coupling That Can Tolerate Misalignment” for a defined machine, circuit or installation.
Distinguish angular, parallel and axial shaft displacement; estimate the installed tolerance stack; compare coupling limits without adding maxima independently; and align, space, fasten and inspect the selected coupling correctly.
- Select or check first
- 1. Make the machine safe. Isolate the drive and every stored-energy source, secure loads and remove guarding only under the authorized procedure.
- Controlling assumption
- Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
- Top risk
- Never assume all catalog maxima apply together. A product table can list maximum angular, parallel and axial values separately. Those may be individual limits rather than a permissible simultaneous combination. Torque, speed, temperature and life can also derate capacity.
- Proof
- 7. Guard, test and re-inspect. Restore guarding, monitor noise, vibration and temperature and check the defined retention and alignment points after run-in.
Start with the basics Optional foundation before “Choosing a Coupling That Can Tolerate Misalignment”
Mechanical-design basics
Mechanical parts must carry loads, guide motion and remain aligned; similar-looking components can behave very differently under real force and duty.
- Force and torque
- Force pushes or pulls along a line. Torque is a turning effect equal to force multiplied by its perpendicular lever arm.
- Speed and acceleration
- Speed describes how fast position changes. Acceleration describes how fast speed changes and often creates the highest inertial load.
- Strength and stiffness
- Strength concerns permanent damage or failure. Stiffness concerns elastic deflection under load; a part can be strong enough yet too flexible for accurate motion.
- Load path
- The load path is the complete route by which force travels through shafts, bearings, fasteners, frames and foundations. Every interface on that route must be checked.
- Tolerance, clearance and alignment
- Tolerance permits controlled variation, clearance provides intentional space, and alignment keeps interacting axes or surfaces in the required relationship.
How to use this article: Sketch the load path and motion direction first, then attach units, worst-case loads, duty and acceptance limits to every calculation.
On this page
Two shafts that look aligned can still differ in angle, centerline position or axial separation. Manufacturing tolerances, mounting error, bearing clearances, structural deflection and temperature can change all three during operation. A flexible coupling can accommodate specified displacement by deforming in a controlled way, but that deformation creates reaction forces and cyclic stress. The correct goal is accurate alignment plus enough coupling capacity for the residual movement that remains—not deliberate poor alignment.
Describe misalignment with three different components

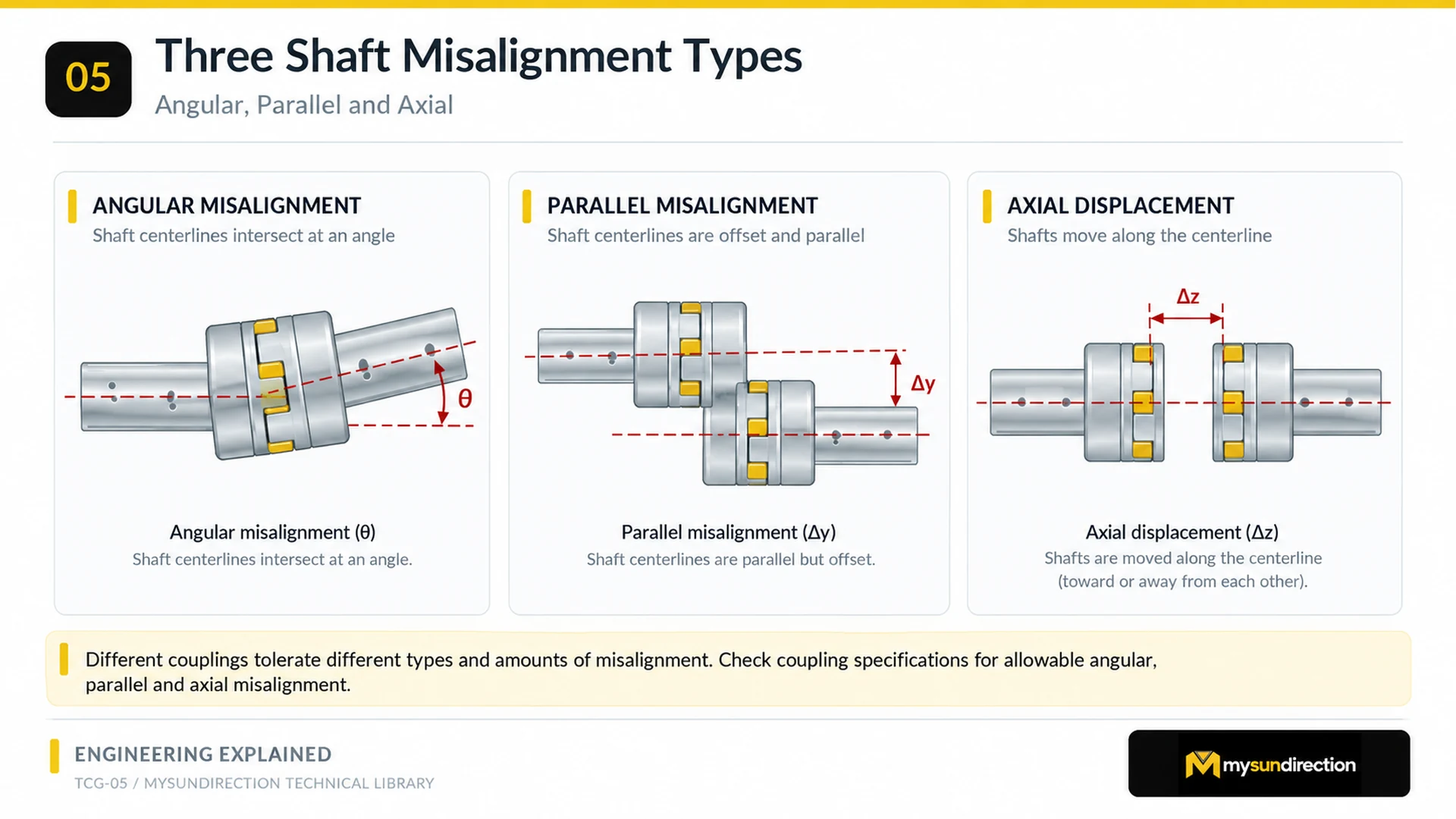

Diagram description
The left panel shows intersecting dashed shaft centerlines and an angle theta. The middle shows two parallel dashed centerlines separated by delta y. The right shows collinear shaft ends separated by an axial delta z.
| Component | Meaning | Typical source |
|---|---|---|
| Angular | Shaft centerlines meet at an angle | Mounting-face angular error, structure distortion or bearing-axis tilt |
| Parallel / offset | Centerlines remain parallel but do not coincide | Machining/assembly tolerance, base shift, support deflection or thermal movement |
| Axial | Shaft ends move toward or away from one another along the axis | Thermal growth, bearing end float, assembly spacing or driven-equipment motion |
Angular error is normally expressed in degrees or radians, offset in millimetres, and axial motion as a positive or negative distance around a defined installed position. Do not add those unlike units into one number. A manufacturer may rate the coupling for each component under specific conditions, but simultaneous maxima are often not allowed: using more capacity in one direction can reduce what remains in another. Obtain the combined-misalignment rule for the exact coupling.
Misalignment is only one part of the coupling envelope

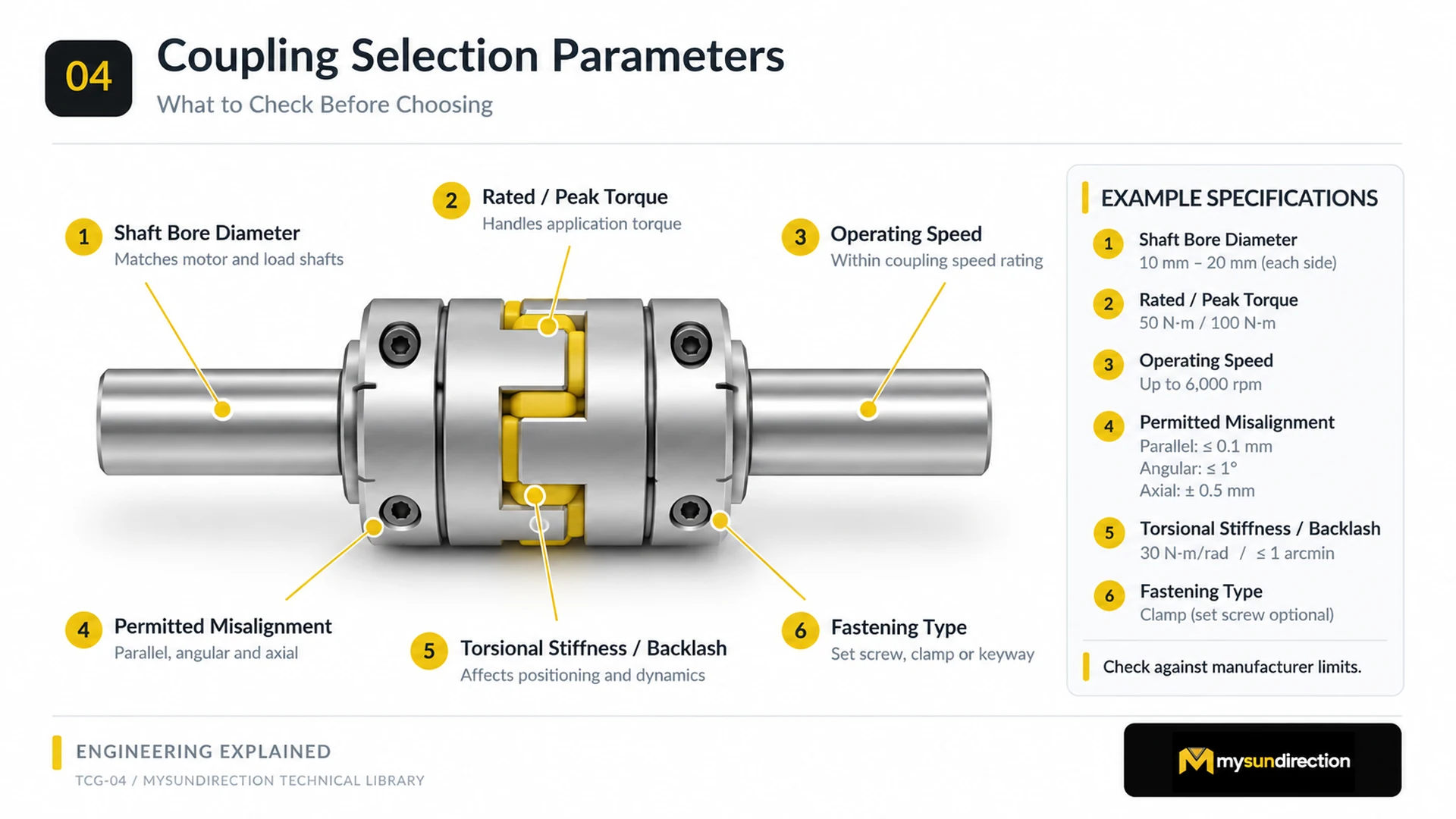

Diagram description
A metallic coupling between two shafts has six callouts. A side panel presents example bore, torque, speed, displacement, stiffness, backlash and fastening values and ends with a manufacturer-limit reminder.
| Check | Application input | Catalog or instruction evidence |
|---|---|---|
| Bores and retention | Both shaft sizes, tolerances, key or flat, insertion and axial restraint | Allowed bore combination, hub type, shaft fit and seating torque |
| Torque | Continuous, accelerating, reversing, process peak and jam or stall | Nominal, dynamic and peak definitions, service factor and cycle or life limits |
| Speed | Maximum rpm, reversals and balance sensitivity | Maximum speed for exact bore or configuration and any balancing condition |
| Misalignment | Installed plus thermal and loaded angular, offset and axial components | Individual and combined limits at the stated torque and speed |
| Motion quality | Allowable position error, settling, vibration and shock | Torsional stiffness, backlash, damping, inertia and load curves |
| Environment | Temperature, dust, moisture, chemicals and corrosion | Material or insert range, enclosure or inspection needs |
| Envelope | Outside diameter, length, shaft-end gap and access | Exact drawing, free length, penetration and tool clearance |
Family tendencies help create a shortlist but cannot approve it. An Oldham-style center disc is often selected for meaningful parallel offset; a single flexible beam may favor angular and axial displacement over parallel offset; two separated flex planes can accommodate parallel offset through angular flex at each plane. These are geometric principles. Exact torque, speed, fatigue, stiffness and displacement capability still come from the ordered product.
Estimate the alignment range over the machine's full life
Build an alignment budget from component and assembly tolerances, but do not blindly add every worst case if the geometry and statistical assumptions do not justify it. Include motor and driven-equipment pilot fits, mounting flatness, bearing location, shaft runout, bracket deflection, temperature gradients, foundation movement and service adjustments. Evaluate positions that maximize error. Then reserve margin for measurement uncertainty and degradation according to the project's risk method.
Alignment evidence to retain
- Reference datums, coordinate convention and allowable values
- Cold and expected operating temperatures at both supports
- Shaft runout and equipment mounting tolerances from current drawings
- Deflection under gravity, belt, gear, process load and acceleration
- Measurement locations, instrument resolution and calibration status
- As-installed angular and offset readings before and after tightening
- Hub spacing, shaft insertion and fastening record
- Reinspection trigger after run-in, movement, impact or maintenance
Installation can consume the coupling's capacity before the machine runs

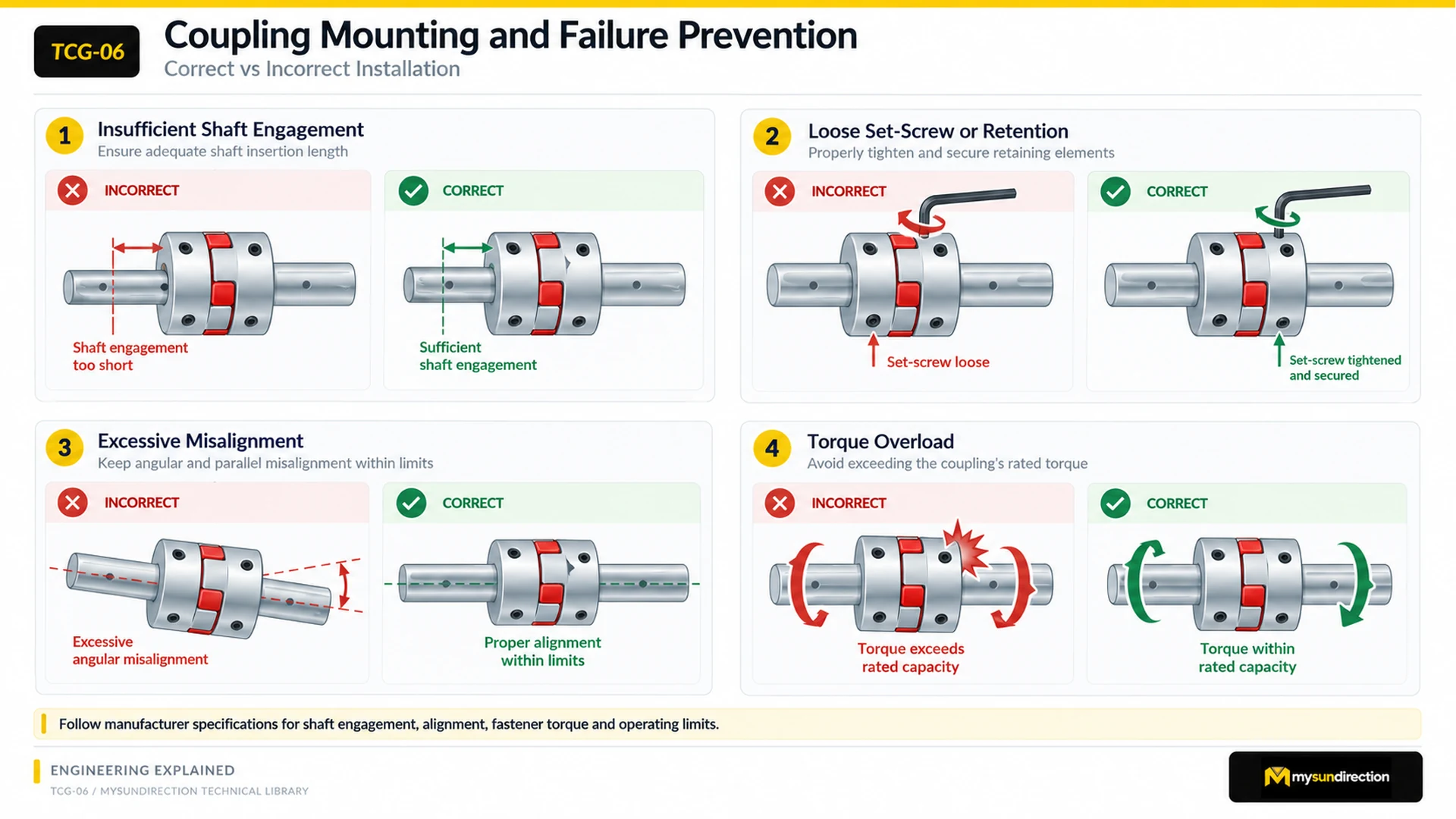

Diagram description
Four comparison panels show a shaft inserted too little versus sufficiently, a loose versus tightened screw, excessive angular offset versus closer alignment, and an overload burst versus torque within rating.
| Error | Possible consequence | Prevention or evidence |
|---|---|---|
| Insufficient or excessive shaft penetration | Reduced grip, hub damage, interference with the flex section or wrong free length | Use the specified engagement and maximum penetration dimensions |
| Wrong hub spacing | Axial preload, insufficient tooth or spider engagement or flex outside neutral geometry | Set the drawing dimension before the second hub is secured |
| Loose or over-tightened fastener | Shaft slip or fretting, or damaged screw, thread, hub or shaft | Clean as instructed and use the specified fastener, sequence and calibrated seating torque |
| Excessive or off-center misalignment | High bearing reactions, heat, vibration and cyclic flex-element stress | Align first; center permitted flex according to the instructions |
| Torque or speed overload | Insert wear, beam, bellows or disc fatigue, hub slip or sudden separation | Verify real duty including acceleration, reversal and faults |
| Unsupported or forced assembly | Bent shafts, bearing preload or distorted coupling | Support equipment, avoid hammering, and correct fit or alignment rather than pulling shafts together with hubs |
A controlled coupling installation
- 1. Make the machine safe.Isolate the drive and every stored-energy source, secure loads and remove guarding only under the authorized procedure.
- 2. Verify identity and condition.Confirm exact part, bores, insert, fasteners and instructions; reject damage, corrosion, burrs or contaminated mating surfaces.
- 3. Measure the shafts and alignment.Check diameters, runout and relative angular or offset position at defined datums; correct the equipment mounts rather than forcing the coupling.
- 4. Set insertion and free spacing.Place both hubs at the specified engagement and separation, keeping shafts clear of any relieved or flex region unless the drawing permits entry.
- 5. Tighten exactly as instructed.Use the required sequence and seating torque with the specified thread condition, while keeping the flexible element axially relaxed and correctly centered.
- 6. Check by controlled rotation.Where the safe procedure permits, verify clearance, smoothness and no binding before powered low-energy commissioning.
- 7. Guard, test and re-inspect.Restore guarding, monitor noise, vibration and temperature and check the defined retention and alignment points after run-in.
Review What Shaft Couplings Actually Do for family anatomy, and How Assembly Errors Damage Motion Systems for the wider alignment and mounting chain. The selected coupling should tolerate the residual, documented movement after good alignment—not serve as permission to leave the drivetrain visibly wrong.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Choosing a Coupling That Can Tolerate Misalignment?
1. Make the machine safe. Isolate the drive and every stored-energy source, secure loads and remove guarding only under the authorized procedure.
Which assumption can change the conclusion?
Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
What can go wrong if I copy the example directly?
Never assume all catalog maxima apply together. A product table can list maximum angular, parallel and axial values separately. Those may be individual limits rather than a permissible simultaneous combination. Torque, speed, temperature and life can also derate capacity.
How do I verify the result in the real system?
7. Guard, test and re-inspect. Restore guarding, monitor noise, vibration and temperature and check the defined retention and alignment points after run-in.
