A ball screw is a screw-drive assembly in which balls roll between helical grooves in a screw shaft and a ball nut. In a common linear axis, a motor rotates the screw while the machine structure prevents the nut from rotating. The nut then travels along the shaft and carries the attached carriage. The same mechanism can work with a rotating nut or can convert imposed linear motion back into rotation, so the restraints around the assembly matter as much as the parts inside it.

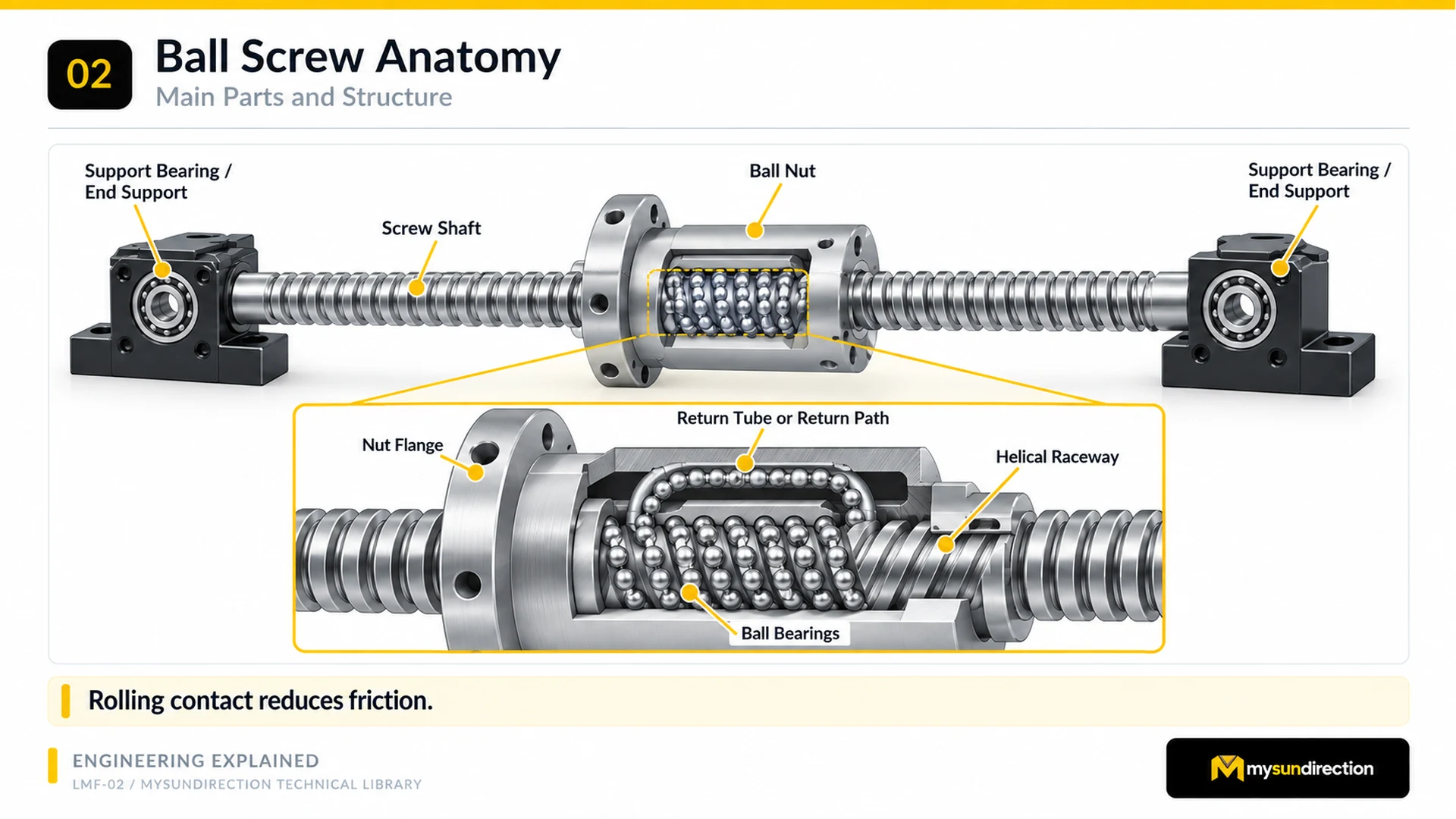

Separate the ball-screw assembly from the parts around it
At its simplest, the ball-screw assembly contains a grooved screw, a ball nut, load-carrying balls and a recirculation device. Nut seals or wipers and lubricant-management features are commonly added. A flange or other mounting interface connects the nut body to a nut housing or carriage. Bearings at the shaft ends support and locate the screw within the machine, but those end supports are system components rather than balls circulating inside the nut.
Diagram description
A full-width screw shaft passes through a central flanged ball nut and dark end-support housings. The upper view labels the screw shaft, ball nut and support bearings. A magnified cutaway below shows rows of balls between the screw and nut raceways, an arched return route above them, the nut flange and the helical raceway. The rendering teaches functional relationships and is not a manufacturing drawing, scale drawing or universal internal layout.
| Part | Main function | Important boundary |
|---|---|---|
| Screw shaft and helical groove | Provide the rolling raceway and the geometry that relates relative rotation to axial travel | The shaft still needs suitable end machining, bearings, alignment and protection |
| Ball-nut body and matching groove | Contain the ball circuits and transfer their combined axial contact forces to the nut mounting interface | The nut is not a substitute for carriage guide rails |
| Contact balls | Roll through the loaded raceways and transmit force between screw and nut | They are precision components; loss, contamination or mixing sizes can damage the assembly |
| Recirculation device | Guide balls leaving a loaded circuit back to its entry so motion can continue | Return tubes, internal channels, end caps and deflectors are different design families, not interchangeable names for one layout |
| Seals or wipers | Limit contaminant entry and help retain lubricant according to the product design | They do not make an exposed screw immune to chips, abrasive dust, coolant or water |
| Nut flange or mounting interface | Connect the nut to its housing or moving carriage | Bolt pattern, pilot fit, orientation and tightening procedure must match the verified drawing |
| Support bearings and housings | Locate and support the shaft and react loads through the machine structure | They are selected as part of the axis; the two ends do not necessarily perform identical axial-location duties |

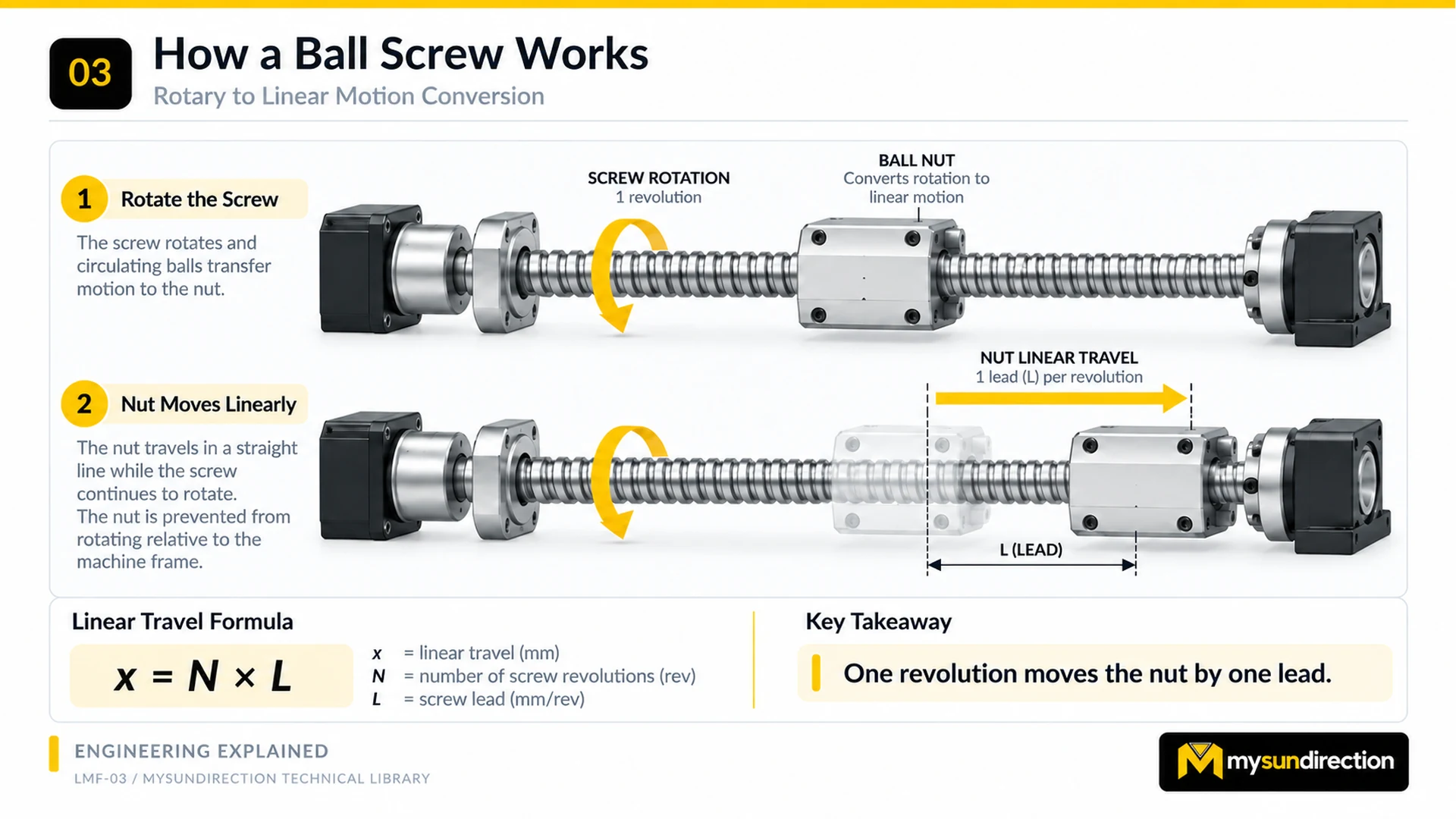

Follow one ball around a circuit
Relative rotation makes each contact ball roll along the helical space between the screw groove and nut groove. Contact forces from many balls share the axial load. Near the end of a circuit, a pickup or deflector changes the ball's route. The ball passes through an external tube or an internal return feature, re-enters the helical groove near the circuit's beginning and repeats the cycle. A nut can contain more than one circuit, and the visible return-tube arrangement in a teaching image is only one possible architecture.
Diagram description
The upper scene shows a supported screw with a curved rotation arrow and a centered ball nut. The lower scene ghosts the starting nut position and shows the nut displaced to the right while the screw continues rotating. Dimension arrows label the displacement as one lead per revolution. A formula panel states x equals N multiplied by L, where x is travel, N is revolutions and L is lead. The diagram presents ideal kinematics, not a positioning-accuracy guarantee.
One turn, described without skipping the constraints
- 1. Apply relative rotation.A drive rotates the screw relative to the nut, or rotates the nut relative to the screw. The rest of the machine determines which member turns.
- 2. Restrain unwanted motion.In the familiar rotating-screw layout, the nut is attached to a carriage that cannot rotate. Guideways allow that carriage to move axially while reacting side loads and moments.
- 3. Load the rolling contacts.The helical grooves press on the balls at contact points. The balls press on the opposing groove, and the combined contact forces create axial thrust between screw and nut.
- 4. Recirculate the balls.Each ball leaves the loaded portion of its circuit and is redirected through a return feature. It circulates locally through the nut instead of travelling to the far end of the entire screw.
- 5. Transfer motion to the carriage.The nut body and its flange or housing carry the axial result into the carriage. The screw supports and machine base carry the equal-and-opposite reactions.
Lead turns revolutions into nominal distance
Screw lead is the nominal axial advance for one relative revolution of screw and nut. If lead is stated in millimetres per revolution, multiplying it by revolutions gives nominal travel in millimetres. The sign or direction depends on thread hand, viewing direction and rotation direction, so an unsigned catalogue lead alone cannot tell an installer which way a carriage will move.
Ideal travel from relative rotation
x = N × L
Use relative screw-to-nut revolutions for N. This is a geometric relationship for a constant-lead screw; it does not include backlash, elastic deflection, lead error, thermal growth, control error or measurement uncertainty.
- x
- nominal axial travel, such as millimetres
- N
- relative rotation between screw and nut, in revolutions
- L
- nominal screw lead, such as millimetres per revolution
For a 10 mm/revolution lead, 2.5 relative revolutions correspond to 25 mm of nominal travel. That calculation alone does not prove that the load reached a position within any particular tolerance.
Lead, pitch and thread starts are related but not always identical
Pitch describes spacing between corresponding points on adjacent thread forms. Lead describes axial advance per revolution. On a single-start screw they are numerically equal; on a multiple-start screw, lead is an integer multiple of pitch. Use the product's stated lead for motion calculations instead of estimating from a picture of the groove.
A larger lead gives more nominal travel per revolution and, for the same rotational speed, more nominal linear speed. It also changes the torque-thrust relationship and dynamic demands. No lead is universally best: travel, speed, load, stiffness, controllability, critical speed, duty and life must be considered together.
Rolling contact lowers friction, but it does not remove it
Compared with a suitably contrasted sliding screw drive, rolling contact can reduce friction and wear and can support smooth motion. Real ball-screw contacts still experience elastic deformation, rolling, local sliding or spin, lubricant shear and seal drag. Support bearings and couplings add their own losses. Efficiency therefore depends on the actual product, load, preload, speed, lubricant, temperature, seals and installation; a generic cutaway cannot supply a guaranteed percentage.
| Simplified claim | More accurate interpretation |
|---|---|
| Rolling means no friction | Rolling contact usually reduces friction relative to sliding contact, but the system still has contact, lubricant, seal and bearing losses |
| A ball screw has no backlash | Ball screws may be supplied with axial play or with preload; the complete axis can also have compliance and lost motion at other interfaces |
| Preload always improves the machine | Preload can reduce axial play and raise stiffness, but excessive or unsuitable preload increases drag, heat and internal loading |
| The lead formula gives accuracy | Lead gives nominal kinematics; accuracy also depends on lead deviation, mounting, temperature, load, feedback and control |
| Low friction prevents reverse motion | Some ball-screw systems can be back-driven by an axial load, so a vertical axis may need a brake, counterbalance or other holding strategy |
What preload changes—and what it cannot fix
Preload deliberately creates internal elastic loading so contacts remain engaged across a reversal. Product designs may use selected ball size, shifted groove geometry, a double-nut arrangement or another verified method. The result can reduce axial clearance and increase local stiffness, which is useful where direction changes would otherwise expose lost motion.
Preload also raises internal force and can increase drive torque and heat. It does not straighten a misaligned installation, remove screw lead error, eliminate support-bearing motion or guarantee final load position. Preload class, permissible external load, lubrication and operating limits must come from the selected product's technical data.
Installation completes the mechanism
Checks outside the cutaway that decide whether it works
- Support arrangement.Define which bearing set locates the screw axially, which loads each end can react, and how thermal expansion is accommodated. Similar-looking end housings may have different functions.
- Guidance and alignment.Use guides to carry carriage side loads and moments. Align screw supports, nut housing and guide path within verified tolerances; forcing a misaligned nut into place can create abnormal load, torque, wear, vibration or binding.
- Lubrication.Use the specified lubricant, quantity, delivery method and interval. A visually clean screw is not evidence that its internal contacts have enough compatible lubricant.
- Contamination control.Select seals, bellows, covers or enclosures for the actual chips, dust, coolant and moisture. Wipers reduce ingress; they cannot make every environment acceptable.
- Nut handling.Do not run a ball nut off its screw unless the manufacturer provides the correct transfer sleeve and procedure. Escaping or displaced balls can make reassembly unsafe or invalidate the preload and performance.
- Ratings and life.Check static and dynamic axial load, duty cycle, speed, acceleration, lubrication, mounting and required life using current product data and the relevant calculation method—not the image proportions.
Read a ball-screw diagram in the right order
A five-question reading method
- 1. What is rotating?Identify whether the screw or nut rotates and how the non-rotating member is restrained.
- 2. Where is the loaded raceway?Find the screw groove, nut groove and contact balls that transfer axial force.
- 3. Where do the balls return?Trace the recirculation feature back to the circuit entry instead of imagining the balls moving along the whole shaft.
- 4. What is the lead?Use the stated travel per revolution for nominal kinematics, with consistent units and a defined direction convention.
- 5. What completes the load path?Locate the nut mounting, carriage guides, screw supports and machine base that carry reactions outside the ball-screw assembly.
A ball screw is best understood as two simultaneous paths: a helical load path that converts relative rotation and translation, and a recirculation path that brings each ball back for another pass. The installed axis then adds supports, guidance, lubrication, guarding and control. To see how those parts connect to the rest of a linear stage, return to From a Motor to a Moving Carriage.
