Mechanical Sizing and Verification
Drawings, Fasteners and Motion Limit Switches
Read basic mechanical drawings and see how small assembly choices affect reliability.
You are connecting the subsystems described in “Drawings, Fasteners and Motion Limit Switches” and need their mechanical, electrical and control interfaces to work together.
Connect motion calculations to controlled drawings, intentional locating and clamping, maintainable fastener joints, and layered home, travel-limit, overtravel and safety functions.
- Select or check first
- 1. Identify the document. Read part number, title, revision, sheet number, status and change record before interpreting geometry.
- Controlling assumption
- Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
- Top risk
- Do not scale a production drawing. Printing, display and reproduction can change scale, and perspective views are not measurement views. Use stated dimensions and controlled CAD or model data only when the drawing authorizes it. Ask for clarification when dimensions conflict or a feature is underdefined.
- Proof
- 7. Check completeness and revision. Raise conflicts or missing requirements formally; never invent an unstated tolerance or manufacture from an obsolete sheet.
Start with the basics Optional foundation before “Drawings, Fasteners and Motion Limit Switches”
Mechanical-design basics
Mechanical parts must carry loads, guide motion and remain aligned; similar-looking components can behave very differently under real force and duty.
- Force and torque
- Force pushes or pulls along a line. Torque is a turning effect equal to force multiplied by its perpendicular lever arm.
- Speed and acceleration
- Speed describes how fast position changes. Acceleration describes how fast speed changes and often creates the highest inertial load.
- Strength and stiffness
- Strength concerns permanent damage or failure. Stiffness concerns elastic deflection under load; a part can be strong enough yet too flexible for accurate motion.
- Load path
- The load path is the complete route by which force travels through shafts, bearings, fasteners, frames and foundations. Every interface on that route must be checked.
- Tolerance, clearance and alignment
- Tolerance permits controlled variation, clearance provides intentional space, and alignment keeps interacting axes or surfaces in the required relationship.
How to use this article: Sketch the load path and motion direction first, then attach units, worst-case loads, duty and acceptance limits to every calculation.
On this page
A motion-axis calculation becomes useful only when its assumptions survive the drawing, manufacturing, assembly and control system. The drawing must communicate which surfaces locate the parts. Fasteners must create and retain the intended clamp load. Sensors must detect reference and travel conditions early enough for the axis to stop. Each decision needs an inspectable requirement rather than a technician's guess.
Keep the calculation and documentation chain connected

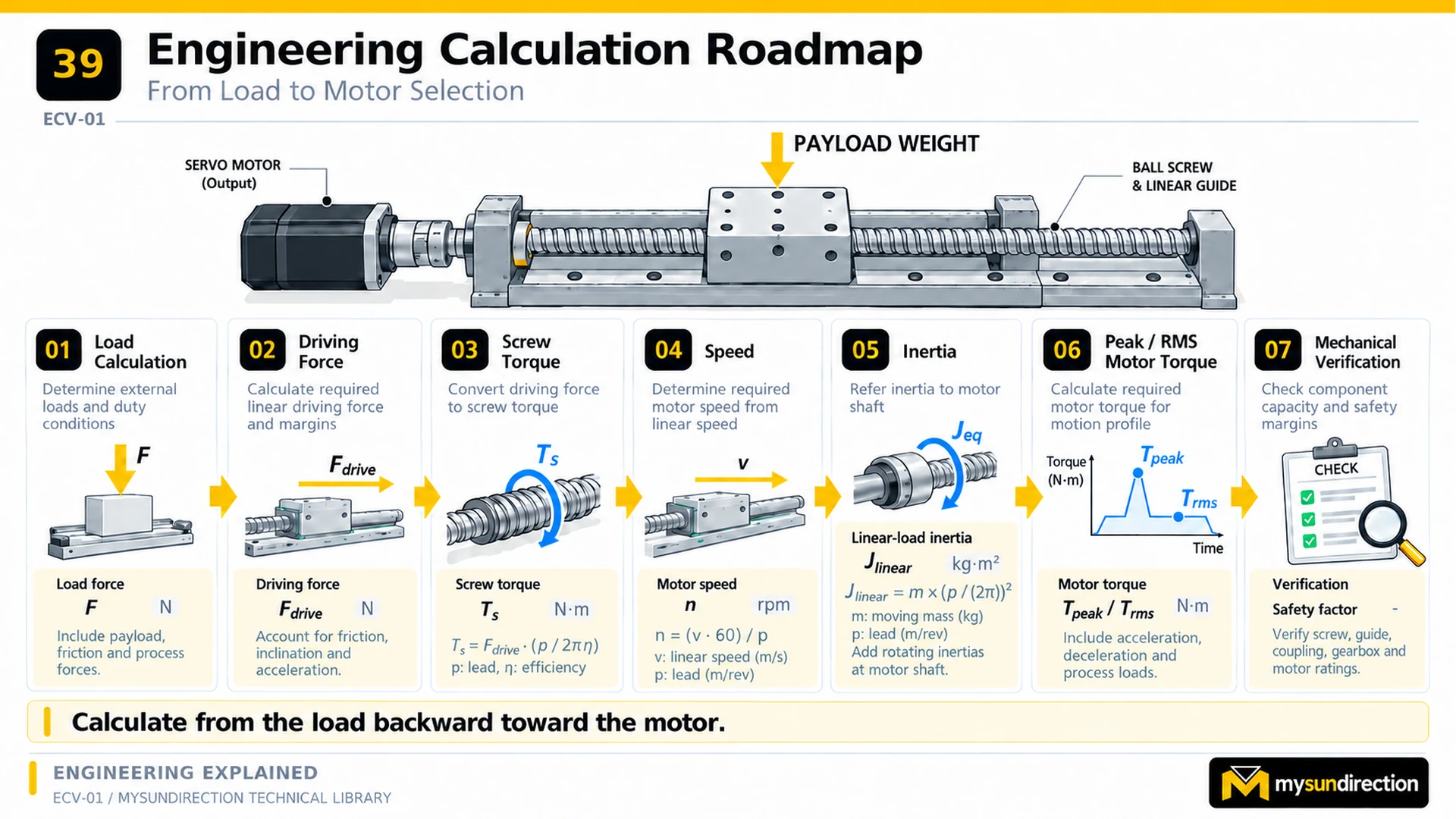

Diagram description
A motor and screw axis sits above seven panels: load, drive force, screw torque, motor speed, reflected inertia, peak and RMS torque, and a final component verification checklist.
| Stage | Record | Downstream use |
|---|---|---|
| Requirements | Load range, orientation, motion profile, duty, accuracy, environment and hazards | Calculation inputs and acceptance criteria |
| Calculations | Equations, units, sign conventions, efficiencies, margins and source ratings | Motor, screw, guide, coupling and structure selection |
| Drawings | Geometry, interfaces, datums, tolerances, material, finish and revision | Manufacturing, inspection and interchangeable assembly |
| Assembly specification | Fasteners, condition, torque or tension method, sequence, lubrication and access | Repeatable clamp load and service procedure |
| Controls | Home, normal limits, stop response, fault behavior and reset rules | Predictable travel and recovery |
| Safety validation | Risk-reduction functions, architecture, test cases and results | Evidence that normal faults do not create unacceptable risk |
| Commissioning baseline | Position, current, temperature, vibration, stopping and inspection data | Maintenance comparison and controlled change |
Read the drawing as a controlled technical instruction

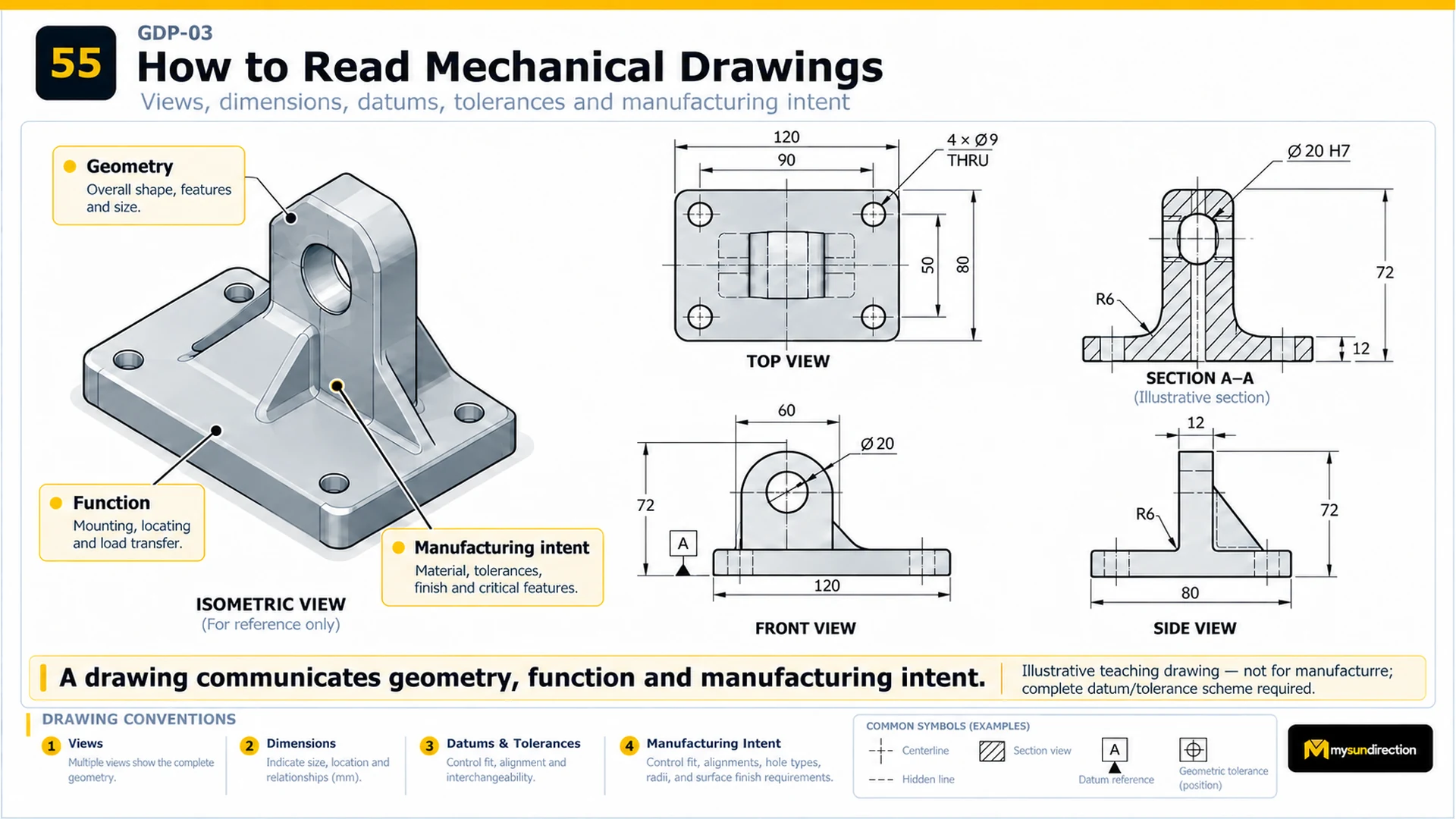

Diagram description
An isometric bracket is paired with orthographic and section views. Examples include overall dimensions, four through holes, a radius, a datum symbol and a diameter with H7 tolerance notation.
A reliable drawing-reading order
- 1. Identify the document.Read part number, title, revision, sheet number, status and change record before interpreting geometry.
- 2. Read global rules.Find units, scale, projection convention, material, finish, heat treatment, edge requirements, general tolerances and referenced standards.
- 3. Reconstruct the geometry.Correlate front, top and side views. Use sections for internal features and isometric views for orientation; do not assume the pictorial view controls dimensions.
- 4. Find functional interfaces.Identify mounting faces, pilots, bearing seats, hole patterns, clearances and load-transfer surfaces.
- 5. Follow the datum scheme.Understand which real features establish the primary, secondary and tertiary references used for manufacturing and inspection.
- 6. Apply tolerances to function.Read size limits, fits and geometric controls together. A nominal dimension alone does not define acceptability.
- 7. Check completeness and revision.Raise conflicts or missing requirements formally; never invent an unstated tolerance or manufacture from an obsolete sheet.
| Element | What it communicates | What it does not mean |
|---|---|---|
| Dimension | Nominal size or location with applicable tolerance rules | Permission to measure a printed image with a ruler |
| Datum feature | A real feature used to establish a reference frame | A perfect imaginary surface by itself |
| Basic dimension | Theoretically exact location or orientation used with a geometric tolerance | A zero-tolerance manufactured size |
| Section hatching | Material cut by an imagined section plane | A surface finish pattern |
| Hidden line | An obscured edge in that view | A preferred substitute for a clarifying section |
| Fit such as H7 | One zone in a standardized fit system | A complete mating fit without the shaft zone, nominal size and applicable standard |
| Reference dimension | Helpful derived or repeated information | A controlling manufacturing requirement unless explicitly made one |
Separate locating from clamping

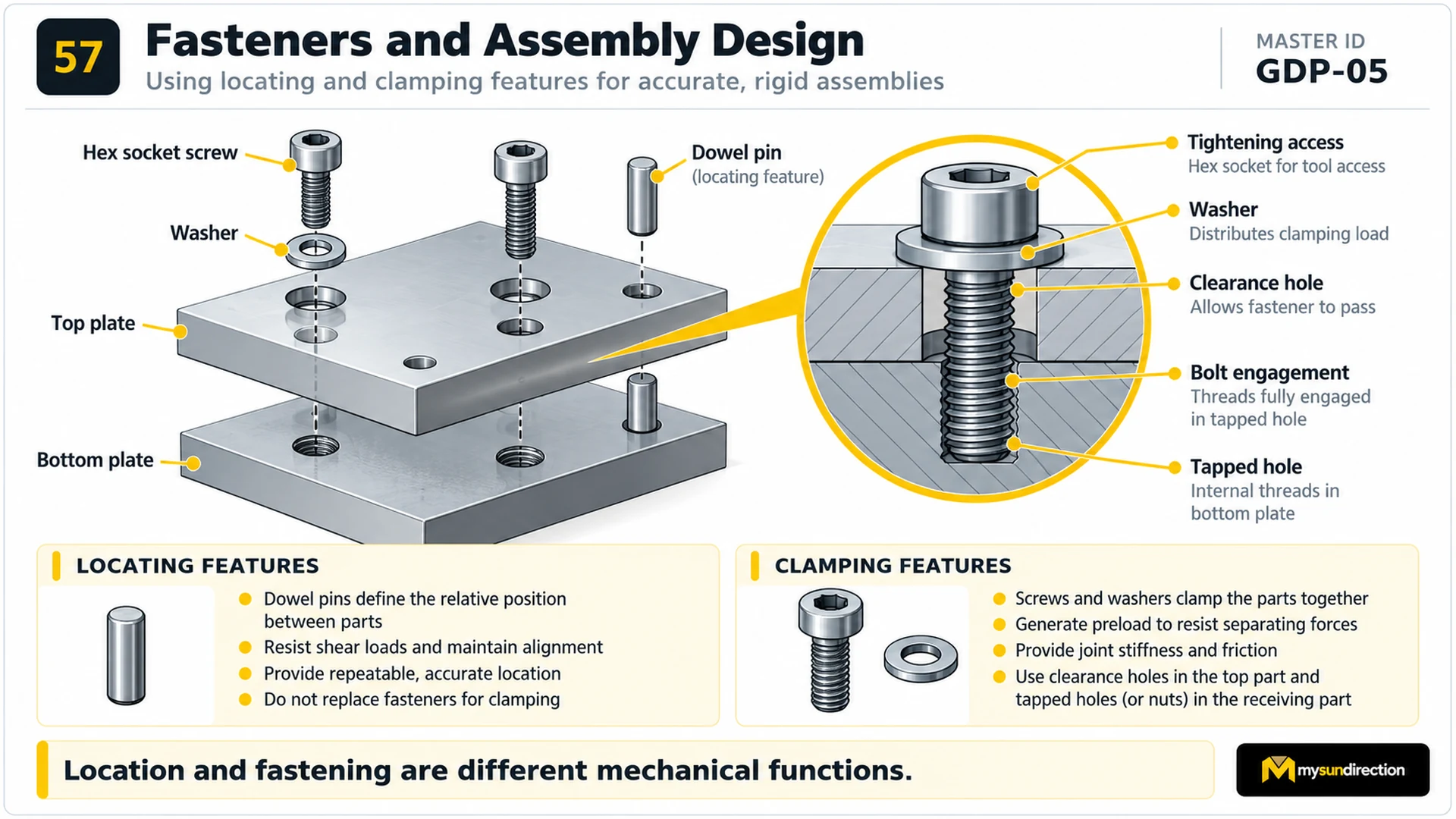

Diagram description
Two plates are joined with socket-head screws and washers while separate dowel pins align them. A section identifies the clearance hole, engaged thread and tapped receiving part.
A well-designed bolted joint uses fastener tension to compress the clamped parts. The resulting contact pressure and friction can resist service shear while the joint remains closed. If preload is too low, interfaces can slip or separate and the bolt sees larger cyclic loading. If preload is too high, the bolt, threads or clamped material can yield or embed. The correct target depends on the joint—not on a universal tightening table.
Torque is only an indirect preload method
T ≈ KFd
This simplified screening relationship hides substantial variation in thread and bearing friction. K changes with coating, lubricant, reuse, washer, surface and manufacturing scatter. Use the joint designer's approved torque-tension or direct-tension procedure, not a guessed K value.
- T
- installation torque, N·m
- K
- empirical nut factor for the specified condition
- F
- target fastener preload, N
- d
- nominal fastener diameter, m
Changing from dry to lubricated threads without changing the torque specification can materially change preload. Lubrication is part of the specification, not a workshop detail.
| Area | Questions | Evidence |
|---|---|---|
| Fastener | Exact standard, property class, material, coating, length and head style? | Controlled bill of materials and certificates where required |
| Threads | Correct pitch, class, tapped depth, usable engagement and no bottoming? | Drawing, thread gauge and assembly check |
| Clamped stack | Flat contact, adequate bearing area, no burrs, paint or soft layer where prohibited? | Surface specification and inspection |
| Preload | Torque, angle, tension or other method; dry or lubricated; new or reusable? | Approved procedure, calibrated tooling and traceability |
| Load path | Can contact friction carry shear, or are fitted pins/shoulders required? | Joint calculation and representative test |
| Location | Do pilots or dowels establish position without over-constraining the assembly? | Datum and fit scheme with assembly sequence |
| Retention | Can vibration, settlement or thermal cycling reduce clamp load? | Chosen locking strategy, validation and inspection interval |
| Service | Can the specified tool reach the fastener and can parts be replaced repeatably? | Access model, procedure and maintenance trial |
Layer reference, travel and overtravel protection

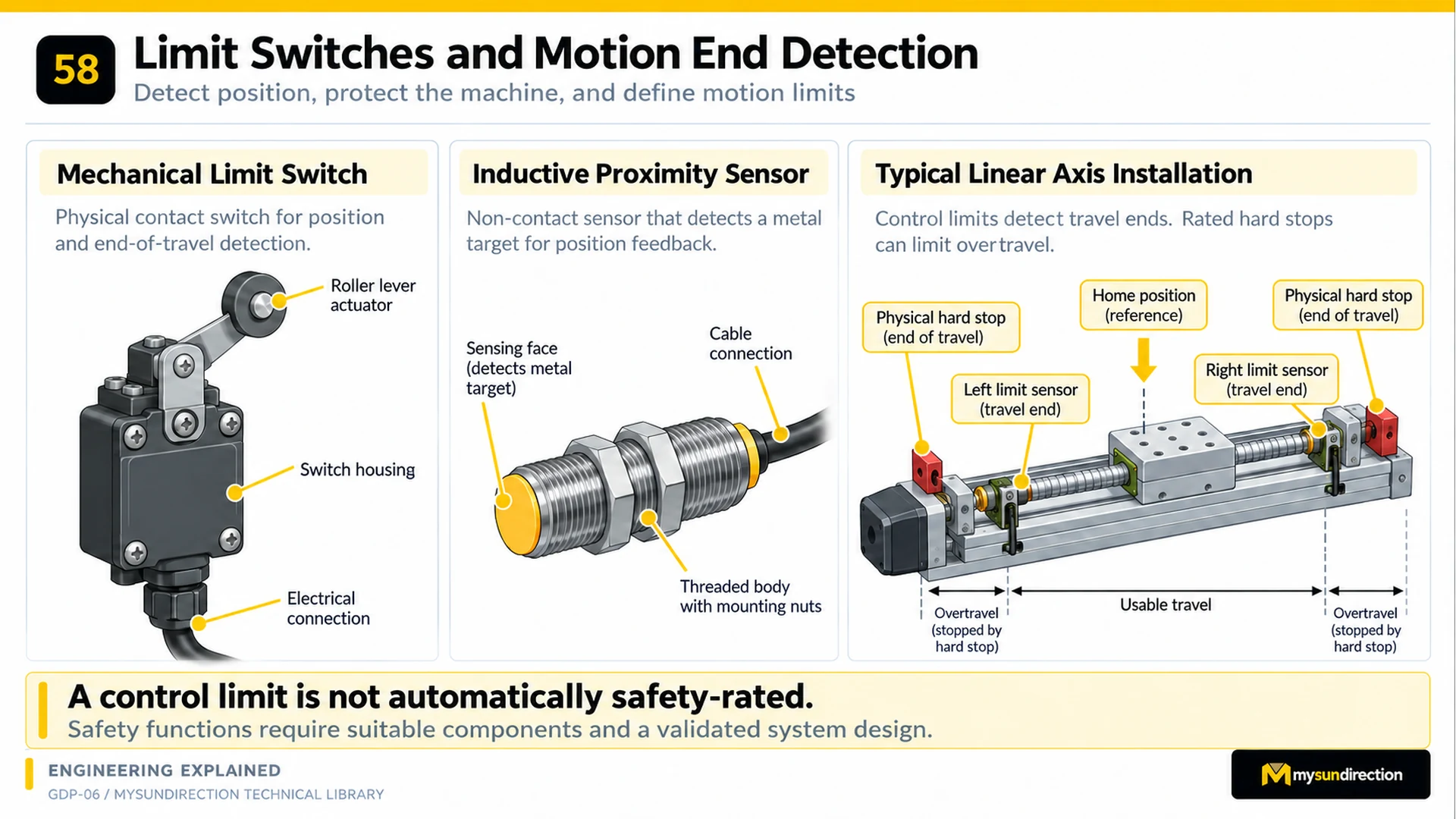

Diagram description
A roller-lever switch and threaded inductive sensor appear beside an axis. Separate markers show a home position, end limits, usable travel, remaining overtravel distance and hard stops at both ends.
| Layer | Purpose | Important limitation |
|---|---|---|
| Home or reference sensor | Establish a repeatable machine coordinate after startup or recovery | Repeatability is not absolute accuracy; homing logic must handle starting on the sensor and wrong-direction travel |
| Software limit | Prevent commanded motion beyond configured coordinates | Depends on valid position state, configuration and functioning control software |
| Hardware control limit | Signal approach to a travel boundary and command a controlled stop | A standard input and switch are not automatically safety-rated or independent |
| Overtravel or final limit | Act through an appropriately independent channel before mechanical damage | Required architecture and component rating depend on the risk assessment |
| Mechanical stop | Physically bound residual travel | Must be rated for credible impact energy and may not be a routine stopping method |
| Safety-related function | Reduce risk from hazardous motion to a required performance level | Needs suitable components, architecture, diagnostics, validation and fault response; the sensor alone is not the function |
A first stopping-distance screen
s_stop ≈ vt_response + v² ÷ (2a_stop)
This is a preliminary one-dimensional estimate. Add sensor and controller tolerances, scan and communication delay, drive response, brake build-up, load and friction variation, gravity, jerk limits and a justified margin. Validate the actual worst-case stop.
- s_stop
- estimated stopping distance, m
- v
- speed when the limit is detected, m/s
- t_response
- total delay before effective deceleration, s
- a_stop
- assumed positive deceleration magnitude, m/s²
A limit placed at the physical end leaves no room for detection, logic, drive response and deceleration. Position it upstream by the validated stopping distance plus tolerance and residual overtravel allowance.
| Consideration | Mechanical limit switch | Inductive proximity sensor |
|---|---|---|
| Interaction | Physical actuator contact and overtravel | Non-contact detection of a suitable metal target |
| Wear | Actuator and contacts have mechanical life limits | No target contact, but electronics and mounting remain subject to ageing and damage |
| Target | Cam geometry, direction, speed and actuator force matter | Metal type, target size, sensing distance and mounting affect operation |
| Output | Contact arrangement and direct-opening construction depend on exact model | PNP/NPN, normally open/closed, voltage drop and leakage depend on exact model |
| Environment | Ingress, corrosion, vibration and contamination ratings required | Ingress, temperature, EMC, metal chips and adjacent-metal mounting required |
| Safety use | Only a suitable safety device in a validated architecture can serve a safety role | A standard proximity sensor is not safety-rated merely because it is non-contact |
Commission travel protection deliberately
- 1. Verify direction at reduced energy.Confirm command, encoder sign and positive/negative limit mapping before allowing full travel.
- 2. Exercise each device independently.Observe raw input, controller state, drive response and diagnostic behavior without relying only on the final motion result.
- 3. Test approach conditions.Use both directions and defined speeds, loads and warm conditions; include starting between, on and beyond expected reference states where the procedure allows.
- 4. Measure the stop.Record detection position, delay, deceleration, final position and variation rather than assuming configured values were achieved.
- 5. Test credible faults.Follow the safety plan for open circuits, stuck signals, invalid position, lost communication or other required fault cases.
- 6. Preserve access and settings.Lock adjustable brackets, mark accepted positions and document replacement, inspection and proof-test intervals.
Use Sizing a Motor and Screw as One System for the calculation package, Connecting and Mounting a Motor Correctly for datum-sensitive assembly, and Lifetime and Safety Checks for a Motion Axis for the final capacity and lifecycle gates. Together, they turn a collection of parts into a design that can be built, inspected, commissioned and maintained.
Selection boundary and evidence to keep with the decision
Treat “Drawings, Fasteners and Motion Limit Switches” as a selection problem, not only a definition. Record the required result, alternatives considered, the controlling assumption and the condition that would change the choice.
Keep evidence proportional to consequence: 7. Check completeness and revision. Raise conflicts or missing requirements formally; never invent an unstated tolerance or manufacture from an obsolete sheet. Revisit the decision when the load, environment, duty, interface, regulation or maintenance plan changes.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Drawings, Fasteners and Motion Limit Switches?
1. Identify the document. Read part number, title, revision, sheet number, status and change record before interpreting geometry.
Which assumption can change the conclusion?
Load, motion profile, geometry, alignment, duty, lubrication and environment match the selected mechanism and ratings.
What can go wrong if I copy the example directly?
Do not scale a production drawing. Printing, display and reproduction can change scale, and perspective views are not measurement views. Use stated dimensions and controlled CAD or model data only when the drawing authorizes it. Ask for clarification when dimensions conflict or a feature is underdefined.
How do I verify the result in the real system?
7. Check completeness and revision. Raise conflicts or missing requirements formally; never invent an unstated tolerance or manufacture from an obsolete sheet.
