Where Automatic Positioning Is Useful
Recognize machine-alignment and positioning problems beyond solar arrays.
You are applying “Where Automatic Positioning Is Useful” to a real system and need the concept, assumptions and verification boundary to stay clear.
Recognize direction, position and alignment tasks, decide whether feedback and automation add value, and integrate standard motors, drives, sensors, controllers and structures around measurable requirements.
- Select or check first
- Automate a measurable positioning problem. A good requirement says what must move, between which limits, how accurately and repeatably, how fast, against what load and environment, and what must happen after a fault or loss of power. Without that, component selection is guesswork.
- Controlling assumption
- Sensors, controller logic, actuator limits, timing, fault response and environmental conditions are defined together.
- Top risk
- A controller does not make motion safe by itself. Moving machinery can crush, shear, entangle, eject or drop a load. Apply risk assessment and risk reduction across transport, installation, setup, production, cleaning, maintenance and foreseeable misuse.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Where Automatic Positioning Is Useful”
Automation-and-control basics
An automatic system measures a condition, decides what it means and commands an actuator while checking whether the expected result actually happened.
- Sensor
- A sensor converts a physical condition into a signal. Its range, uncertainty, response time, environment and failure behaviour matter as much as its nominal output.
- Controller
- A controller reads inputs, applies logic or a control law and issues outputs. Software cannot correct missing measurements, inadequate hardware authority or unsafe architecture.
- Actuator
- An actuator turns a command into physical action, such as motor torque, valve position or switching. Its real limits depend on load, supply, drive and duty.
- Feedback
- Feedback compares measured behaviour with the desired state so error can be corrected. Open-loop command assumes the action occurred; closed-loop control checks it.
- Fault and safe state
- A fault is an abnormal condition that may invalidate control. The safe response must be defined from the hazard and may require independent hardware, not only software.
How to use this article: Trace one complete chain—physical condition, sensor, signal conditioning, controller, drive, actuator and feedback—then ask how each link can fail.
On this page
Automatic positioning is useful when a machine must place, point, align or follow something repeatedly under changing conditions. The application may be a solar tracker, antenna, telescope, inspection head, conveyor stop, camera, valve, tool or tilting fixture. The shared engineering problem is not “add a motor”; it is to define the target, motion, accuracy, load, hazards and recovery behavior, then choose a mechanism and control architecture that can meet them.

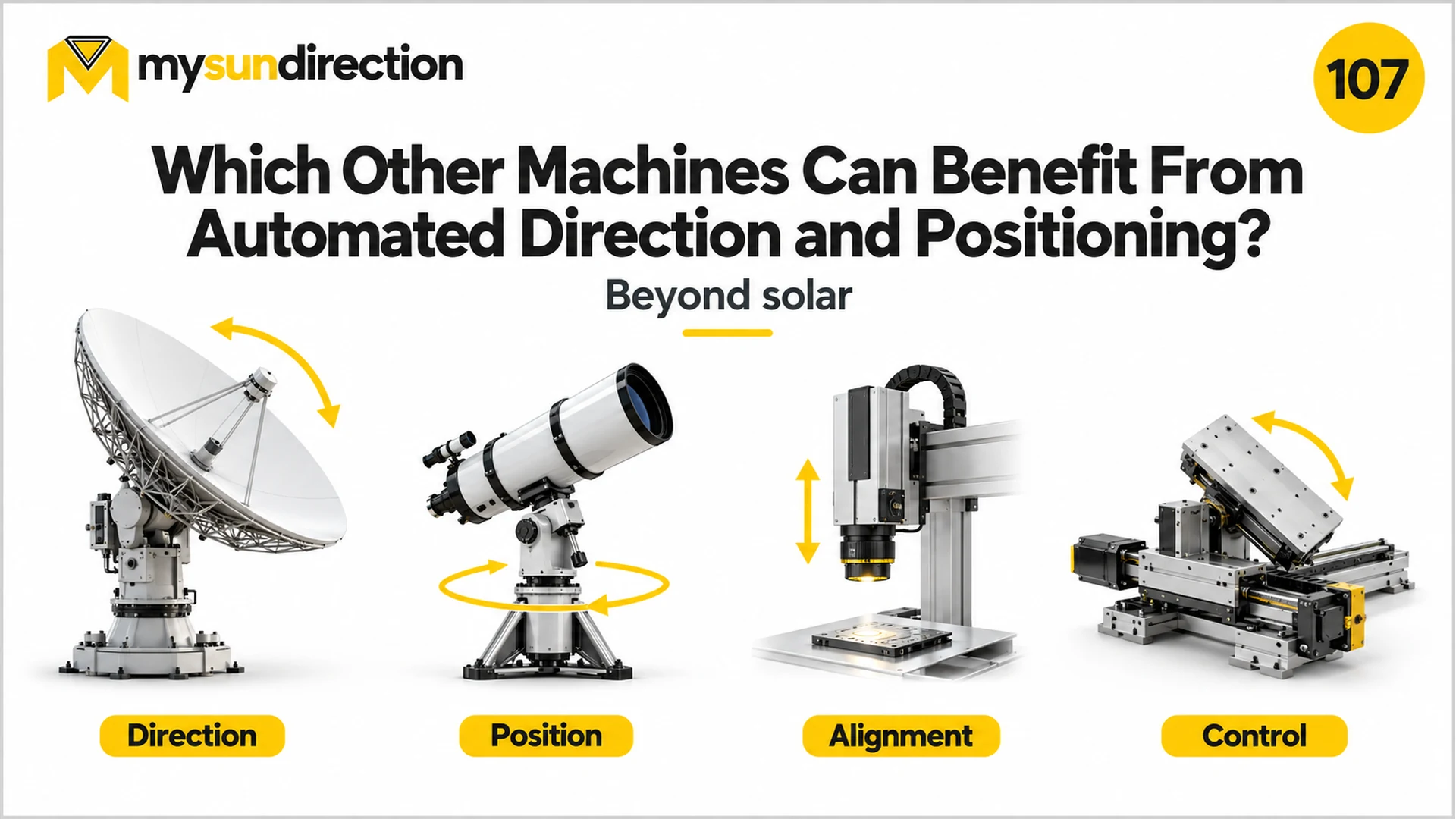

Direction, position, alignment and control appear in many machines
Diagram description
Yellow arrows indicate illustrative axes for direction, position, alignment and control; the pictured machines are application examples, not complete designs.
| Pattern | Example | Primary measure | Common disturbance |
|---|---|---|---|
| Point at a target | Antenna, telescope or camera | Angular position and pointing error | Wind, backlash and moving target |
| Place at a coordinate | Linear slide, stop or pick axis | Linear position and settling | Payload change, friction and compliance |
| Align two features | Inspection head, web guide or coupling station | Offset or angular misalignment | Part tolerance and sensor noise |
| Follow a changing command | Tracking axis or scanning platform | Following error over time | Acceleration limits and delay |
| Index between stations | Turntable or conveyor | Repeatable stop and sequence state | Variable inertia and product jam |
| Hold against disturbance | Valve, gimbal or tilted fixture | Position while loaded | Gravity, process force and power loss |
Not every useful motion needs the same feedback
| Approach | What it knows | Good fit | Important limitation |
|---|---|---|---|
| Timed/open-loop actuation | Command duration or assumed motion | Simple bounded motion with generous tolerance | Cannot directly confirm actual position |
| End-switch positioning | Reached one or more discrete limits | Two-position or homing tasks | Provides states, not continuous position |
| Incremental feedback | Movement relative to a known reference | Repeatable paths after homing | Can lose absolute relationship after power loss or missed counts |
| Absolute position feedback | Position within the sensor's declared range | Recovery and multi-position tasks | Accuracy still includes mounting, mechanism and calibration errors |
| Vision or external metrology | Position of the actual part or feature | Alignment where mechanism coordinates are insufficient | Lighting, latency, field of view and validation matter |
Separate accuracy from repeatability
position error = actual position − commanded position
Accuracy concerns closeness to the true target; repeatability concerns how tightly repeated results cluster. A machine can repeat the same biased location very well. Resolution, backlash, compliance, sensor error, control following error and calibration all contribute to the observed result.
- actual position
- position measured by an appropriate reference
- commanded position
- requested target in the same coordinate system

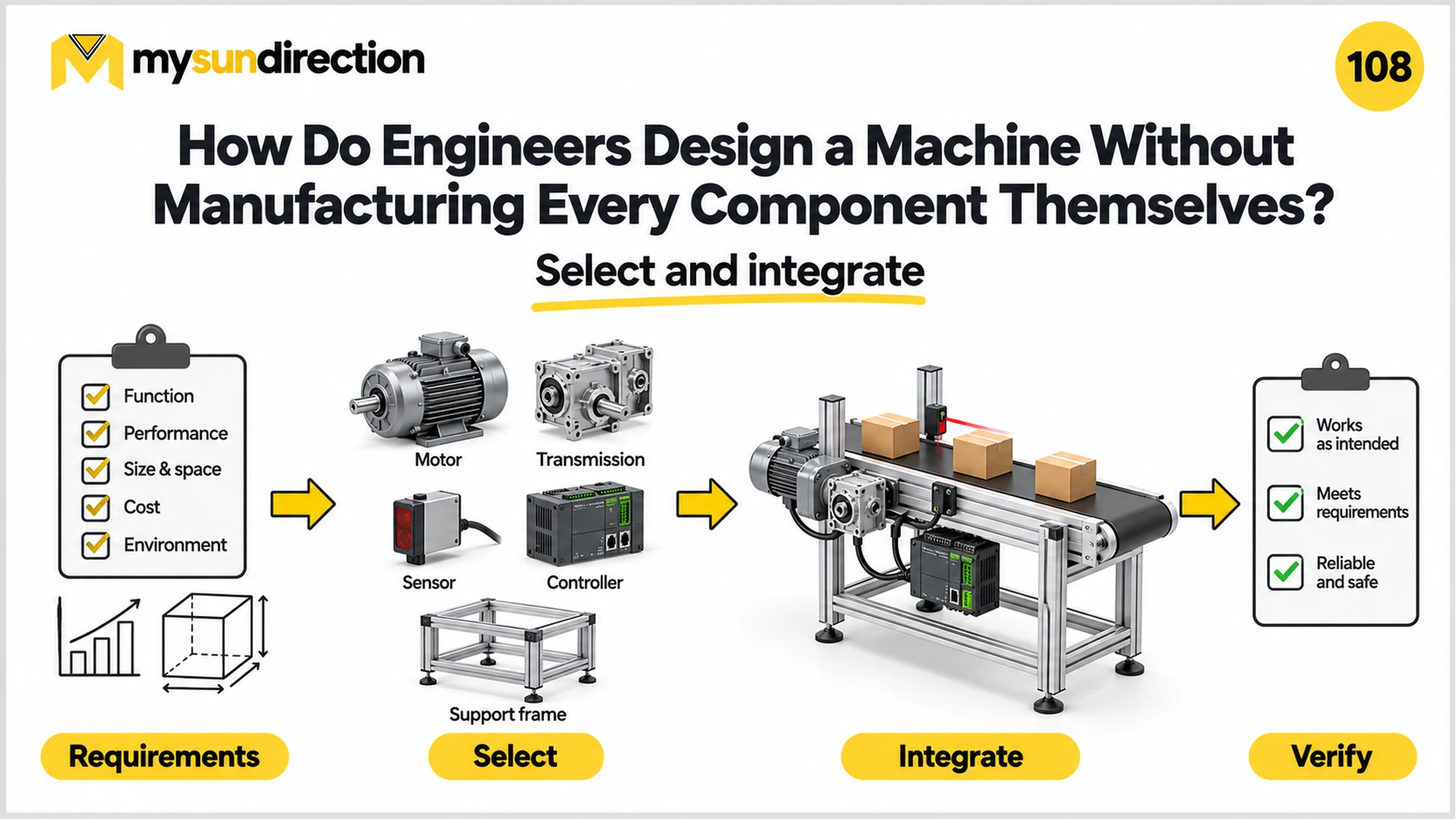

Engineers usually select and integrate standard components
Diagram description
The conveyor is an illustrative system. Product appearance does not identify a real model or prove suitability.
| Requirement | Likely design choices | Verification evidence |
|---|---|---|
| Force/torque and speed | Motor, drive, transmission ratio and duty | Measured motion and thermal margin across the load range |
| Position range and resolution | Mechanism travel, sensor type and controller | Calibrated position error and repeatability |
| Stopping and holding | Brake, self-locking mechanism, controlled stop or counterbalance | Behavior at command stop, fault and loss of power |
| Environment | Enclosure, sealing, materials, lubrication and temperature ratings | Inspection and tests under declared conditions |
| Interfaces | Couplings, mounting datums, cables, protocols and power supplies | Fit, signal integrity, EMC and serviceability checks |
| Safety | Inherently safer geometry, guards, protective devices and safety-related controls | Risk assessment, validation and documented residual risk |
| Lifecycle | Standard parts, spares, diagnostics and maintainability | Maintenance plan and controlled replacement compatibility |
Example: turning a manual inspection fixture into one automatic axis
First record the required travel, payload, permitted cycle time, acceptable alignment error, repeatability, human access and failure response. Choose a linear mechanism and motor/drive from calculated force, speed, inertia and duty—not visual similarity. Choose feedback that measures the error that matters, add homing or absolute recovery, define hard and controlled limits, then verify unloaded, rated-load, disturbed and fault cases. Standard components shorten development only when their interfaces and ratings are engineered as a system.
For a real solar example of separating position control from the energy circuit, read Why Tracker Controls Should Stay Separate From PV Wiring. For the mechanical interfaces that often define positioning quality, begin with Rails, Shafts and Small Supporting Parts.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Where Automatic Positioning Is Useful?
Automate a measurable positioning problem. A good requirement says what must move, between which limits, how accurately and repeatably, how fast, against what load and environment, and what must happen after a fault or loss of power. Without that, component selection is guesswork.
Which assumption can change the conclusion?
Sensors, controller logic, actuator limits, timing, fault response and environmental conditions are defined together.
What can go wrong if I copy the example directly?
A controller does not make motion safe by itself. Moving machinery can crush, shear, entangle, eject or drop a load. Apply risk assessment and risk reduction across transport, installation, setup, production, cleaning, maintenance and foreseeable misuse.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
