Choosing a Controller and Its Enclosure
Understand input counts, motor outputs, communications, power and cabling.
You must choose between real alternatives covered by “Choosing a Controller and Its Enclosure” for a defined machine, circuit or installation.
Select a controller and enclosure from verified signal, output, communication, environment, thermal, power, wiring and future-expansion requirements.
- Select or check first
- Protocol names are not enough. An Ethernet socket does not prove two devices can exchange the required data. Confirm the exact protocol, client/server or controller/device role, supported objects, data types, update interval, timeout behavior and configuration ownership.
- Controlling assumption
- Sensors, controller logic, actuator limits, timing, fault response and environmental conditions are defined together.
- Top risk
- An enclosure is not permission to mix every circuit. Mains, PV, motor, control, communication and safety circuits can have different insulation, segregation, overcurrent, grounding and disconnect requirements. A qualified designer must apply the governing electrical and machinery rules.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Choosing a Controller and Its Enclosure”
Automation-and-control basics
An automatic system measures a condition, decides what it means and commands an actuator while checking whether the expected result actually happened.
- Sensor
- A sensor converts a physical condition into a signal. Its range, uncertainty, response time, environment and failure behaviour matter as much as its nominal output.
- Controller
- A controller reads inputs, applies logic or a control law and issues outputs. Software cannot correct missing measurements, inadequate hardware authority or unsafe architecture.
- Actuator
- An actuator turns a command into physical action, such as motor torque, valve position or switching. Its real limits depend on load, supply, drive and duty.
- Feedback
- Feedback compares measured behaviour with the desired state so error can be corrected. Open-loop command assumes the action occurred; closed-loop control checks it.
- Fault and safe state
- A fault is an abnormal condition that may invalidate control. The safe response must be defined from the hazard and may require independent hardware, not only software.
How to use this article: Trace one complete chain—physical condition, sensor, signal conditioning, controller, drive, actuator and feedback—then ask how each link can fail.
On this page
Choose a controller from a written signal and behavior list, not from a headline input count. Each point needs a signal type, electrical range, update requirement and fault response. The enclosure is part of the system too: it must protect the equipment, release its heat, manage condensation and preserve safe wiring clearances. A controller with spare terminals can still be unsuitable if its outputs cannot drive the intended interfaces, its communications do not match, or its cabinet cannot survive the site.
Begin with an I/O map, not a controller model

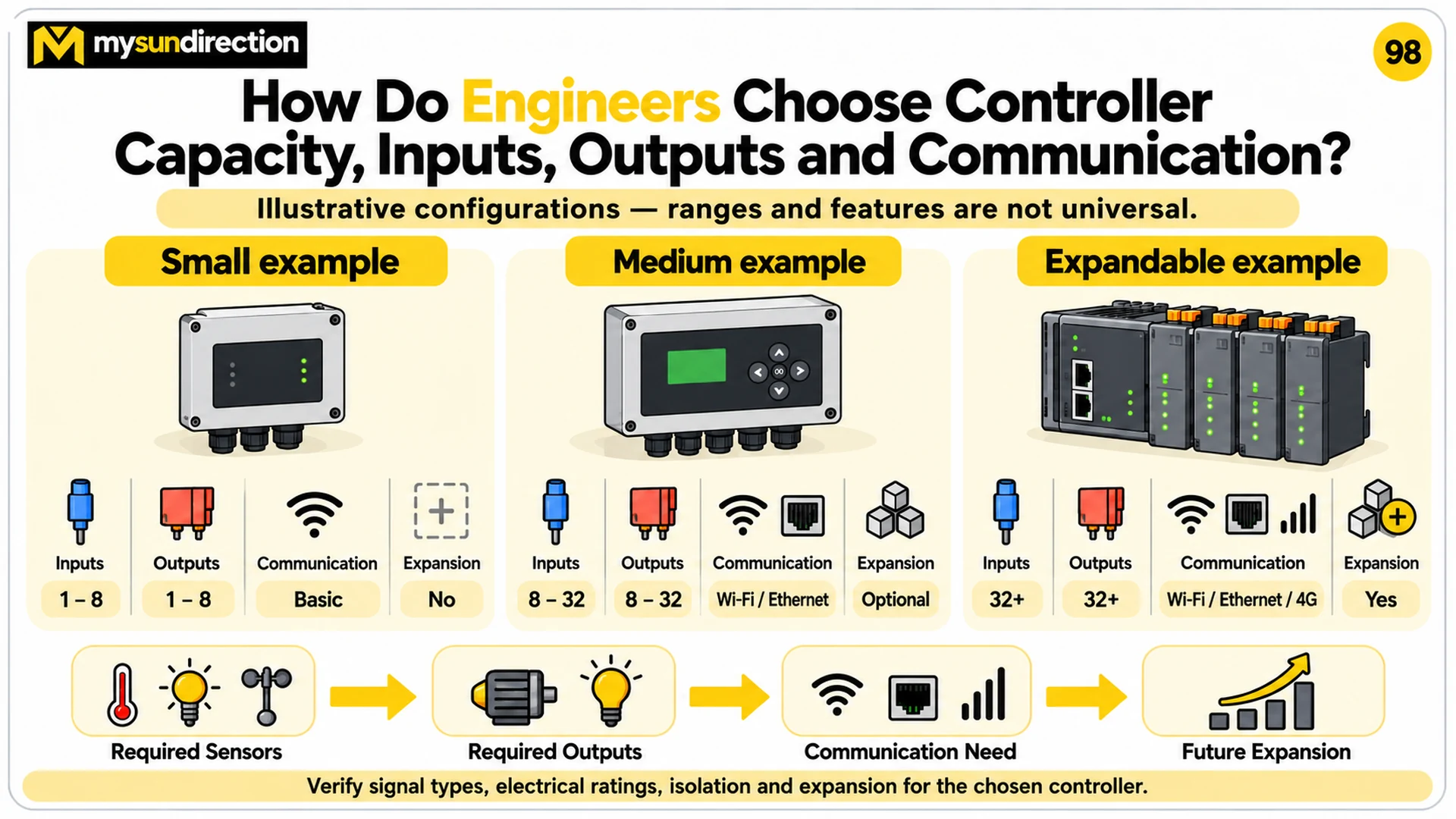

Diagram description
The selection flow begins with required sensors and outputs, then checks communications and future expansion. Actual channel types and electrical ratings must be checked in the selected hardware documentation.
| Requirement | Questions to record | Common mistake |
|---|---|---|
| Digital input | Voltage, sourcing/sinking convention, switching frequency and input filtering | Counting a pulse input as an ordinary slow contact |
| Analog input | Voltage or current range, resolution, accuracy, isolation and sensor supply | Assuming every analog channel accepts every signal |
| Temperature input | RTD or thermocouple type, wiring and cold-junction needs | Connecting it to a general voltage input without conditioning |
| Digital output | Relay or transistor, load current, inrush, switching rate and off-state behavior | Driving a motor or contactor coil without interface checks |
| Motion command | Step/direction, analog reference, fieldbus or dedicated axis function | Treating a normal output as a complete motor drive |
| Safety function | Required risk reduction and certified architecture | Assigning safety work to ordinary I/O by default |
Keep nominal and worst-case values separate. A relay coil may have pickup current and a suppressor; a lamp or capacitive input may have inrush; a transistor output has voltage, current and thermal limits. Motors normally need a suitable drive, starter or contactor interface. Controller outputs command that power stage—they do not automatically provide motor power or motor protection.
Capacity includes timing, memory and communication
| Area | Verify | Evidence before purchase |
|---|---|---|
| Execution | Scan time, fast tasks, interrupts and motion update rate | A timing budget with worst-case program and traffic |
| Memory | Program, retained data, recipes, logs and firmware overhead | Configured project estimate plus service margin |
| Expansion | Module count, bus power, rack rules and supported combinations | Manufacturer configuration or selection tool |
| Communication | Physical layer, protocol role, device count, update rate and cybersecurity boundary | An interface schedule naming both endpoints |
| Diagnostics | Channel status, fault history, remote access and time synchronization | A commissioning and maintenance plan |
| Lifecycle | Supply, spares, firmware compatibility and replacement procedure | Approved part list and backup/restore test |
The enclosure has environmental and thermal jobs

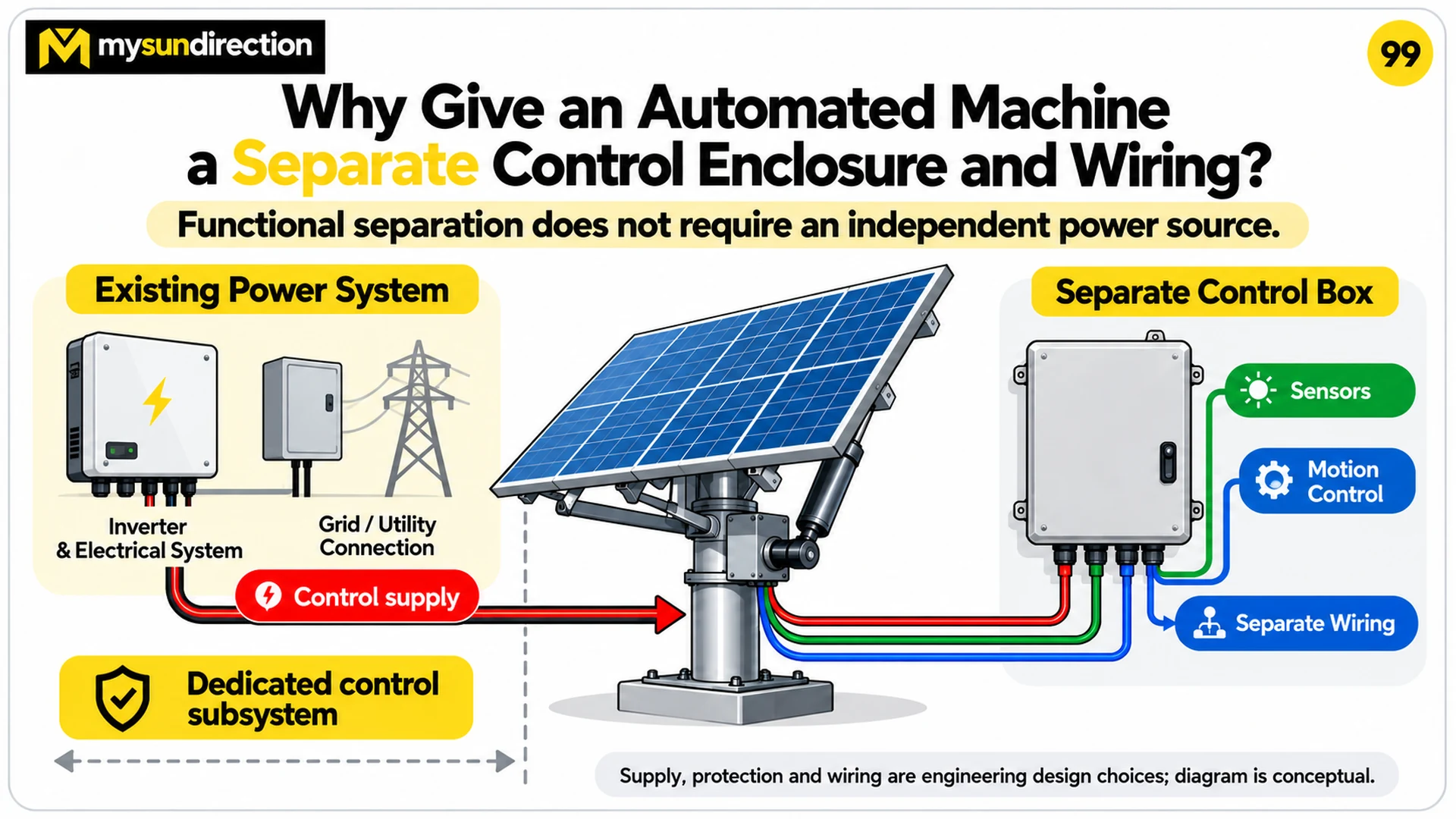

Diagram description
The conceptual diagram is not a wiring drawing and does not specify protective-device placement, conductor sizes, grounding or power-source topology.
| Condition | Design question | Typical evidence |
|---|---|---|
| Dust and water | Which ingress events and installation direction are credible? | Required IP degree or NEMA Type and compliant glands |
| Sun and temperature | What are ambient maximum, solar loading and internal losses? | Thermal calculation and temperature test |
| Condensation | Can temperature cycling place surfaces below dew point? | Drain, heater, ventilation or sealed strategy with inspection |
| Corrosion | Are salt, chemicals or dissimilar metals present? | Material, coating and hardware specification |
| Cable entry | Do entries preserve rating, strain relief and bend radius? | Entry schedule and installation inspection |
| Service access | Can terminals, disconnects and modules be reached safely? | Layout drawing, labels and verified clearances |
NEMA enclosure Types and IEC IP codes describe different test systems; one should not be casually substituted for the other. The weakest opening, gland, fitting or unsealed modification can limit the installed assembly. Ratings also do not by themselves address internal condensation or the heat generated by power supplies, drives and relays. Use manufacturer spacing and temperature rules, then verify the completed cabinet under credible load and weather.
A practical selection worksheet
- Freeze the I/O list with electrical type, range, speed, normal state and fault state.
- Draw the power and information boundaries, including every motor drive and external supply.
- Calculate execution, memory, communication and expansion margin with documented assumptions.
- Define ambient temperature, ingress, sunlight, condensation, corrosion and service-access conditions.
- Create enclosure thermal, protection, grounding and cable-entry designs using applicable rules.
- Bench-test representative sensors, outputs and communications before site installation.
- Commission channel by channel and preserve the configuration, drawings and backups.
Use Open-Loop Commands Versus Real Feedback to decide which measurements close the control loop, and Why Tracker Controls Should Stay Separate From PV Wiring for the solar-specific boundary between tracker control and photovoltaic power wiring.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Choosing a Controller and Its Enclosure?
Protocol names are not enough. An Ethernet socket does not prove two devices can exchange the required data. Confirm the exact protocol, client/server or controller/device role, supported objects, data types, update interval, timeout behavior and configuration ownership.
Which assumption can change the conclusion?
Sensors, controller logic, actuator limits, timing, fault response and environmental conditions are defined together.
What can go wrong if I copy the example directly?
An enclosure is not permission to mix every circuit. Mains, PV, motor, control, communication and safety circuits can have different insulation, segregation, overcurrent, grounding and disconnect requirements. A qualified designer must apply the governing electrical and machinery rules.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
