Safe Operation in Wind and Long-Term Maintenance
Learn how operating conditions, inspections and reliability shape automation systems.
You are applying “Safe Operation in Wind and Long-Term Maintenance” to a real system and need the concept, assumptions and verification boundary to stay clear.
Design weather-aware automated motion around site-specific structural limits, validated protective states, reliable sensing, inspection, lubrication, wear parts, load cycles, event logs and evidence-based maintenance.
- Select or check first
- Define the required outcome, operating conditions and exact component or system boundary before choosing a part or method.
- Controlling assumption
- Sensors, controller logic, actuator limits, timing, fault response and environmental conditions are defined together.
- Top risk
- Do not wait until the design wind limit to begin moving. The mechanism needs detection, decision and travel time, while gusts can rise and utility power or communication can fail.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Safe Operation in Wind and Long-Term Maintenance”
Automation-and-control basics
An automatic system measures a condition, decides what it means and commands an actuator while checking whether the expected result actually happened.
- Sensor
- A sensor converts a physical condition into a signal. Its range, uncertainty, response time, environment and failure behaviour matter as much as its nominal output.
- Controller
- A controller reads inputs, applies logic or a control law and issues outputs. Software cannot correct missing measurements, inadequate hardware authority or unsafe architecture.
- Actuator
- An actuator turns a command into physical action, such as motor torque, valve position or switching. Its real limits depend on load, supply, drive and duty.
- Feedback
- Feedback compares measured behaviour with the desired state so error can be corrected. Open-loop command assumes the action occurred; closed-loop control checks it.
- Fault and safe state
- A fault is an abnormal condition that may invalidate control. The safe response must be defined from the hazard and may require independent hardware, not only software.
How to use this article: Trace one complete chain—physical condition, sensor, signal conditioning, controller, drive, actuator and feedback—then ask how each link can fail.
On this page
An outdoor automated machine spends years in changing wind, temperature, rain, dust, corrosion and electrical conditions. Its safe operating envelope is therefore not just a set of motion coordinates. The controller must know when conditions leave normal operation, move to a validated protective state while motion is still possible, confirm the result, report failures and support inspection through the system's life. Maintenance then preserves the assumptions on which that response depends.
Wind response is a site-specific operating policy

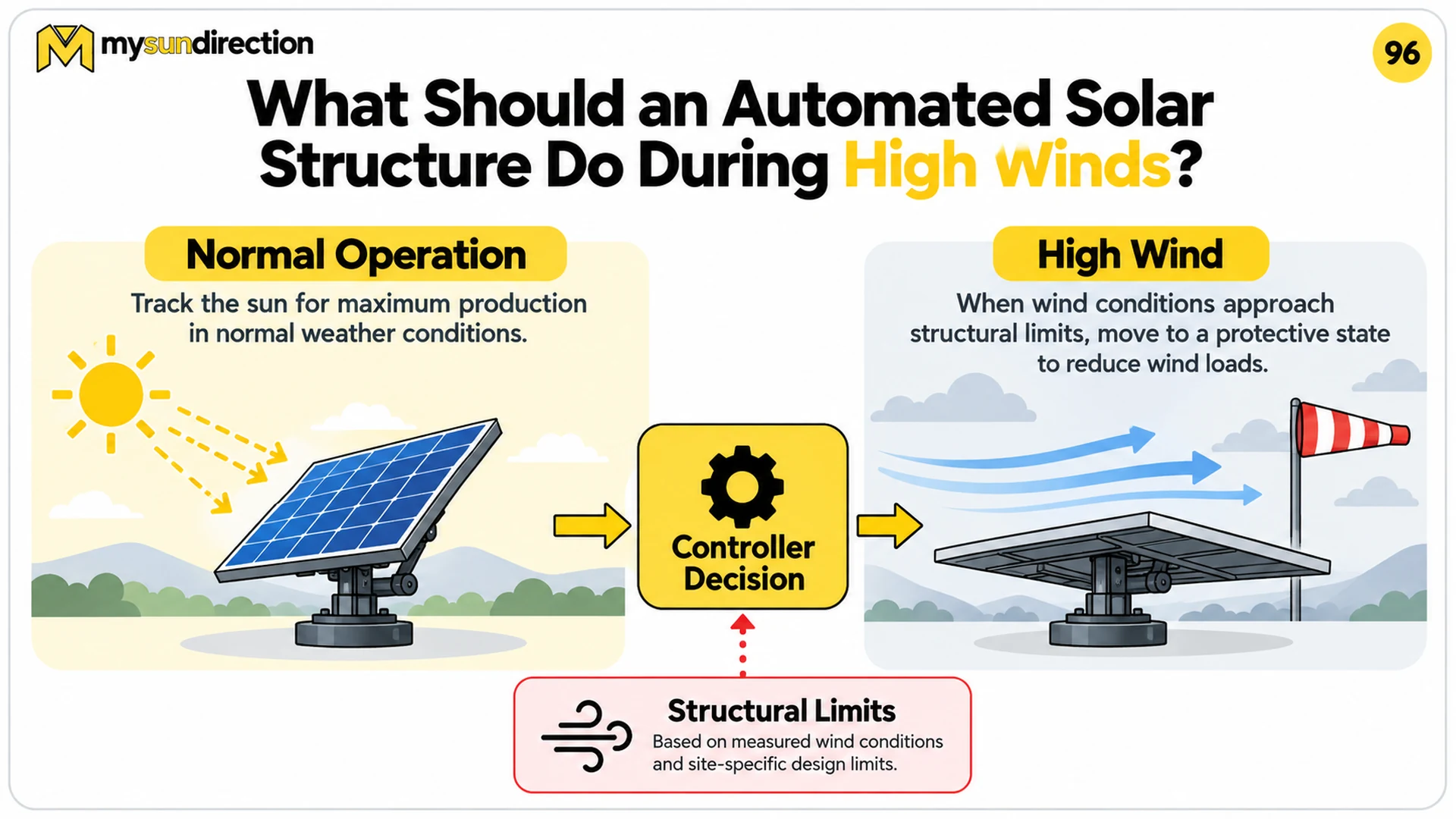

Diagram description
The drawing illustrates one possible response and does not prescribe a universal stow angle or wind threshold. Aerodynamic load depends on wind direction, turbulence, array geometry, terrain, spacing and structural dynamics.
The U.S. Department of Energy notes that tracker manufacturers use wind-indicated stow strategies and that a typical wind-stow position may be near horizontal with a small angle relative to the wind. “Typical” is not a design value. Some structures, wind directions or combined hail/wind policies require a different orientation. Only the tracker supplier's validated envelope, structural engineering, local code and site risk establish the correct threshold and target.
Why wind-speed error matters
q = ½ρv²
Dynamic pressure q is a useful scaling quantity, not the force on the tracker by itself. Actual force and moment also depend on pressure coefficients, angle, gusts, shielding, terrain, row interaction and structural response. Because of the square, a 20 percent increase in speed produces about a 44 percent increase in q when density is unchanged. Never derive a stow threshold from this equation alone.
- q
- dynamic pressure, pascals
- ρ
- air density, kilograms per cubic metre
- v
- air speed, metres per second
| State | Entry evidence | Required behavior |
|---|---|---|
| Normal tracking | Wind data plausible and comfortably inside normal envelope | Follow target while monitoring sensor health and motion margin |
| Warning | Sustained level or forecast approaches trigger | Limit risky motion, check stow path and notify operations |
| Stowing | Declared threshold/policy reached | Move with bounded speed and torque; monitor progress and obstruction |
| Protective hold | Validated position confirmed | Prevent ordinary tracking commands; continue condition monitoring |
| Stow fault | Position not reached in allowed time or feedback disagrees | Escalate alarm and execute the engineered fallback |
| Recovery | Conditions below a lower release threshold for required time | Inspect/diagnose as policy requires, then return under controlled motion |
| Failure | Risk | Design evidence |
|---|---|---|
| Wind sensor stuck low | Tracker remains in production state | Diversity, forecast comparison, heartbeat or diagnostic interval |
| Wind sensor stuck high | Unnecessary downtime and cycling | Plausibility, second evidence and alarm policy |
| Loss of grid power | Stow cannot complete | Fail-safe mechanics or sized backup energy under worst conditions |
| Actuator jam/skew | Structure loads increase while command continues | Position disagreement, current/torque monitoring and independent limit |
| Communication loss | Remote command or weather data becomes stale | Local autonomous policy and data-age limit |
| Stow-position sensor fault | Controller assumes protection without proof | Independent confirmation and timeout |
| Conflicting hail policy | Wind-safe and hail-safe orientations differ | Site-specific hazard priority and supplier-approved logic |
Reliability is created by design and preserved by maintenance

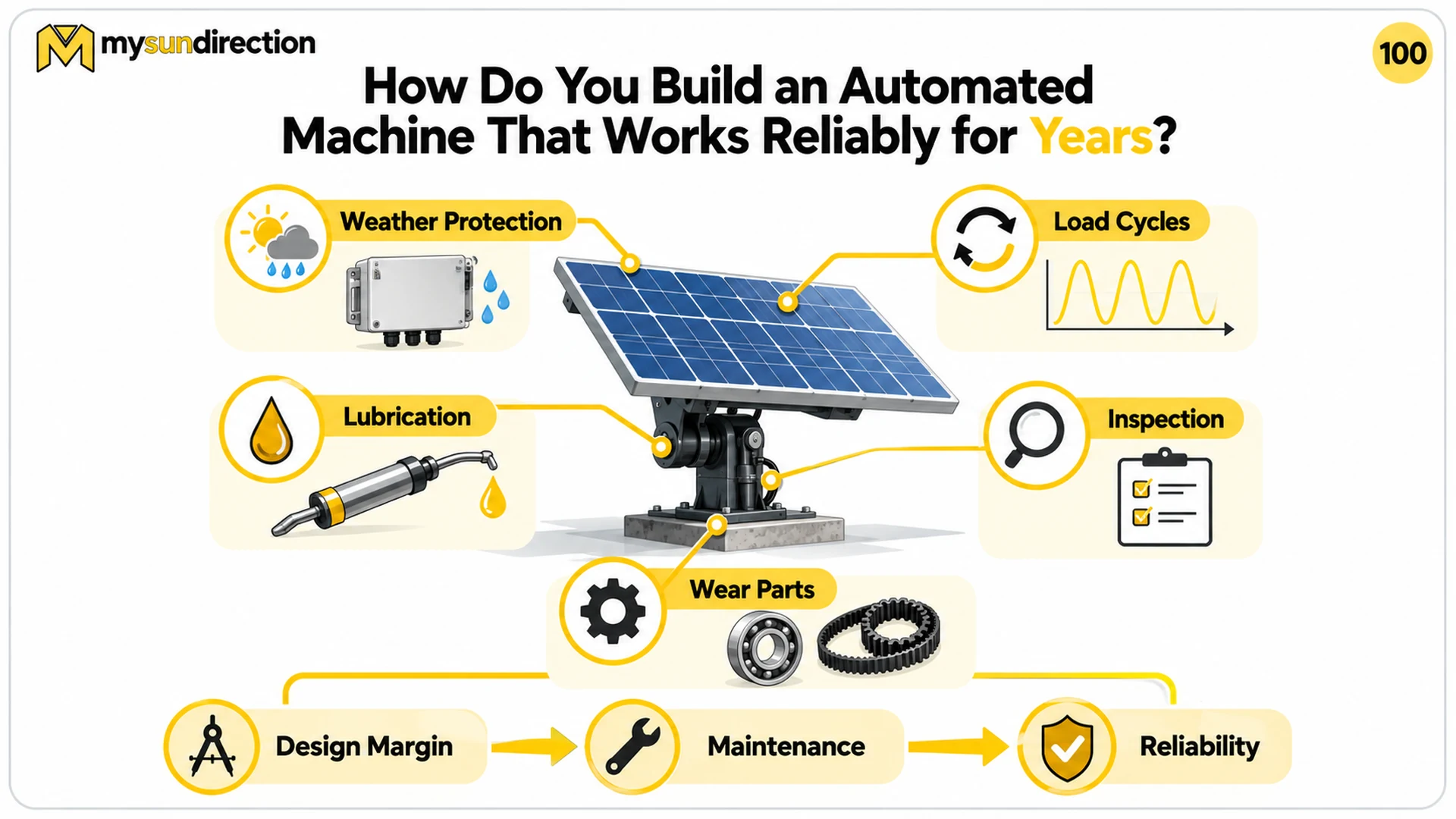

Diagram description
The diagram is a lifecycle map rather than a maintenance interval. Lubricant, interval, wear limits and replacement parts must come from the equipment documentation and observed duty.
| Layer | Examples | Evidence kept |
|---|---|---|
| Routine observation | Noise, vibration, water entry, cable movement, corrosion, loose covers | Dated condition and photographs |
| Functional test | Limits, wind stow, alarms, local/remote commands, backup power | Trigger, response time, final state and exceptions |
| Mechanical inspection | Fastener torque policy, cracks, alignment, backlash, bearings, seals | Measurements against acceptance criteria |
| Lubrication | Correct product, quantity, point and contamination control | Date, operating hours/cycles and material batch where needed |
| Electrical inspection | Enclosure, glands, grounding, surge devices, connectors and thermal signs | Qualified inspection/test results |
| Condition monitoring | Motor current, travel time, vibration, temperature and repeated error | Trend with operating context, not isolated numbers |
| Corrective action | Repair, parameter change or component replacement | Cause, part/configuration, verification and return-to-service approval |
Choose intervals from duty, consequence and evidence
NREL's PV operation-and-maintenance guidance separates preventive, corrective and condition-based work and emphasizes documentation, safety and performance evidence. Calendar intervals are only a starting point. A tracker that moves twice daily in a sheltered site and one that repeatedly stows in gusty, dusty conditions accumulate different cycles, contamination and shock loads. Manufacturer instructions, warranty terms, jurisdictional requirements, failure consequence and field trends must shape the actual plan.
Simple availability measure
Availability = time capable of required operation / scheduled time
Define both numerator and denominator before comparing systems. Weather stow, planned maintenance, grid outage, communication loss and curtailed operation may be classified differently by contract. Availability also does not measure safety, pointing accuracy, energy yield or damage severity; use it with those indicators rather than alone.
- time capable of required operation
- time meeting the declared functional criteria
- scheduled time
- period during which availability is contractually or operationally expected
| Trend | Possible interpretation | Do not assume |
|---|---|---|
| Travel time increasing | Friction, voltage, load or lubrication changed | Motor is necessarily failing |
| Current increasing at one angle | Geometry, wind, binding or imbalance | A single global threshold is sufficient |
| Position error after reversal | Backlash or compliance growth | Encoder resolution caused it |
| Repeated stow faults | Sensor, backup power, actuator or policy issue | Weather alone is responsible |
| Enclosure humidity/corrosion | Seal, gland, condensation or drainage problem | Higher ingress rating fixes existing installation detail |
| Fastener movement | Vibration, preload or joint design issue | Retightening without engineering review is a lasting repair |
Commission the lifecycle, not only the first movement
| Deliverable | Minimum content |
|---|---|
| Operating envelope | Wind/weather states, thresholds, hysteresis, stow target and recovery authority |
| As-built baseline | Travel times, currents, positions, noise/vibration and photographs |
| Fault matrix | Detection, timeout, final state, alarm and manual recovery for credible faults |
| Maintenance plan | Task, interval trigger, competence, safe method, material and acceptance criterion |
| Spares/configuration | Approved parts, firmware, parameters, backups and change control |
| Event record | Timestamped weather, state, command, actual position, alarms and acknowledgements |
| Periodic proof test | How protective functions are exercised and results retained |
Compare fixed and moving solar structures in Fixed Panels Versus Solar Tracking. For service ownership and lifecycle planning, continue with A Practical Solar Automation Service Lifecycle and Lifetime and Safety Checks for a Motion Axis.
Selection boundary and evidence to keep with the decision
Treat “Safe Operation in Wind and Long-Term Maintenance” as a selection problem, not only a definition. Record the required result, alternatives considered, the controlling assumption and the condition that would change the choice.
Keep evidence proportional to consequence: Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test. Revisit the decision when the load, environment, duty, interface, regulation or maintenance plan changes.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Safe Operation in Wind and Long-Term Maintenance?
Define the required outcome, operating conditions and exact component or system boundary before choosing a part or method.
Which assumption can change the conclusion?
Sensors, controller logic, actuator limits, timing, fault response and environmental conditions are defined together.
What can go wrong if I copy the example directly?
Do not wait until the design wind limit to begin moving. The mechanism needs detection, decision and travel time, while gusts can rise and utility power or communication can fail.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
