Understanding the NE555 Timer
See internal thresholds and how a one-shot pulse is generated.
You are applying “Understanding the NE555 Timer” to a real system and need the concept, assumptions and verification boundary to stay clear.
Follow the TI NE555 trigger and threshold comparators through its latch and discharge transistor, then calculate and verify a practical monostable pulse.
- Select or check first
- The CONT pin changes the decision levels. The control-voltage pin exposes the internal divider node. External voltage or noise there changes the threshold and trigger relationship.
- Controlling assumption
- Sensors, controller logic, actuator limits, timing, fault response and environmental conditions are defined together.
- Top risk
- The NE555 output is not a power relay. OUT and DISCH have voltage, current and power-dissipation limits. Inductive loads need an appropriate power stage and clamp path, and every load needs a defined return and supply-decoupling plan.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Understanding the NE555 Timer”
Automation-and-control basics
An automatic system measures a condition, decides what it means and commands an actuator while checking whether the expected result actually happened.
- Sensor
- A sensor converts a physical condition into a signal. Its range, uncertainty, response time, environment and failure behaviour matter as much as its nominal output.
- Controller
- A controller reads inputs, applies logic or a control law and issues outputs. Software cannot correct missing measurements, inadequate hardware authority or unsafe architecture.
- Actuator
- An actuator turns a command into physical action, such as motor torque, valve position or switching. Its real limits depend on load, supply, drive and duty.
- Feedback
- Feedback compares measured behaviour with the desired state so error can be corrected. Open-loop command assumes the action occurred; closed-loop control checks it.
- Fault and safe state
- A fault is an abnormal condition that may invalidate control. The safe response must be defined from the hazard and may require independent hardware, not only software.
How to use this article: Trace one complete chain—physical condition, sensor, signal conditioning, controller, drive, actuator and feedback—then ask how each link can fail.
On this page
The NE555 is easier to understand as two voltage decisions controlling one memory element. A low voltage at TRIG sets an internal latch; a high voltage at THRES resets it. The latch drives OUT and the open-collector DISCH transistor, so a short trigger can create a much longer pulse while an external resistor and capacitor define the timing. This article describes the bipolar Texas Instruments NE555 shown in the figures; other 555-family parts can have different limits and output behavior.

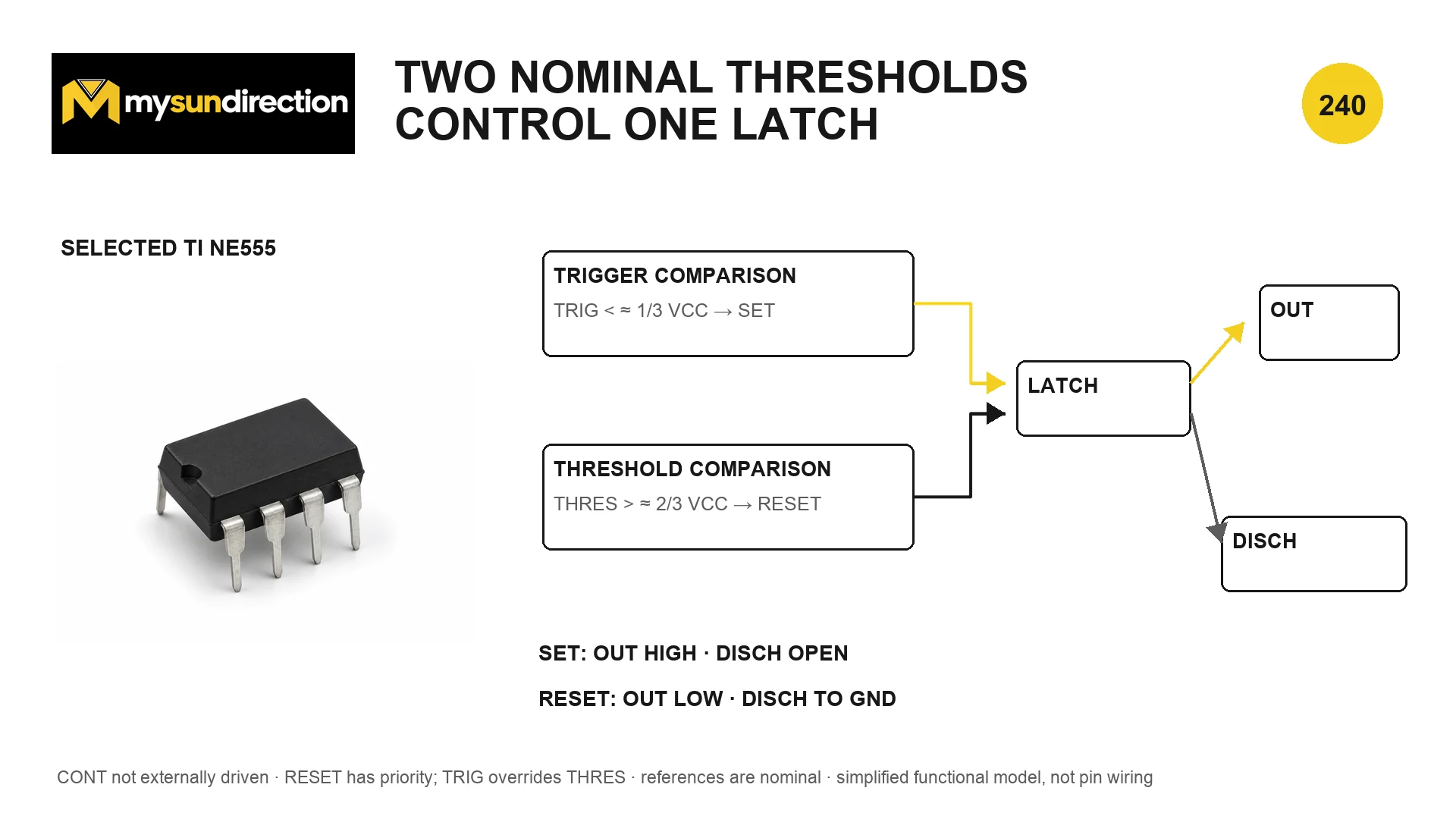

Two nominal thresholds control one latch
Diagram description
The diagram is a functional model, not pin wiring. It assumes the CONT pin is not externally driven and omits transistor-level detail.
| Condition | Latch action | OUT | DISCH |
|---|---|---|---|
| RESET low | Forced reset | Low | On toward ground |
| RESET high; TRIG below trigger level | Set | High | Off/open |
| RESET high; THRES above threshold level | Reset when trigger is not asserting set | Low | On toward ground |
| Between thresholds | Retain previous state | Retains state | Retains complementary action |
| CONT externally driven | Comparison levels shift | Depends on resulting comparisons | Depends on latch |
For the NE555, the data sheet describes a trigger level near one third of supply and a threshold level near two thirds. They are nominal ratios, not precision references. RESET has overriding control when asserted. With RESET inactive, a valid low trigger sets the latch; the data-sheet function table also defines behavior when trigger and threshold conditions occur together. Design from that table and the electrical limits rather than assuming two ordinary comparator outputs are simply wired together.

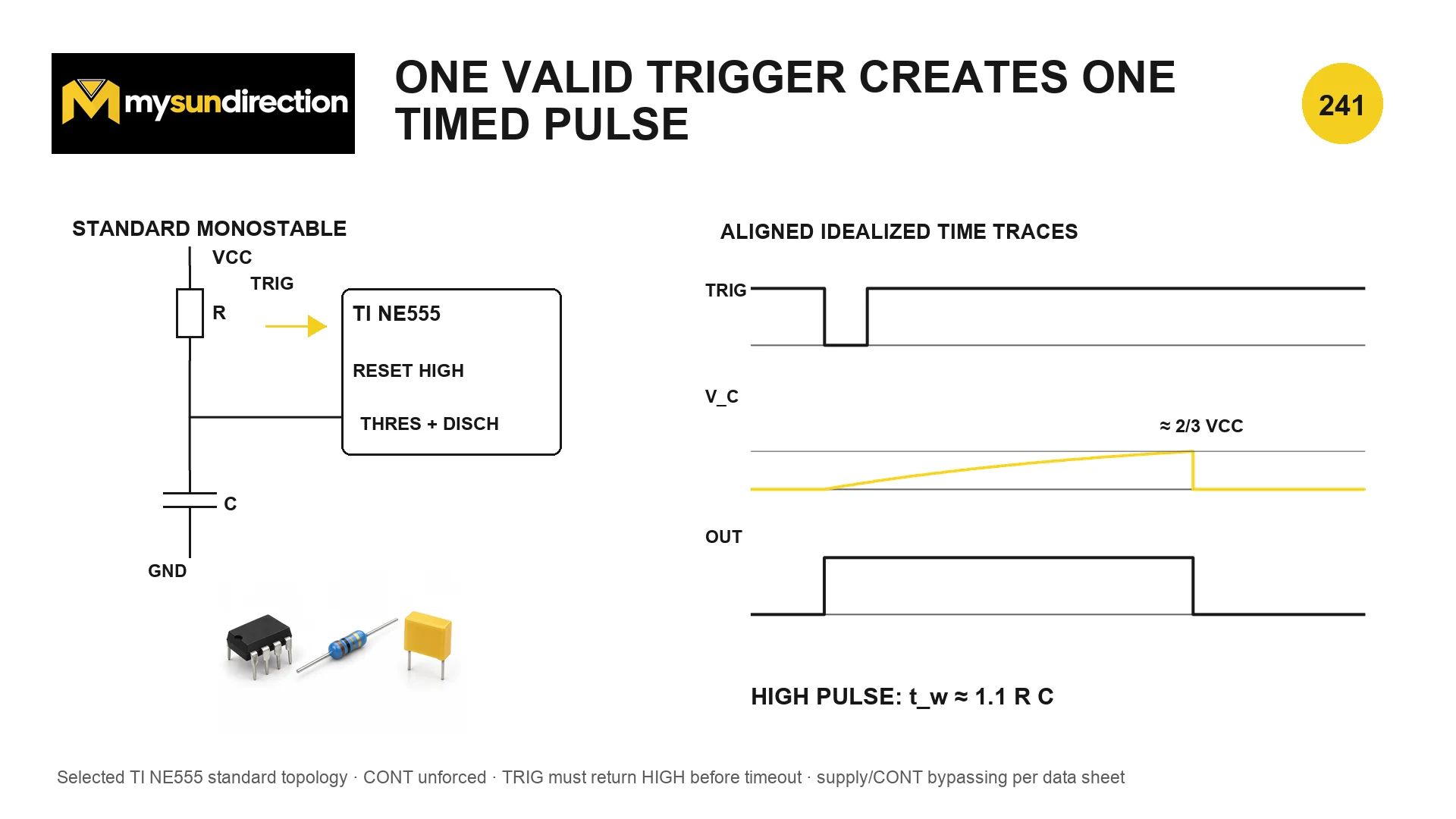

A monostable converts one valid trigger into one timed pulse
Diagram description
The traces are idealized. The trigger must return high before timeout for a normal single pulse; supply and control bypassing follow the selected part data sheet.
One-shot timing sequence
- In the stable state, OUT is low and DISCH holds the timing capacitor near ground.
- A negative-going trigger below the trigger level sets the latch.
- OUT goes high and DISCH turns off, allowing the capacitor to charge through R.
- The capacitor rises exponentially toward the supply voltage.
- When THRES reaches its comparison level, the latch resets if the trigger is no longer active.
- OUT goes low and DISCH turns on, rapidly preparing the capacitor for another valid trigger.
Ideal NE555 monostable pulse width
t_w = −RC ln(1 − 2/3) = RC ln(3) ≈ 1.1RC
The ideal expression assumes the capacitor begins near zero, charges toward a stable supply through R, and trips at two thirds of that supply. Actual width includes resistor and capacitor tolerance, threshold variation, capacitor leakage, discharge saturation, trigger behavior, temperature and board leakage.
- t_w
- nominal high-pulse duration in seconds
- R
- timing resistance in ohms
- C
- timing capacitance in farads
- ln
- natural logarithm
| Contributor | Effect | Design response |
|---|---|---|
| R tolerance and temperature coefficient | Changes charging current | Use a rated component and include drift |
| C tolerance and dielectric behavior | Often dominates nominal error and drift | Select a suitable dielectric and test time/temperature |
| Leakage | Diverts charging current, especially at high R | Check timer, capacitor and board leakage limits |
| Threshold variation | Changes voltage at which timing ends | Use data-sheet limits, not only nominal ratios |
| Trigger width/noise | Can extend, retrigger or falsely start behavior | Condition the input and respect pulse requirements |
| Supply disturbance | Moves internal levels and can couple into timing | Bypass locally and separate high-current switching paths |
| Output loading | Creates voltage drop, heat and supply transients | Stay within electrical and thermal limits; add a driver if needed |
Example: choose a nominal 100 ms pulse
Choosing C = 1 µF gives R ≈ 0.100 s ÷ (1.1 × 1 µF) ≈ 90.9 kΩ, so a nearby standard nominal value may be selected only after an error budget. If both R and C were ±5% before other errors, worst-case component combinations alone would span roughly −9.75% to +10.25% because their product sets time. A measurement across supply, temperature and representative parts is still required.
Verify the waveform at all three important nodes
On a current-limited low-voltage bench supply, observe TRIG, the timing capacitor and OUT with a suitable oscilloscope reference. Confirm the idle state, trigger minimum, capacitor start voltage, threshold crossing, discharge time and repeat interval. Repeat at supply limits and with the real output interface attached. If a microcontroller is available, compare whether its calibrated timer, watchdog and fault diagnostics better match the required accuracy and behavior.
The capacitor waveform behind the timing interval is explained in Why Capacitors Charge and Discharge Gradually. Treat the resulting pulse as one part of a control system, following the evidence principles in Open-Loop Commands Versus Real Feedback.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Understanding the NE555 Timer?
The CONT pin changes the decision levels. The control-voltage pin exposes the internal divider node. External voltage or noise there changes the threshold and trigger relationship.
Which assumption can change the conclusion?
Sensors, controller logic, actuator limits, timing, fault response and environmental conditions are defined together.
What can go wrong if I copy the example directly?
The NE555 output is not a power relay. OUT and DISCH have voltage, current and power-dissipation limits. Inductive loads need an appropriate power stage and clamp path, and every load needs a defined return and supply-decoupling plan.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
