Upgrading an Existing Machine With Sensors and Automation
Learn what may be reused before deciding to replace equipment.
You are connecting the subsystems described in “Upgrading an Existing Machine With Sensors and Automation” and need their mechanical, electrical and control interfaces to work together.
Learn how to assess a machine retrofit, decide what may be retained, choose useful measurements and add automation without assuming that every old machine should be connected or controlled remotely.
- Select or check first
- Define the required outcome, operating conditions and exact component or system boundary before choosing a part or method.
- Controlling assumption
- Requirements, exclusions, evidence, responsibilities, acceptance criteria and change control are explicitly agreed.
- Top risk
- A modification can change the machine risk. Adding a sensor is not automatically harmless. A new automatic restart, remote command, higher speed or altered sequence can create different exposure and failure modes.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Upgrading an Existing Machine With Sensors and Automation”
Engineering-project basics
A build becomes controllable when the need, assumptions, interfaces, evidence and ownership are written before hardware choices become difficult to reverse.
- Requirement
- A requirement states a necessary, testable outcome or constraint. A preferred solution is not automatically a requirement.
- Assumption
- An assumption is treated as true for a decision but still needs an owner, evidence and a plan for what happens if it is wrong.
- Verification and validation
- Verification asks whether the design meets its specified requirements. Validation asks whether the delivered result solves the user’s real need in its intended setting.
- Prototype and production release
- A prototype answers selected questions. Production release additionally needs controlled parts, repeatable assembly, acceptance evidence, service information and change control.
- Scope and change control
- Scope defines included work, deliverables, interfaces and exclusions. Change control records why an approved baseline changes and what cost, schedule or risk follows.
How to use this article: For every decision, record the owner, evidence, acceptance criterion and condition that would force the decision to be reopened.
On this page
Retrofitting can be sensible when a machine still performs its core mechanical job but lacks measurements, records or coordinated control. It can also be a poor investment when the structure is worn, documentation is missing, spare parts are unavailable or the change creates unacceptable safety and cybersecurity risk. The decision starts with evidence about the existing asset—not with a shopping list of sensors.
Begin with the operational outcome

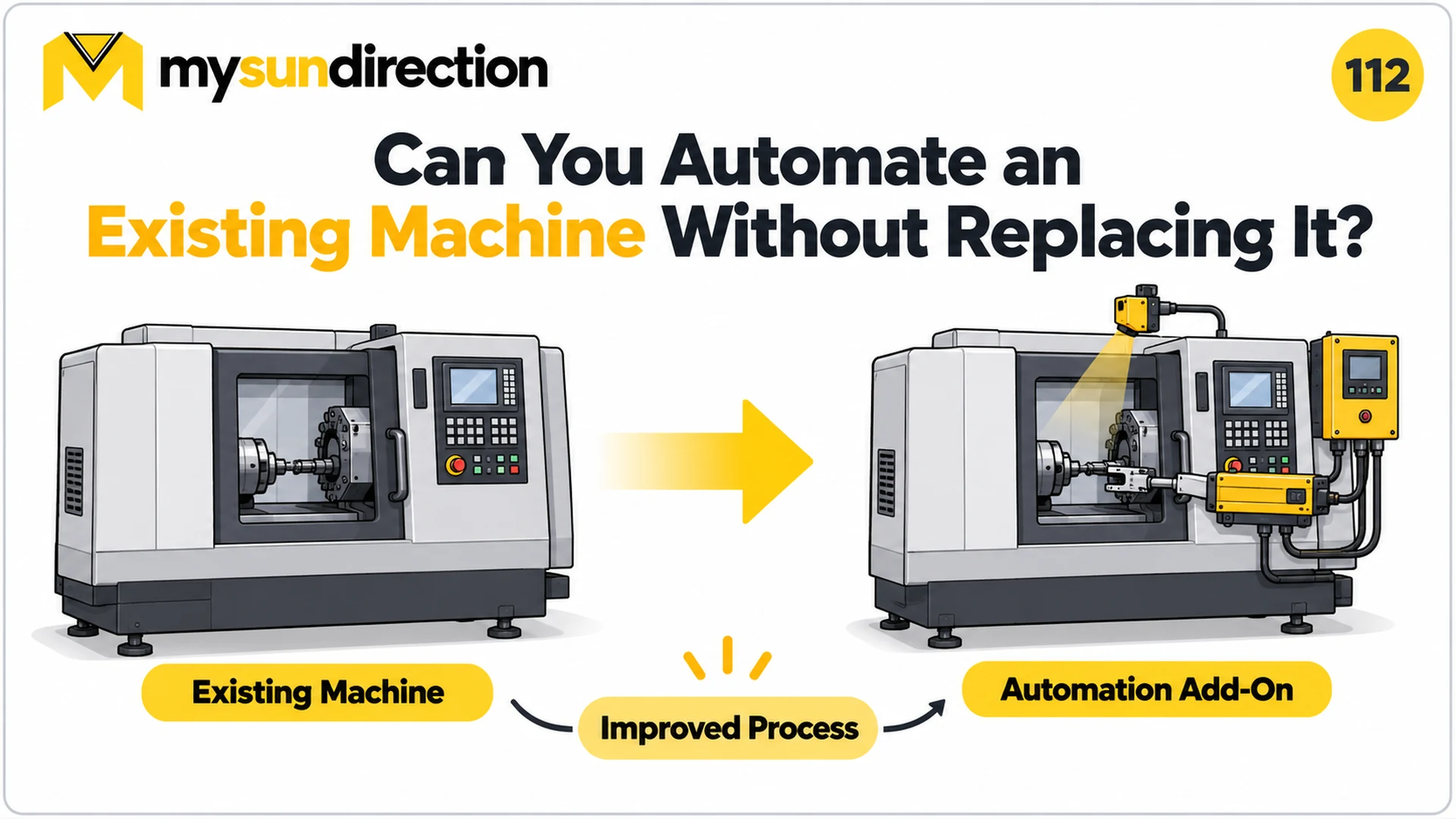

Diagram description
The illustration shows a conceptual retrofit; it does not prove that the pictured machine, controller or guarding can safely accept the change.
| Broad request | Useful engineering question | Possible evidence |
|---|---|---|
| Reduce downtime | Which failure or delay should become visible earlier? | Alarm history, stoppage categories and maintenance records |
| Improve quality | Which process variable correlates with the defect? | Part measurements, cycle conditions and traceability data |
| Increase output | Where is the actual constraint in the cycle? | Time study, queue observations and machine-state logging |
| Monitor remotely | Who needs which information, and what action follows? | User roles, response procedure and communications availability |
| Automate an operation | What state, interlock and safe failure behavior are required? | Sequence, hazard review and acceptance criteria |
A useful first survey records the machine identity, duty cycle, utilities, control hardware, electrical drawings, software backups, communications, guarding, safety functions, failure history and physical condition. It should also identify who owns the machine and software, who may authorize changes, and whether the original manufacturer still supports the equipment. Photographs and nameplates help, but they do not replace measurements or verified schematics.
Draw a deliberate reuse boundary
| Element | Check before retaining | Typical decision |
|---|---|---|
| Frame and mechanism | Wear, alignment, stiffness, load and remaining life | Retain, overhaul or replace |
| Motors and drives | Ratings, insulation, feedback, braking and interface compatibility | Reuse with limits or replace as a matched set |
| Controller and I/O | Capacity, lifecycle status, backups, diagnostics and supported protocols | Extend, isolate through a gateway or migrate |
| Safety functions | Hazards, architecture, diagnostic coverage and validation evidence | Revalidate or redesign; never presume legacy adequacy |
| Wiring and enclosure | Condition, separation, protection, heat and spare capacity | Modify under documented design or renew |
| Operator interface | Required states, alarms, permissions and usability | Retain selected controls or replace coherently |
A sensor becomes useful only inside an observation chain

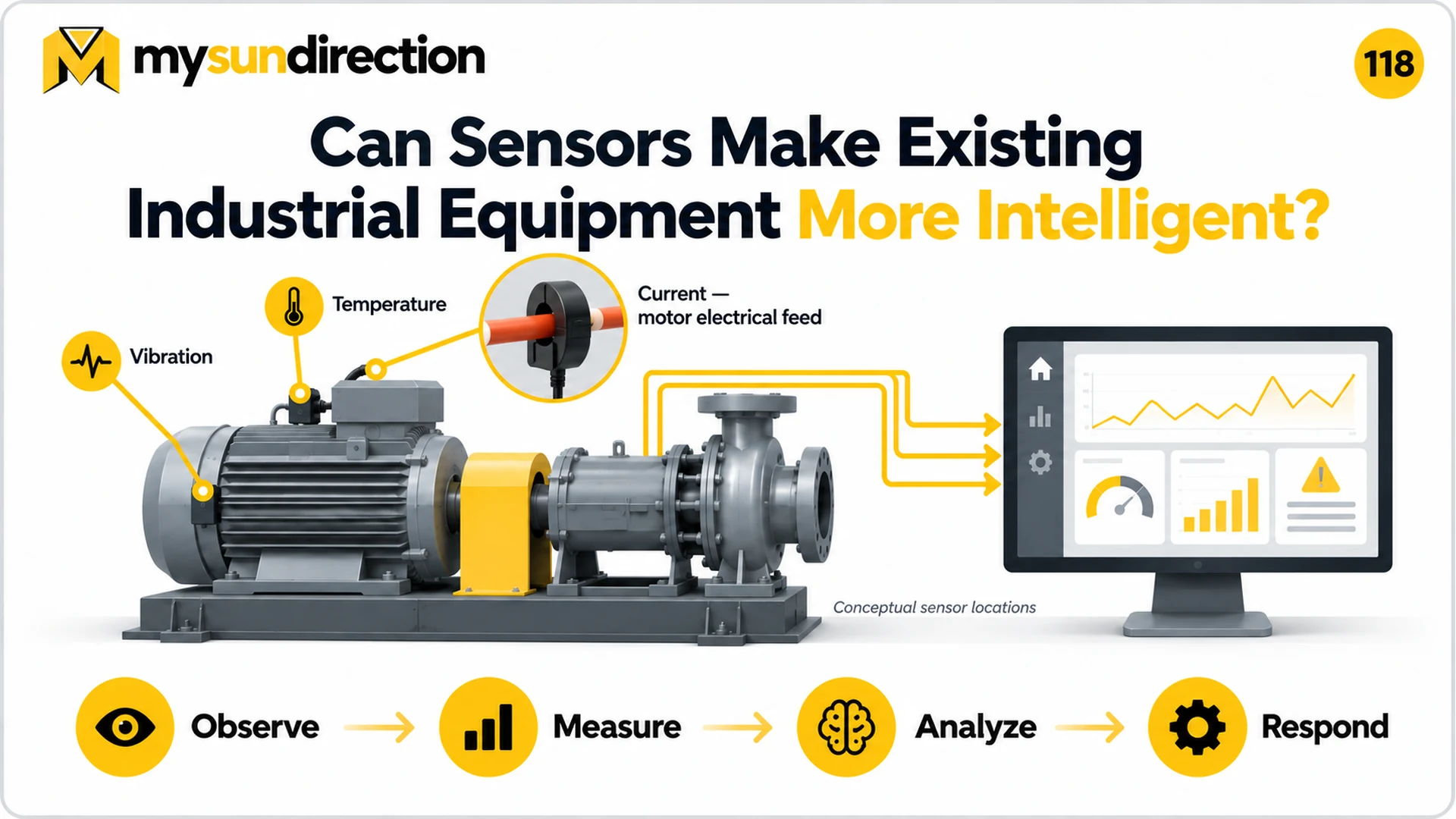

Diagram description
The sensor positions and dashboard are illustrative. Actual transducer type, mounting, bandwidth and alarm limits depend on the machine and failure mode.
| Link | Question | Failure to avoid |
|---|---|---|
| Phenomenon | What physical change precedes the event of interest? | Measuring a convenient variable with no proven relationship |
| Transducer | Can it measure the required range and dynamics in this environment? | Saturation, poor mounting or unsuitable ingress rating |
| Acquisition | Are sampling, timestamps and units controlled? | Aliasing, missing context or incomparable channels |
| Interpretation | What baseline, rule or model separates normal variation from concern? | Arbitrary thresholds and nuisance alarms |
| Response | Who or what acts, within what time, and with what authority? | A dashboard that nobody owns |
| Learning | Will outcomes be recorded to improve the rule? | Repeated alarms without confirmation of cause |
Temperature, vibration and motor current can all be valuable, but none is a universal health score. A vibration measurement needs a defined location, mounting method, bandwidth and operating state. Current may reveal load or electrical changes, yet the same current can occur under different mechanical conditions. Trend data is strongest when it is synchronized with speed, product, mode and maintenance events and compared with a verified baseline.
Stage the change and preserve a way back
| Stage | Purpose | Exit evidence |
|---|---|---|
| Read-only observation | Confirm signals and operating context | Stable, timestamped data with known units |
| Advisory alarms | Test whether information supports decisions | Reviewed alarm precision and response ownership |
| Supervised action | Let an operator approve bounded changes | Documented permissions, interlocks and recovery |
| Automatic control | Close the loop where justified | Risk assessment, tested failure response and acceptance results |
| Sustained operation | Keep the retrofit supportable | Backups, change records, spares, training and cybersecurity maintenance |
A retrofit that can command motion needs the same clarity about state and feedback introduced in Open-Loop Commands Versus Real Feedback. When commercial uncertainty is still high, the next step is a bounded discovery and feasibility study rather than an undocumented trial on production equipment.
Selection boundary and evidence to keep with the decision
Treat “Upgrading an Existing Machine With Sensors and Automation” as a selection problem, not only a definition. Record the required result, alternatives considered, the controlling assumption and the condition that would change the choice.
Keep evidence proportional to consequence: Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test. Revisit the decision when the load, environment, duty, interface, regulation or maintenance plan changes.
