A modern machine is not a mechanical assembly with electronics and software added at the end. Its behavior emerges from physical loads, energy conversion, sensors, power electronics, logic, communications and human decisions acting together. Integration succeeds when those connections are explicit: what crosses each boundary, under which conditions, at what timing, and how a failure becomes safe and diagnosable.
Energy conversion works in both directions
Diagram description

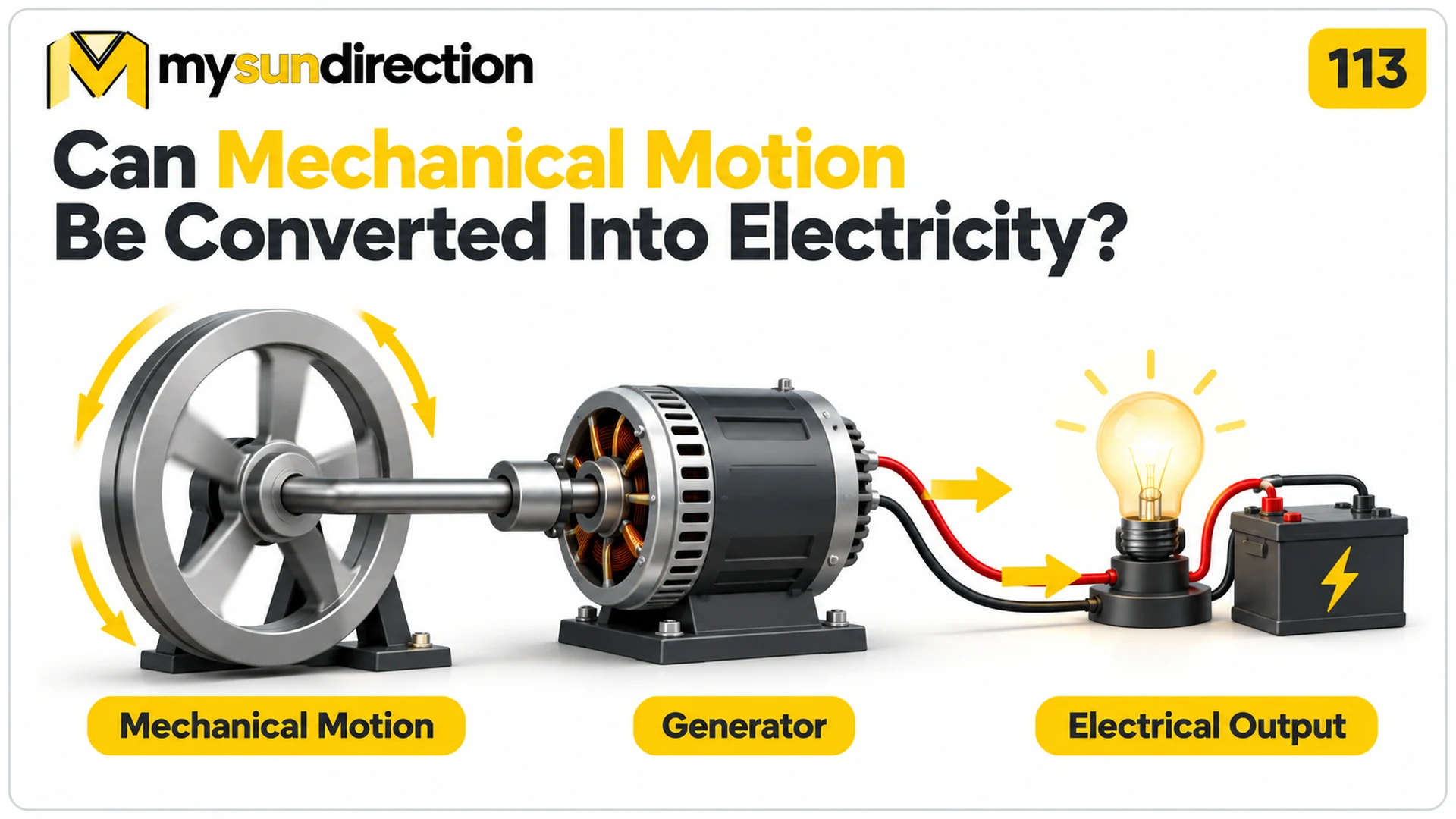

The lamp and battery are illustrative; a real generating system needs compatible conversion, control and protective equipment.
Diagram description

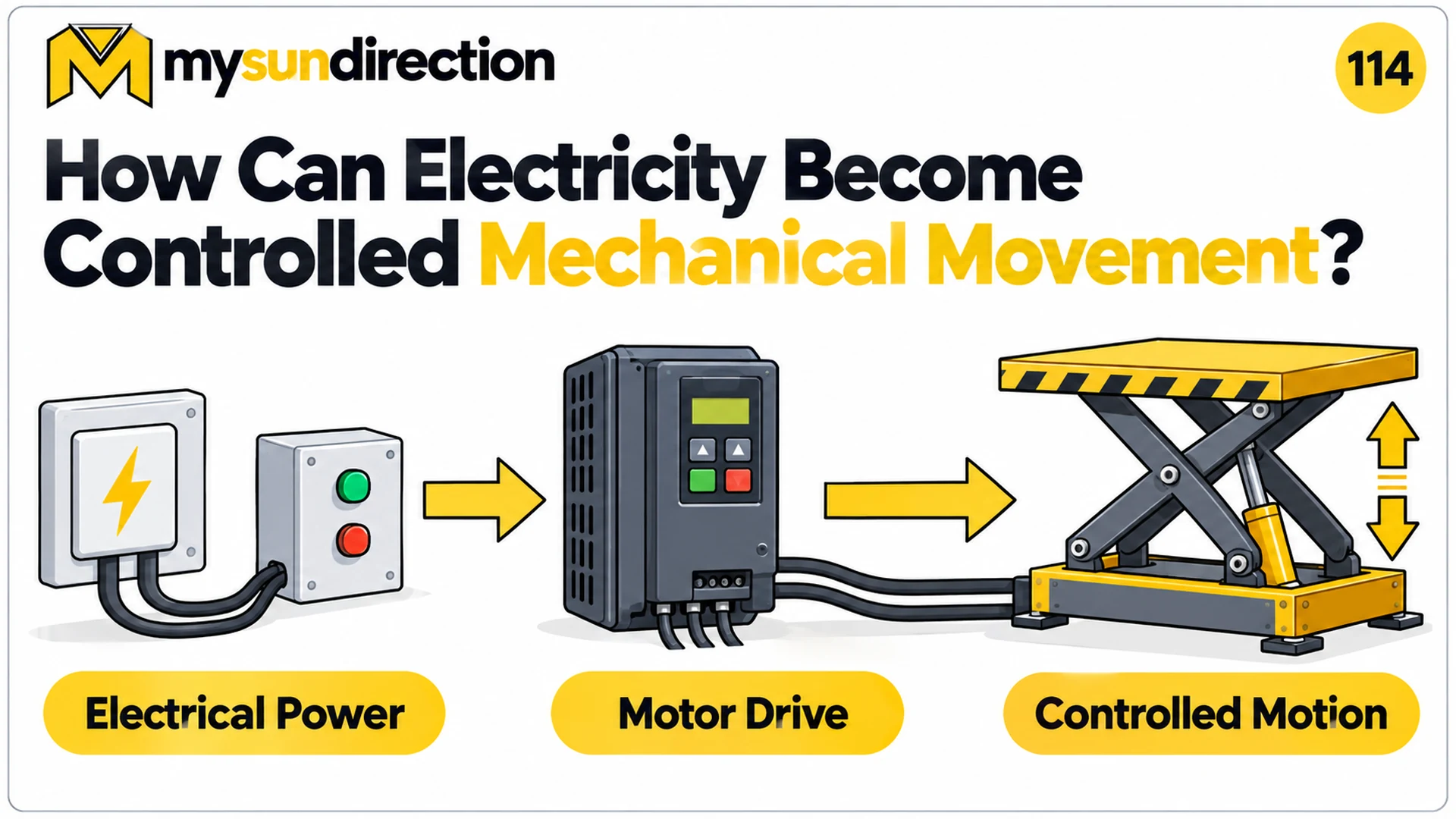

The depicted chain is conceptual and omits detailed wiring, braking, sensing and safety functions.
| Boundary | Variables that cross it | Integration questions |
|---|---|---|
| Mechanism ↔ motor | Torque, speed, inertia, backlash and shock | Can the actuator start, stop and hold the real load? |
| Motor ↔ drive | Current, voltage, commutation, thermal state and feedback | Are ratings, feedback type and protection compatible? |
| Drive ↔ controller | Setpoint, enable, status, fault and timing | What state permits motion, and what confirms it? |
| Machine ↔ supply | Power, harmonics, regeneration and protective current | What happens during start, braking and loss of supply? |
| Machine ↔ environment | Heat, vibration, ingress, noise and forces | Do enclosure, cooling and structure remain within limits? |
Information must describe the same physical state
Diagram description

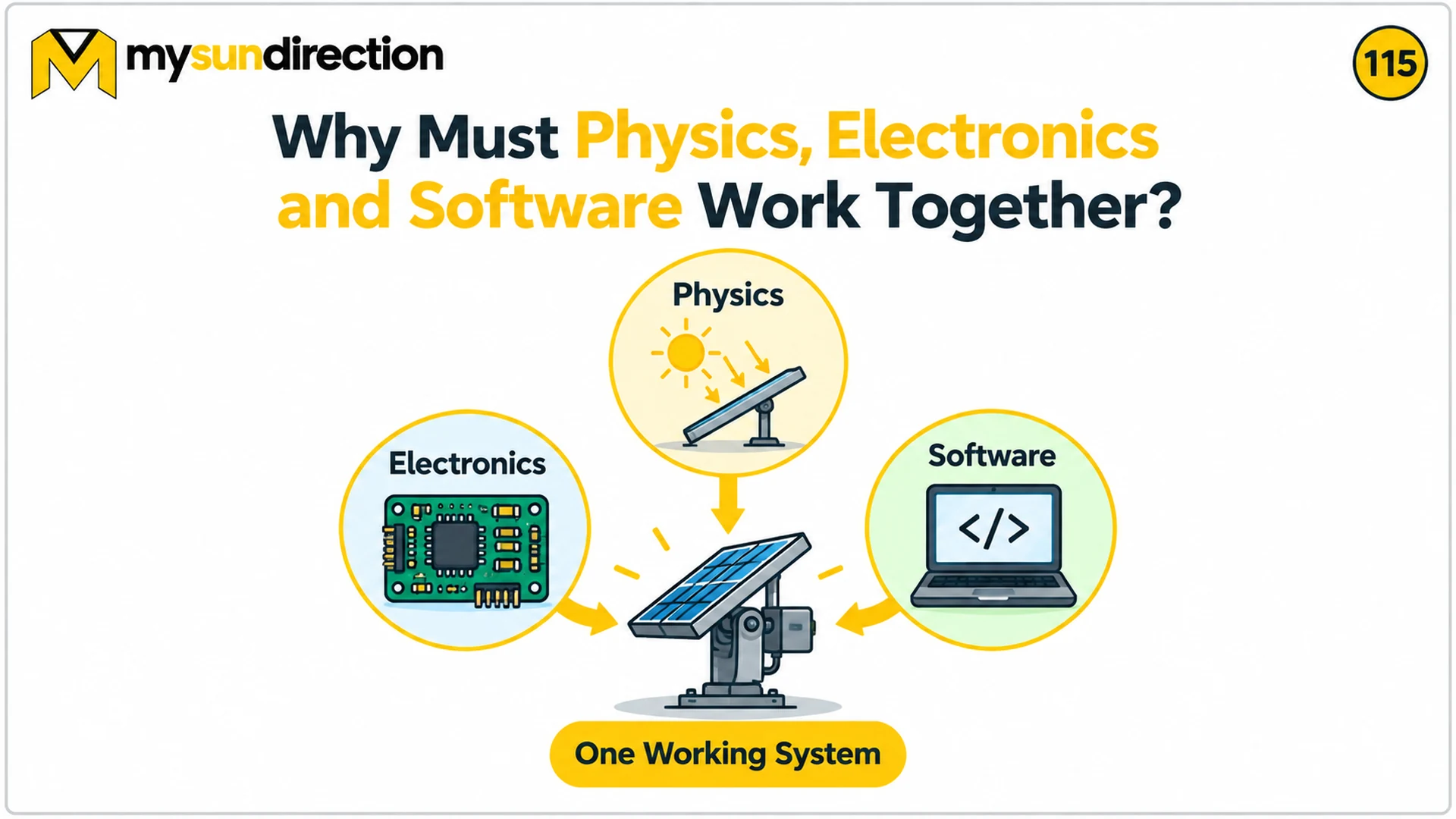

The three circles represent coupled disciplines rather than independent project phases.
Suppose software requests a 20-degree move. The number is incomplete until the interface defines the reference frame, sign, units, allowed range, accuracy, speed, timeout and behavior when position is unknown. The controller also needs evidence: an encoder count, limit input or other measurement with a known relationship to physical position. A message that arrived successfully is not proof that the mechanism moved.
| Contract part | Example question | Reliability consequence |
|---|---|---|
| Meaning | Does zero mean home, level or power-on location? | Two correct components can command the wrong motion |
| Units and range | Are values degrees, radians, counts or millimetres? | Scaling faults may exceed travel or load |
| Timing | How old may a sensor value be? | Stale data can destabilize or mis-sequence control |
| Quality | How are invalid, uncalibrated or estimated values marked? | Software may trust a plausible but unusable number |
| State | Which modes allow the command? | A maintenance or fault state may accept unintended motion |
| Fault response | Who detects loss, and what safe response follows? | Components may wait for one another indefinitely |
Full-stack means connected competence, not one person knowing everything
Diagram description

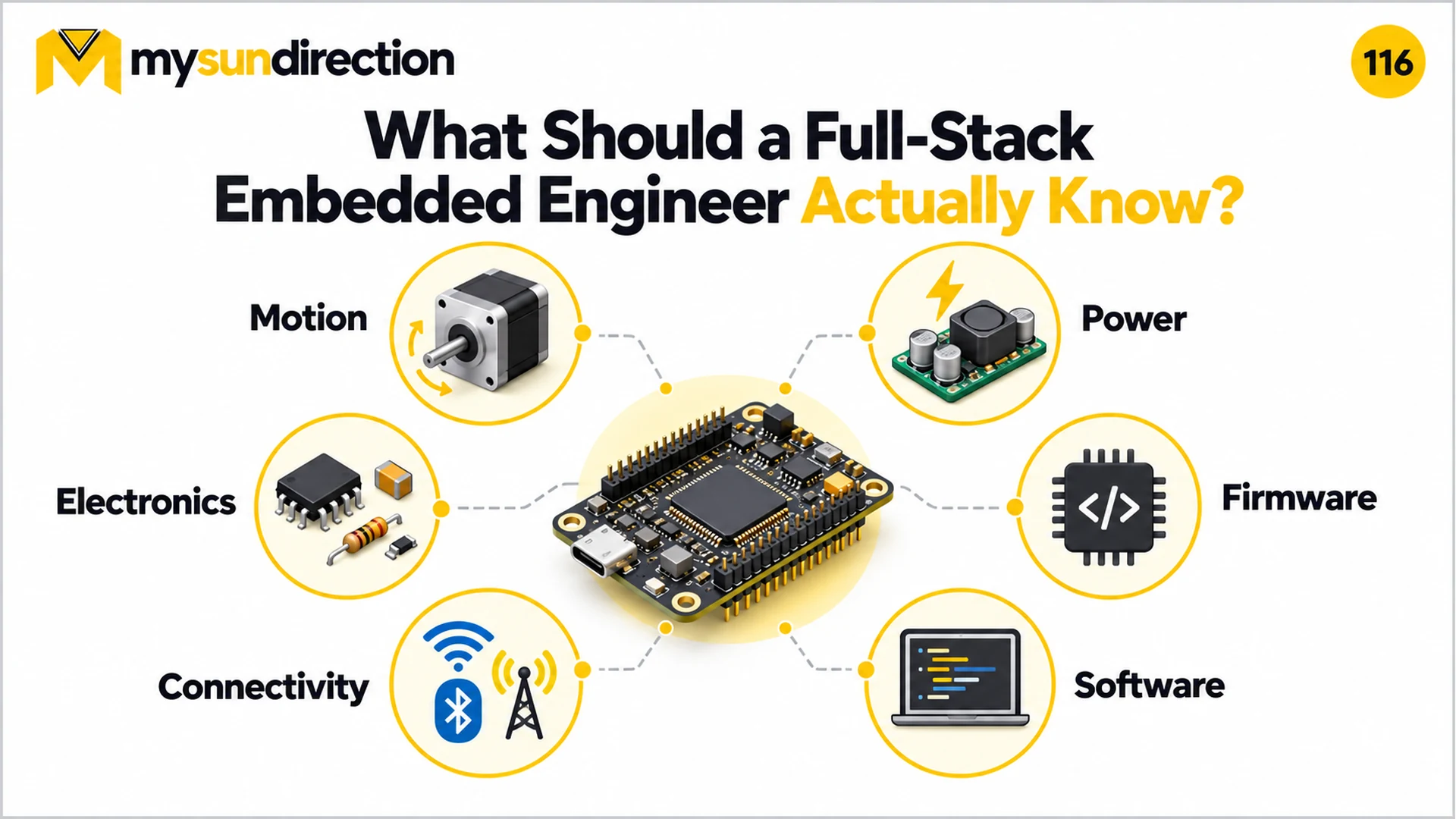

The skill map is illustrative; project scope, safety and complexity determine which specialists are required.
| Artifact | Connects | What it prevents |
|---|---|---|
| Operating concept | User, process and all disciplines | Building the wrong behavior efficiently |
| System requirements | Need, design and acceptance | Unmeasurable expectations and late disagreement |
| Interface definition | Mechanical, electrical, controls and software | Hidden unit, timing and state assumptions |
| State and sequence model | Software, operator interface and actuators | Conflicting modes and incomplete recovery |
| Hazard and failure analysis | Design, safety and maintenance | Single faults with unexpected system effects |
| Verification matrix | Each requirement and its evidence | A successful demo being mistaken for complete acceptance |
| Configuration record | Drawings, code, parameters and installed machine | Testing one version and delivering another |
Integrate in observable increments
Bench-test sensing and outputs, then verify individual axes at bounded energy, then sequences, then representative load and environmental cases. At every step, log commanded state, measured state, faults and configuration. This does not replace formal verification; it makes integration failures smaller and easier to locate. The final tests must trace to agreed requirements and include recovery, interruption and credible fault cases—not only the happy path.
For the control distinction between an issued instruction and observed motion, continue with Open-Loop Commands Versus Real Feedback. The next Business & Custom Engineering article explains why an integrated demonstration is still not a production acceptance result.
