From Idea to Practical Engineering
Prototype Proof Versus Production Acceptance
Understand why a working demo and accepted production machine are different.
You must choose between real alternatives covered by “Prototype Proof Versus Production Acceptance” for a defined machine, circuit or installation.
Separate proof of concept, engineering validation and production acceptance, then connect reliability, tolerances, safety, maintainability and measured acceptance evidence back to requirements agreed at the start.
- Select or check first
- Define the required outcome, operating conditions and exact component or system boundary before choosing a part or method.
- Controlling assumption
- Requirements, exclusions, evidence, responsibilities, acceptance criteria and change control are explicitly agreed.
- Top risk
- Factory acceptance is not always site acceptance. Utilities, foundations, network conditions, product variation, operator interaction and upstream or downstream equipment may differ at site.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “Prototype Proof Versus Production Acceptance”
Engineering-project basics
A build becomes controllable when the need, assumptions, interfaces, evidence and ownership are written before hardware choices become difficult to reverse.
- Requirement
- A requirement states a necessary, testable outcome or constraint. A preferred solution is not automatically a requirement.
- Assumption
- An assumption is treated as true for a decision but still needs an owner, evidence and a plan for what happens if it is wrong.
- Verification and validation
- Verification asks whether the design meets its specified requirements. Validation asks whether the delivered result solves the user’s real need in its intended setting.
- Prototype and production release
- A prototype answers selected questions. Production release additionally needs controlled parts, repeatable assembly, acceptance evidence, service information and change control.
- Scope and change control
- Scope defines included work, deliverables, interfaces and exclusions. Change control records why an approved baseline changes and what cost, schedule or risk follows.
How to use this article: For every decision, record the owner, evidence, acceptance criterion and condition that would force the decision to be reopened.
On this page
A prototype answers a selected uncertainty: can a sensing method detect the feature, can the mechanism move the load, or can a control idea work under chosen conditions? Production acceptance asks a broader question: does the delivered configuration meet the agreed requirements safely, repeatedly and supportably in its intended environment? One successful cycle can be important evidence, but it is not the complete answer.

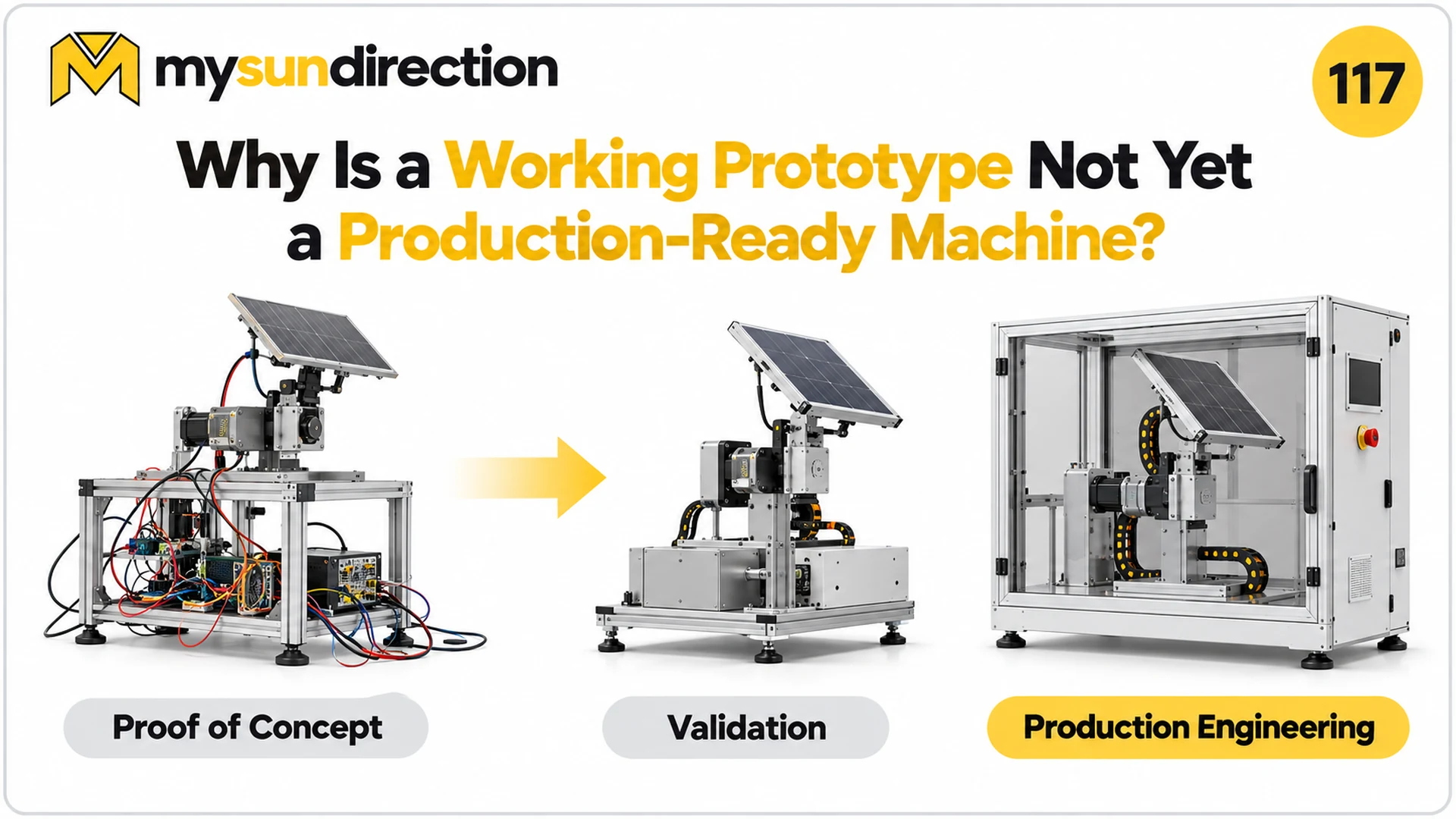

Name the maturity stage before interpreting the result
Diagram description
The three machines are illustrative maturity stages, not a mandatory linear process or certification claim.
| Stage | Primary question | Typical limitations | Useful decision |
|---|---|---|---|
| Proof of concept | Is the key physical or technical principle plausible? | Temporary hardware, narrow cases, manual support | Continue, change the concept or stop |
| Engineering prototype | Can integrated functions meet preliminary performance? | Limited duty, evolving interfaces and incomplete qualification | Resolve risks and freeze important architecture |
| Validation unit | Does representative equipment satisfy intended use and stakeholder need? | May still need production process and documentation closure | Authorize production engineering or redesign |
| Production machine | Does the delivered, controlled configuration meet acceptance requirements? | Only valid for the defined scope and conditions | Accept, conditionally accept or reject with recorded findings |
Verification and validation are related but different. Verification asks whether specified requirements were met by inspection, analysis, demonstration or test. Validation asks whether the resulting system is suitable for the intended use and stakeholder expectations. A machine may pass a dimensional requirement yet be awkward to maintain; it may satisfy a demonstration script but fail to recover from a routine interruption. Both views belong in delivery planning.
Acceptance quality is created when requirements are written
| Weak expectation | Questions to resolve | Evidence-ready form |
|---|---|---|
| Fast | Cycle measured from which event to which event, with what product? | Maximum cycle time under defined load, setup and exclusions |
| Accurate | Which point, reference, direction and distribution? | Tolerance with measurement method, sample count and environment |
| Reliable | Over what duty, duration and failure definition? | Agreed endurance profile and permitted interruptions |
| Safe | Which hazards, users, modes and applicable rules? | Documented risk reduction and validation of safety-related functions |
| Easy to use | For which trained role and tasks? | Observed task criteria, labels, alarms and recovery steps |
| Remote capable | Read-only or control; who may connect and when? | Defined roles, authentication, logging, local authority and disconnect behavior |
Tolerance is not just a number on a drawing. Acceptance must state the reference, measurement uncertainty, instrument status, sample and environmental condition. Reliability evidence likewise needs an operating profile and a failure definition. If those details are invented after the machine is built, the test becomes a negotiation instead of a neutral comparison.

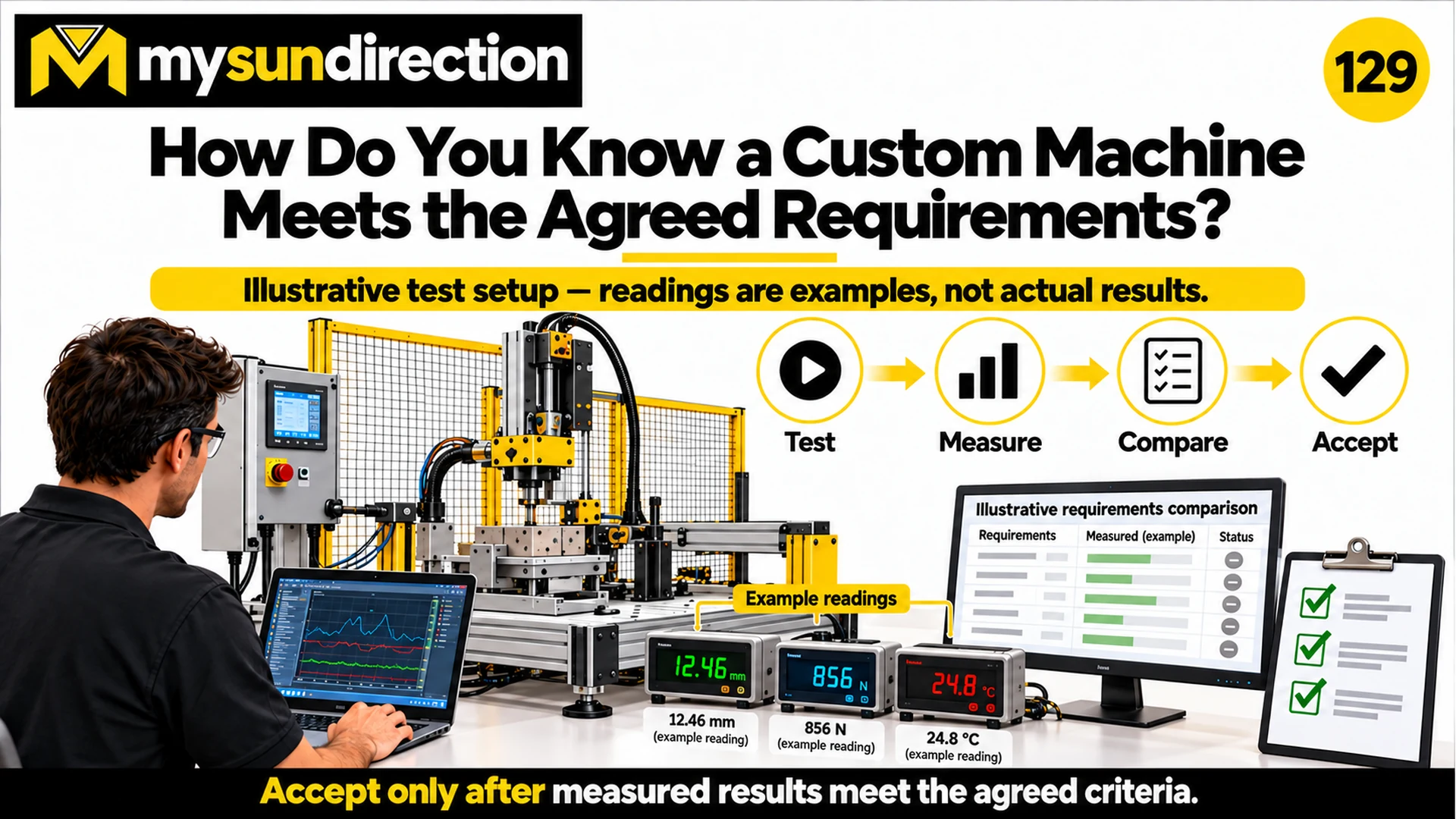

Acceptance is a traceable evidence chain
Diagram description
The image explicitly presents illustrative readings; a real test requires identified instruments, methods, configurations and signed records.
| Record item | Why it matters |
|---|---|
| Requirement identifier and revision | Links the result to the controlled agreement |
| Test method and prerequisites | Makes the sequence and conditions repeatable |
| Machine hardware, software and parameters | Identifies exactly what was tested |
| Instrument identity and calibration status | Supports confidence in measurements |
| Raw observations and calculated result | Separates evidence from interpretation |
| Pass/fail rule and authorized deviation | Prevents the threshold moving after the test |
| Witness, date and unresolved actions | Makes responsibility and closure visible |
Production readiness includes the life after handover
| Area | Questions before acceptance |
|---|---|
| Safety | Are hazards, protective measures, residual risk and validation records complete? |
| Performance | Were load, rate, tolerance and endurance tested over representative cases? |
| Recovery | Can power loss, jams, sensor faults and interrupted cycles be handled predictably? |
| Maintainability | Are access, isolation, diagnostics, wear parts and service procedures usable? |
| Configuration | Do delivered drawings, bills, backups and software match the accepted machine? |
| People | Are roles, training, operating instructions and escalation paths established? |
| Support | Are warranty boundary, spares, response and change process understood? |
A professional acceptance outcome may be pass, fail, or conditional acceptance with a precisely bounded punch list, owner and date. Commercial pressure should not convert an unverified safety or essential-performance requirement into an informal promise. Conversely, cosmetic or low-risk open items should not be confused with failure of the whole system when the agreement provides a controlled closure route.
Selection boundary and evidence to keep with the decision
Treat “Prototype Proof Versus Production Acceptance” as a selection problem, not only a definition. Record the required result, alternatives considered, the controlling assumption and the condition that would change the choice.
Keep evidence proportional to consequence: Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test. Revisit the decision when the load, environment, duty, interface, regulation or maintenance plan changes.
E8 · Educational scene
Explore the decision in three states
Select a state to compare the starting condition, the important change and the evidence needed before acting. The same meaning remains in the static list.
Start
Separate proof of concept, engineering validation and production acceptance, then connect reliability, tolerances, safety, maintainability and measured acceptance evidence back to requirements agreed at the start.
What changes
Factory acceptance is not always site acceptance. Utilities, foundations, network conditions, product variation, operator interaction and upstream or downstream equipment may differ at site.
Verify
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
- Separate proof of concept, engineering validation and production acceptance, then connect reliability, tolerances, safety, maintainability and measured acceptance evidence back to requirements agreed at the start.
- Factory acceptance is not always site acceptance. Utilities, foundations, network conditions, product variation, operator interaction and upstream or downstream equipment may differ at site.
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for Prototype Proof Versus Production Acceptance?
Define the required outcome, operating conditions and exact component or system boundary before choosing a part or method.
Which assumption can change the conclusion?
Requirements, exclusions, evidence, responsibilities, acceptance criteria and change control are explicitly agreed.
What can go wrong if I copy the example directly?
Factory acceptance is not always site acceptance. Utilities, foundations, network conditions, product variation, operator interaction and upstream or downstream equipment may differ at site.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Sources and further reading
- NASA Systems Engineering Handbook: Appendix D, Requirements Verification MatrixNational Aeronautics and Space Administration · 2026-10-13Primary handbook material reviewed for requirement verification matrices, validation planning, methods and configuration of evidence.
- Safety of machinery — General principles for design — Risk assessment and risk reduction (ISO 12100:2010)International Organization for Standardization · 2026-10-13Official standard record reviewed for machinery life-cycle risk assessment, risk reduction, documentation and verification.
