From Idea to Practical Engineering
From Machine Idea to Clear Requirements
Turn a vague machine problem into a documented, testable set of needs.
You need to understand how “From Machine Idea to Clear Requirements” reached its present form so that older terminology and current practice are not confused.
Convert a machine idea into measurable requirements by defining the problem, expected result, load, motion, interfaces, environment, safety, budget and acceptance evidence.
- Select or check first
- One requirement should express one obligation. Give each requirement a stable identifier, defined terms, units, tolerance, operating condition, rationale and proposed verification method. Keep open decisions visibly marked with an owner and due date; do not hide them inside words such as suitable, fast or robust.
- Controlling assumption
- Requirements, exclusions, evidence, responsibilities, acceptance criteria and change control are explicitly agreed.
- Top risk
- Requirements do not replace risk assessment. Machine safety depends on the actual hazards, users, lifecycle and applicable law and standards. Engage competent safety and regulatory professionals early. A customer request cannot waive legal duties, and a generic checklist cannot select required protective performance.
- Proof
- Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Start with the basics Optional foundation before “From Machine Idea to Clear Requirements”
Engineering-project basics
A build becomes controllable when the need, assumptions, interfaces, evidence and ownership are written before hardware choices become difficult to reverse.
- Requirement
- A requirement states a necessary, testable outcome or constraint. A preferred solution is not automatically a requirement.
- Assumption
- An assumption is treated as true for a decision but still needs an owner, evidence and a plan for what happens if it is wrong.
- Verification and validation
- Verification asks whether the design meets its specified requirements. Validation asks whether the delivered result solves the user’s real need in its intended setting.
- Prototype and production release
- A prototype answers selected questions. Production release additionally needs controlled parts, repeatable assembly, acceptance evidence, service information and change control.
- Scope and change control
- Scope defines included work, deliverables, interfaces and exclusions. Change control records why an approved baseline changes and what cost, schedule or risk follows.
How to use this article: For every decision, record the owner, evidence, acceptance criterion and condition that would force the decision to be reopened.
On this page
A machine idea usually begins as a desired outcome: move boxes faster, orient a panel, reduce manual handling or make a process repeatable. Engineering cannot size mechanisms, power, controls or safeguards from that sentence alone. The first deliverable is not a detailed design; it is a shared, testable description of the problem, operating context and acceptable result.
Requirements form the bridge from idea to concept

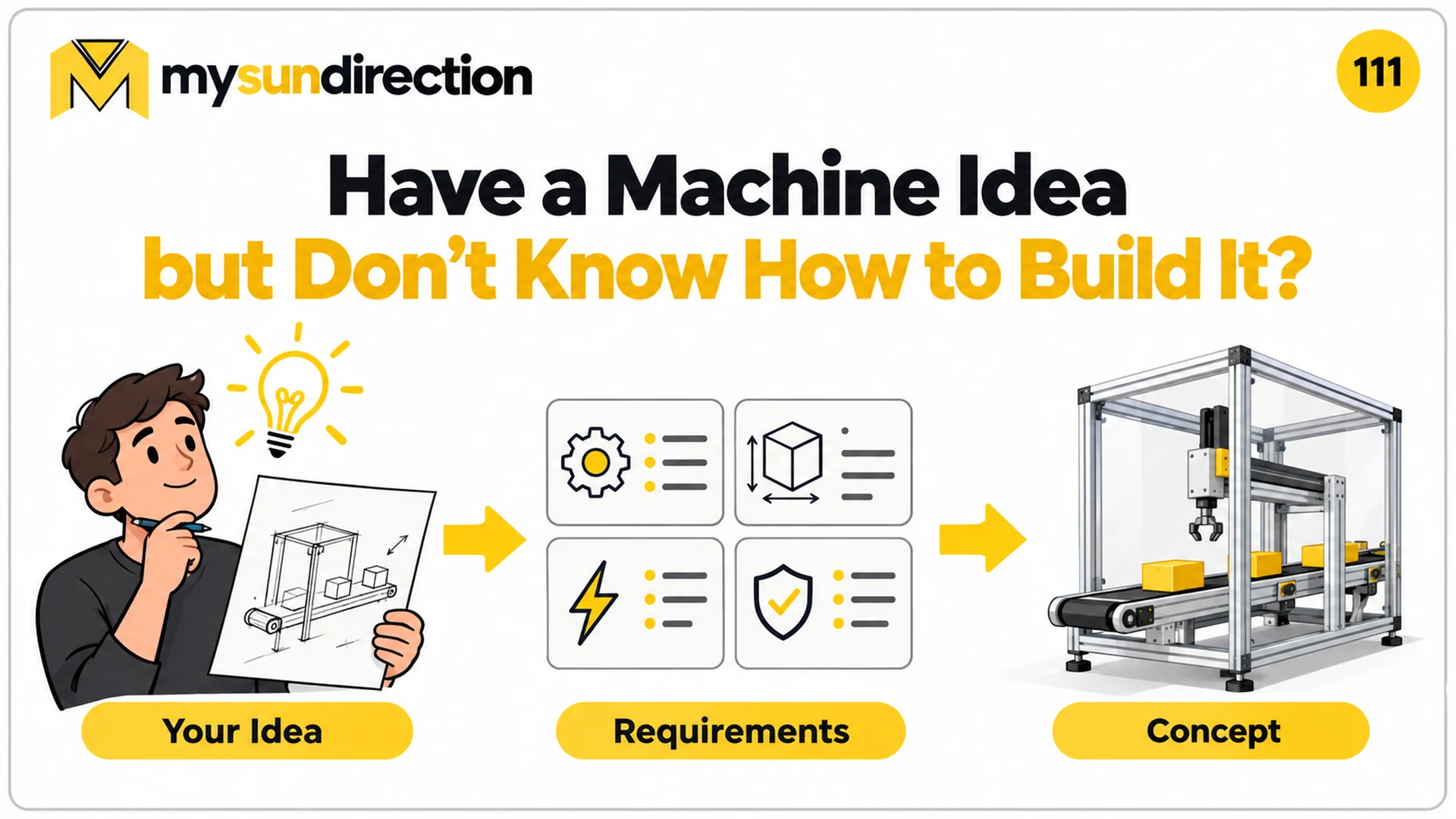

Diagram description
The illustration presents idea, requirements and concept as separate stages; it does not promise that every idea is feasible or that the first concept is final.
A need describes the stakeholder outcome. A requirement states what the system must do or constrain in a form that can be checked. A concept describes one possible way to satisfy those requirements. Keeping the three separate matters: writing “use a servo” too early selects an implementation before required travel, load, accuracy, environment and duty have established whether a servo is appropriate.
| Vague statement | Questions that expose the need | Example testable direction |
|---|---|---|
| Move boxes quickly | Which boxes, how far, at what throughput and spacing? | Transport defined box sizes over the defined path at an agreed sustained rate |
| Position accurately | Accuracy, repeatability or both? At the load or motor? Under what force and temperature? | Place the load within a stated tolerance using a stated measurement method |
| Make it safe | Who interacts, what hazards exist and which jurisdiction applies? | Document the risk assessment and required protective functions with validation evidence |
| Easy to maintain | Which tasks, skill level, access time and spare strategy? | Provide defined access and replacement targets for named service items |
| Low cost | Capital limit, operating cost, service life and excluded costs? | State the budget basis, included deliverables and lifecycle assumptions |
A useful enquiry describes the real operating system

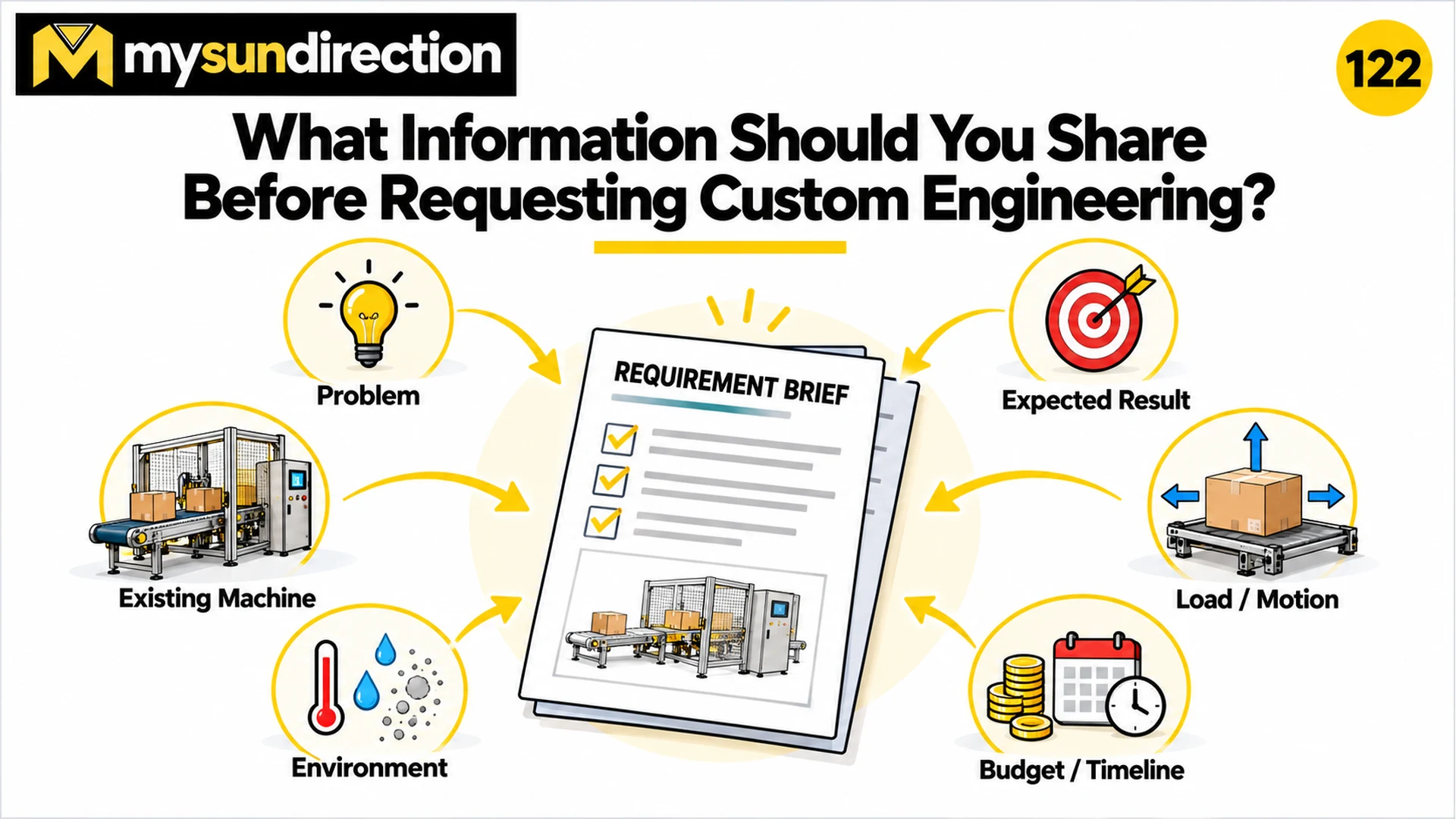

Diagram description
The diagram groups common enquiry inputs around a requirement brief and is a starting checklist rather than a complete safety or regulatory specification.
| Area | Questions to answer | Evidence to attach |
|---|---|---|
| Problem and outcome | What happens now, what fails, and what measurable result matters? | Process map, defect or delay data, representative video |
| Product or load | Mass, dimensions, center of gravity, variability, fragility and surface? | Worst-case samples, drawings, measured range |
| Motion and rate | Travel, speed, acceleration, cycle time, dwell, orientation and simultaneous axes? | Timed operating sequence and coordinate sketch |
| Existing machine | Interfaces, available space, controls, utilities, drawings and permitted downtime? | Nameplates, electrical drawings, photos and measured envelope |
| Environment | Temperature, moisture, dust, cleaning, corrosion, vibration and indoor/outdoor exposure? | Site conditions and applicable ingress or material constraints |
| People and safety | Operators, maintainers, foreseeable access and stored-energy hazards? | Existing risk assessment, incident history and site standards |
| Success and acceptance | What will be measured, by whom, with what samples and for how long? | Draft acceptance test and pass/fail thresholds |
| Commercial limits | Budget basis, schedule driver, delivery site, training, spares and ownership expectations? | Target dates, inclusions, exclusions and decision owners |
Write performance before prescribing a mechanism
A practical requirement sentence
[System] shall [observable action] [measurable value and tolerance] [under stated conditions]
This is a writing pattern, not a mathematical law. Add a unique ID, rationale, source and verification method as attributes. Use shall only for agreed obligations; record goals and background facts separately.
- System
- the entity responsible for the required behavior
- conditions
- load, environment, operating mode and interfaces that bound the claim
Build the first requirement set
- Interview the people who operate, maintain, clean, supervise and pay for the process—not only the person requesting automation.
- Observe the current process and collect ranges and exceptions, including damaged product and recovery from jams.
- Draw the system boundary and list every material, energy, data and human interface crossing it.
- Convert needs into uniquely identified functional, performance, interface, environmental, safety and lifecycle requirements.
- Attach an intended verification method—test, inspection, analysis or demonstration—to every requirement.
- Review the set for conflicts, missing modes and unaffordable tolerances before comparing concepts.
| Method | Good fit | Example evidence |
|---|---|---|
| Test | Quantitative behavior under controlled conditions | Measured cycle time over a defined product sample |
| Inspection | Physical feature, label, material or documented configuration | Guard opening dimension and drawing revision |
| Analysis | Performance not reasonably exercised directly or requiring calculation | Structural margin with stated loads and model assumptions |
| Demonstration | Observable operation where precise instrumentation is not central | Trained operator completes a defined changeover sequence |
Priority and uncertainty keep scope honest
Not every desire can be a fixed requirement at the first meeting. Classify what is mandatory, what is a target and what remains to be resolved. Record why each limit matters: a ±0.1 mm tolerance can transform the mechanism, sensing, structure, calibration and cost compared with ±1 mm. The requirement owner should decide whether that difference creates business value; the designer should not silently assume it.
| Field | Purpose |
|---|---|
| Question or assumption | States exactly what is not yet established |
| Decision owner | Names who has authority to resolve it |
| Evidence needed | Identifies test, sample, supplier data or site measurement |
| Due date or project gate | Prevents late discovery after design commitment |
| Impact if wrong | Exposes safety, cost, performance and schedule consequences |
Know when the project is ready for concept work
Readiness review
- The problem and business outcome are agreed in plain language.
- Worst-case product, load, duty and environment are represented by evidence.
- System boundary and interfaces are documented.
- Safety and compliance work has owners and an initial plan.
- Requirements are measurable, non-conflicting and traceable to stakeholder needs.
- Acceptance methods and representative test samples are defined.
- Budget, schedule, deliverables, exclusions and unresolved decisions are visible.
Technical requirements become much clearer when the energy and motion chain is mapped. Follow Energy Through an Electrical System provides a reusable electrical-stage view, while Sizing a Motor and Screw as One System shows how load, motion and assumptions become engineering calculations.
Selection boundary and evidence to keep with the decision
Treat “From Machine Idea to Clear Requirements” as a selection problem, not only a definition. Record the required result, alternatives considered, the controlling assumption and the condition that would change the choice.
Keep evidence proportional to consequence: Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test. Revisit the decision when the load, environment, duty, interface, regulation or maintenance plan changes.
One-minute questions
Questions to answer before you apply this lesson
What should I select or check first for From Machine Idea to Clear Requirements?
One requirement should express one obligation. Give each requirement a stable identifier, defined terms, units, tolerance, operating condition, rationale and proposed verification method. Keep open decisions visibly marked with an owner and due date; do not hide them inside words such as suitable, fast or robust.
Which assumption can change the conclusion?
Requirements, exclusions, evidence, responsibilities, acceptance criteria and change control are explicitly agreed.
What can go wrong if I copy the example directly?
Requirements do not replace risk assessment. Machine safety depends on the actual hazards, users, lifecycle and applicable law and standards. Engage competent safety and regulatory professionals early. A customer request cannot waive legal duties, and a generic checklist cannot select required protective performance.
How do I verify the result in the real system?
Check the exact manufacturer data, units and limits, then verify the result by calculation, measurement or a controlled acceptance test.
Sources and further reading
- NASA Systems Engineering Handbook — Appendix C: How to Write a Good RequirementNational Aeronautics and Space Administration · 2026-10-13Authoritative handbook guidance reviewed for clear, feasible, unambiguous and verifiable requirements; unique identifiers; rationale; tolerances; interfaces and verification planning.
- NASA Systems Engineering Processes and Requirements NPR 7123.1CNational Aeronautics and Space Administration · 2026-10-13Official process requirements reviewed for transforming stakeholder expectations into quantitative, measurable, traceable technical requirements.
- Guide to Writing Requirements, Version 4International Council on Systems Engineering · 2026-10-13Professional society guide reviewed for measurable performance, avoidance of ambiguous qualitative terms, defined tolerances and verifiable requirement wording.
